Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Remove the cover from the underhood electrical center.

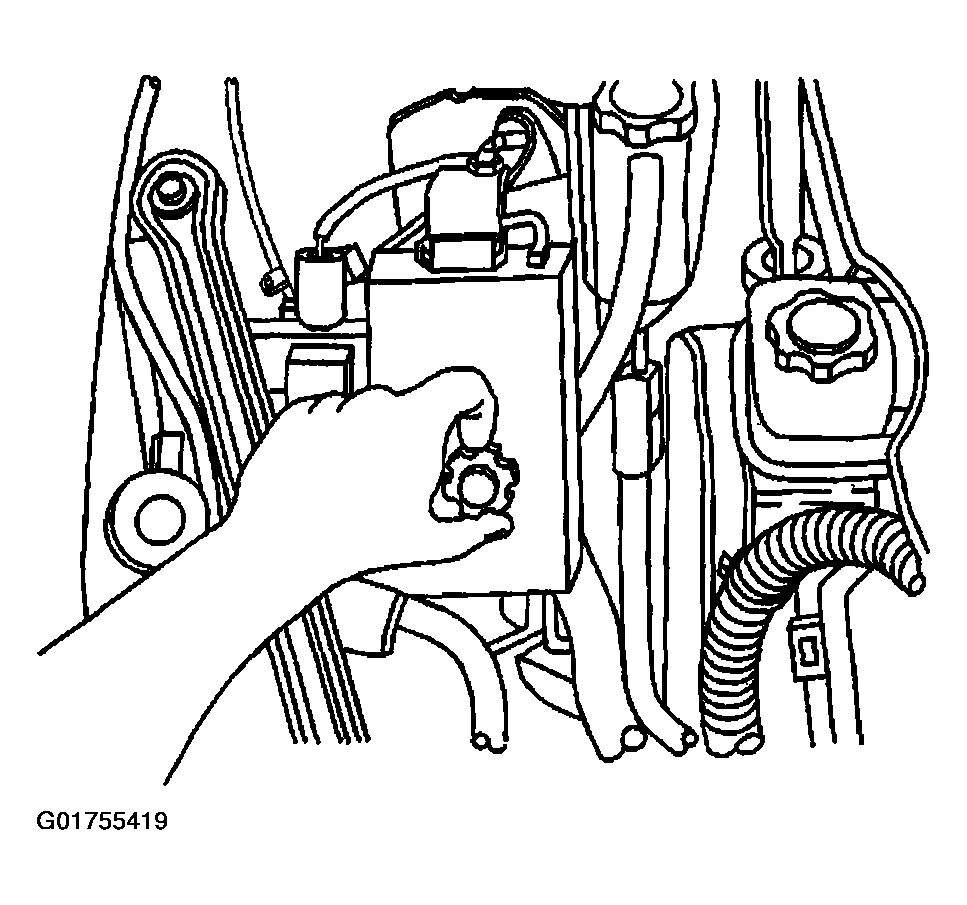

Fig 1: Identifying Underhood Electrical Center Cover

Courtesy of GENERAL MOTORS CORP.

Using J 43244, remove the horn relay (1) from the underhood electrical center.

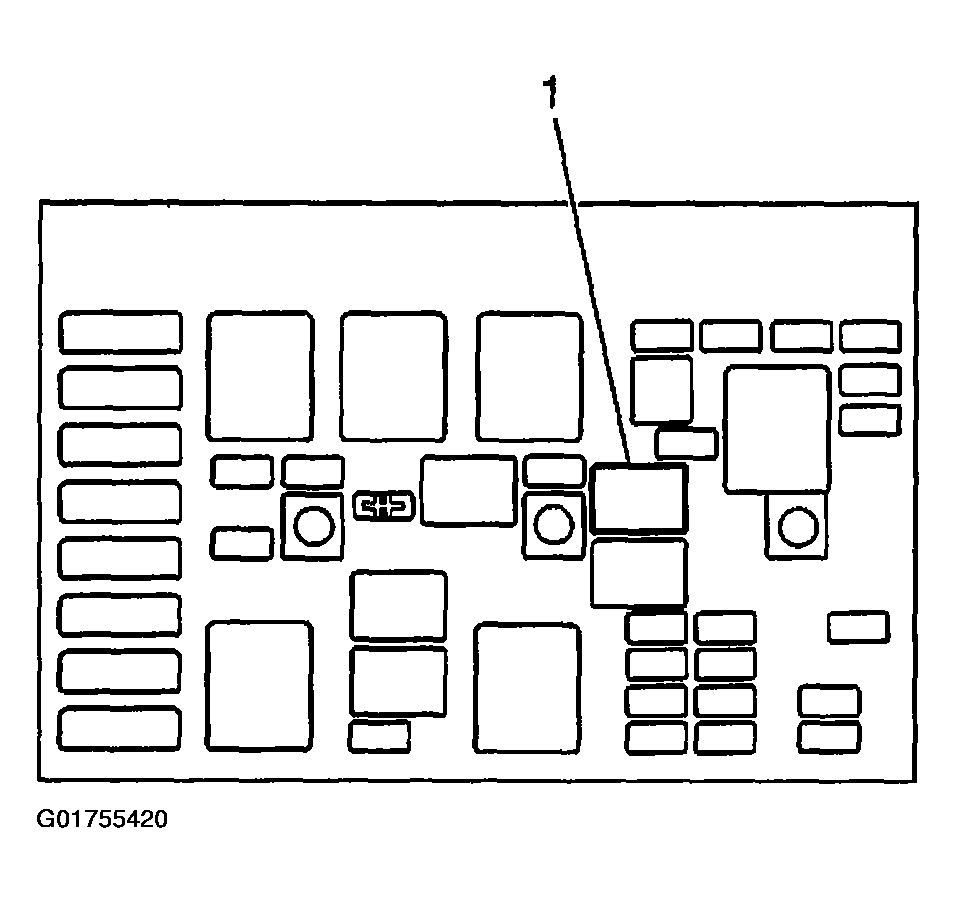

Fig 2: Identifying Horn Relay

Courtesy of GENERAL MOTORS CORP.
