Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rock the tilt lever back and forth in order to remove it from the steering column.

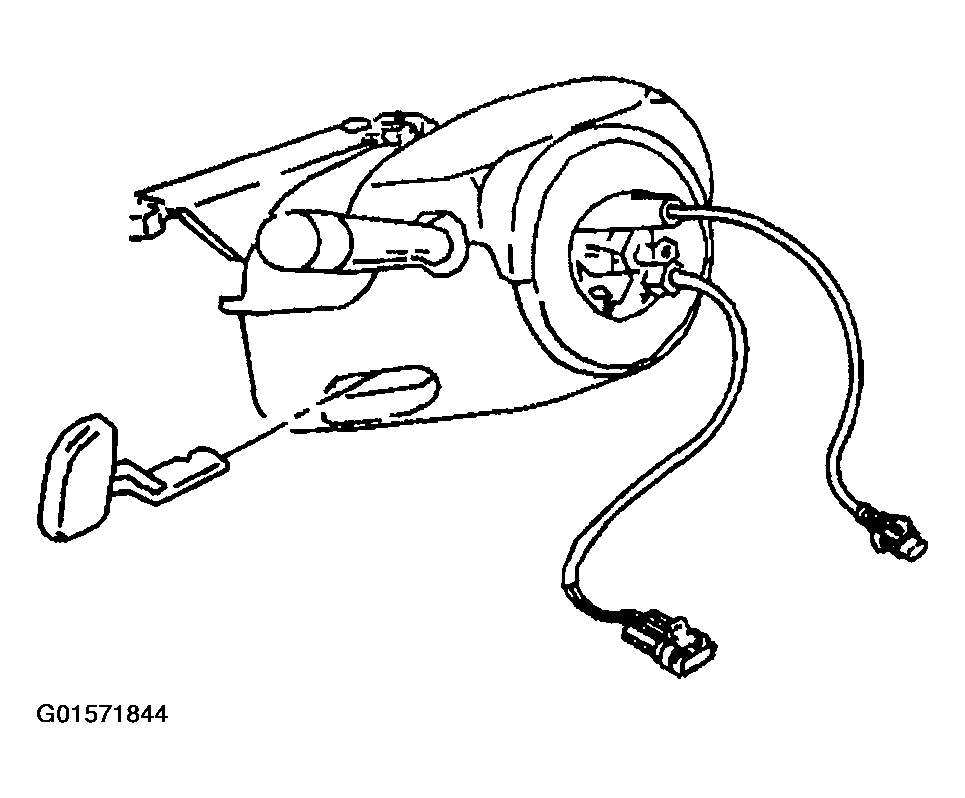

  2. Fig 1: Tilt Lever
    G01571844Courtesy of GENERAL MOTORS CORP.
  3. Pull the lever away from the steering column.
