Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the inflatable restraint steering wheel module. Refer to AIR BAG MODULES .
  3. Remove the steering wheel. Refer to Steering Wheel Replacement .
  4. Remove the steering wheel controls wire harness from the retainers in the steering wheel aluminum insert and plastic back shroud.

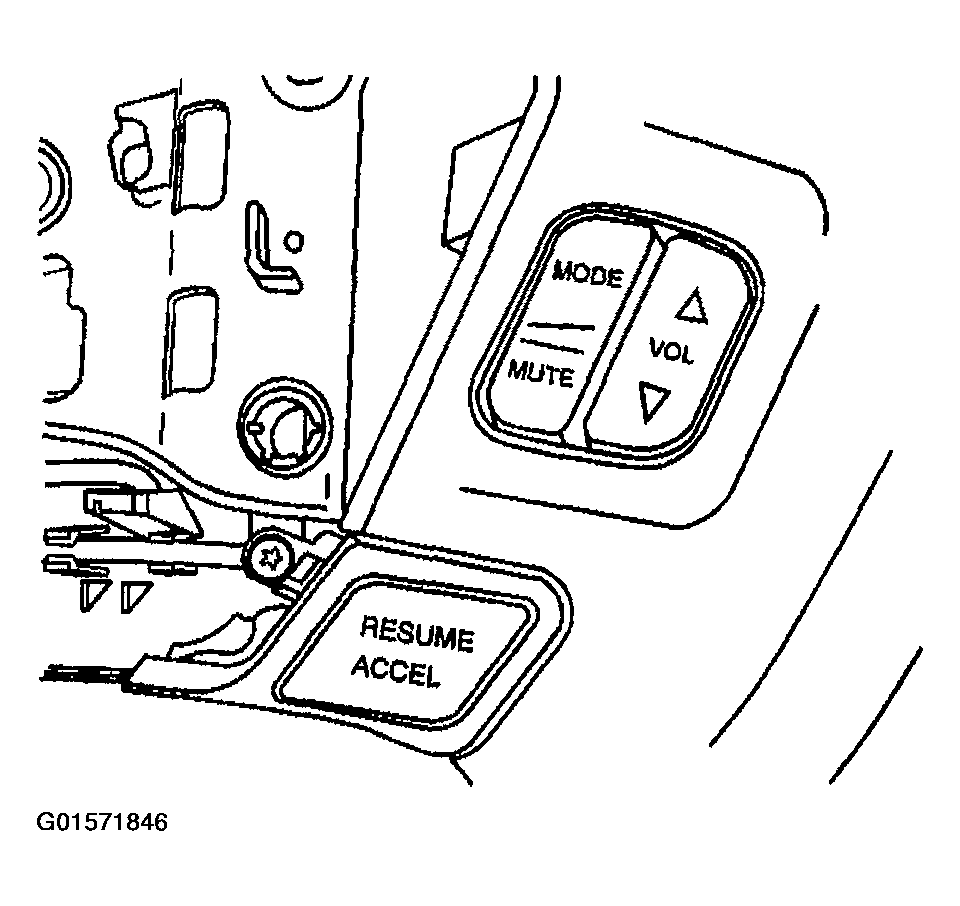

    Fig 1: Steering Wheel Controls
    G01571846Courtesy of GENERAL MOTORS CORP.
  5. Remove the plastic back shroud screws and the plastic back shroud on the back of the steering wheel.

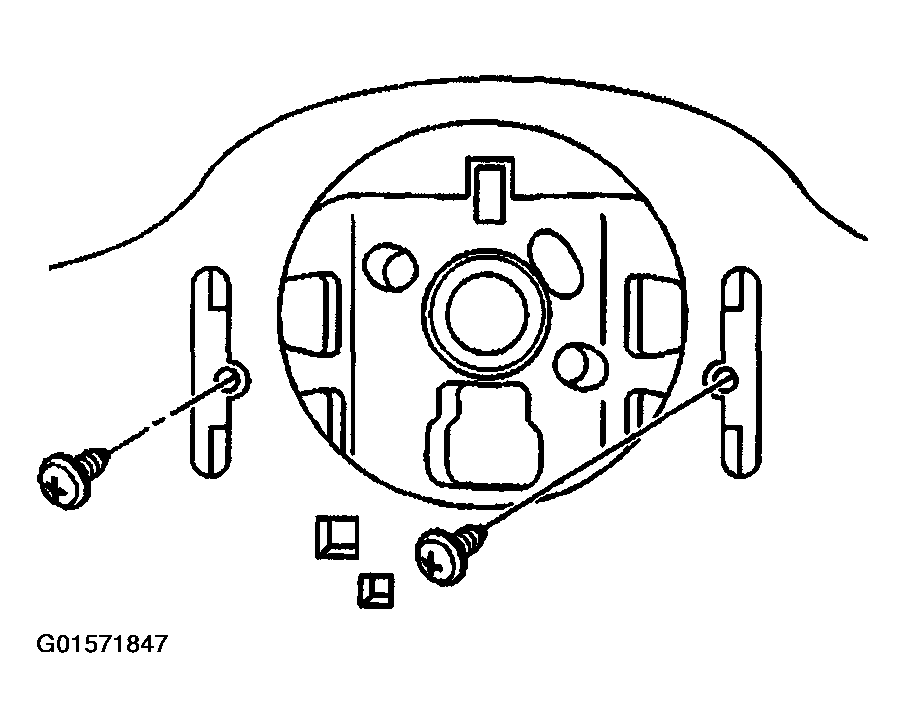

    Fig 2: Back Of Steering Wheel
    G01571847Courtesy of GENERAL MOTORS CORP.
  6. Carefully push on the back of the steering wheel radio control switch through the access opening in the back of the steering wheel switch pocket.
  7. Disconnect the electrical connector from the back of the steering wheel radio control switch.
  8. Remove the steering wheel radio control switch.

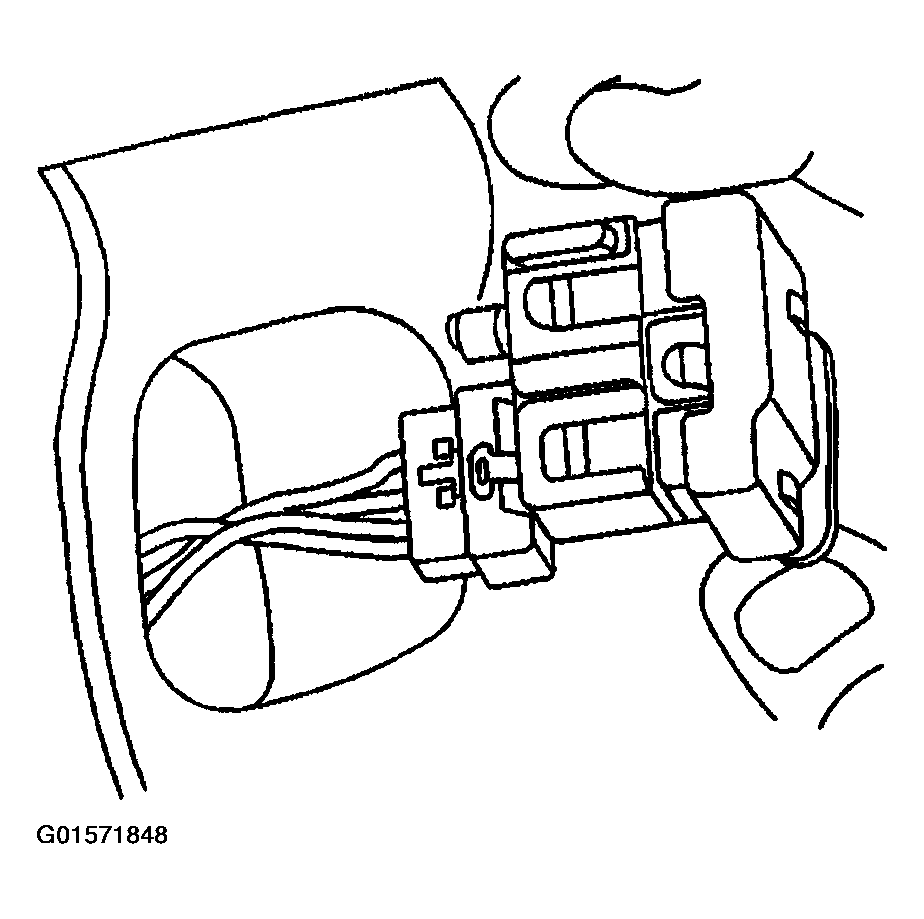

    Fig 3: Steering Wheel Radio Control Switch
    G01571848Courtesy of GENERAL MOTORS CORP.
