Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
  3. Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  4. Remove the lower trim cover screws (1).
  5. Remove the lower trim cover (2) from the steering column.

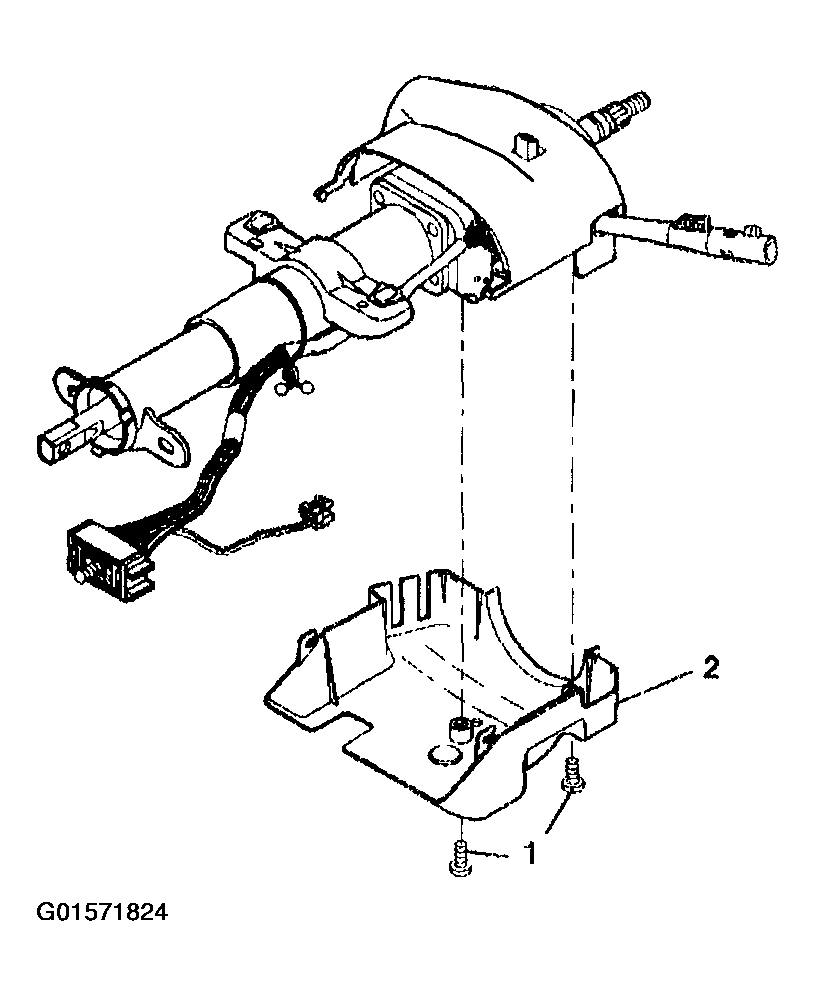

    Fig 1: Lower Trim Cover
    G01571824Courtesy of GENERAL MOTORS CORP.
  6. Tilt the lower trim cover down and slide the lower trim cover in order to disengage the locking tabs.

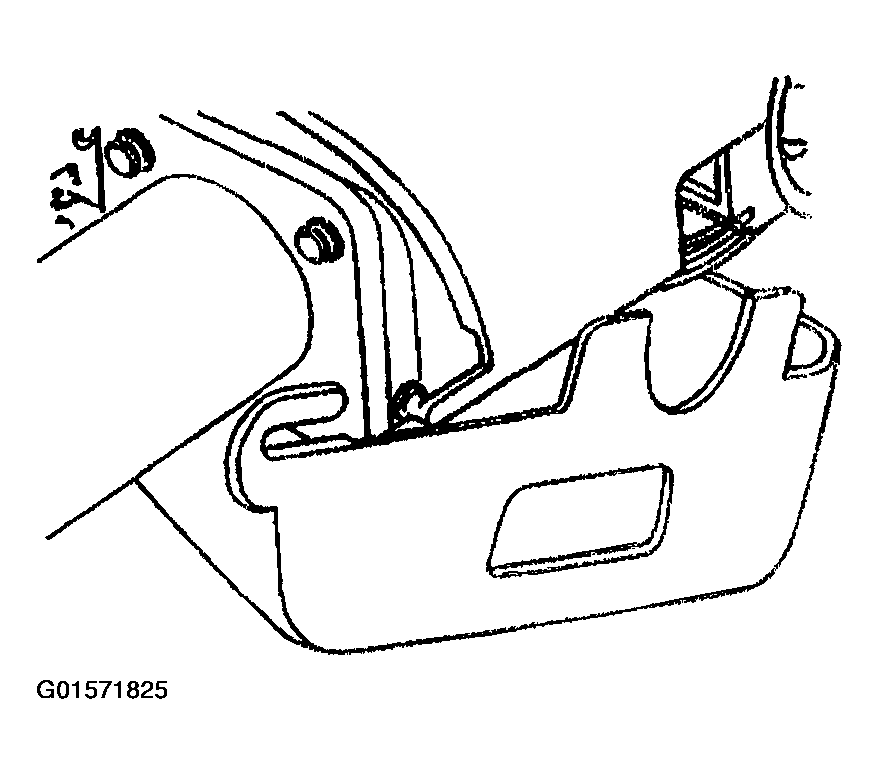

    Fig 2: Lower Trim Cover Locking Tabs
    G01571825Courtesy of GENERAL MOTORS CORP.
  7. Remove the upper trim cover screws.
  8. Remove the upper trim cover (2) from the steering column.

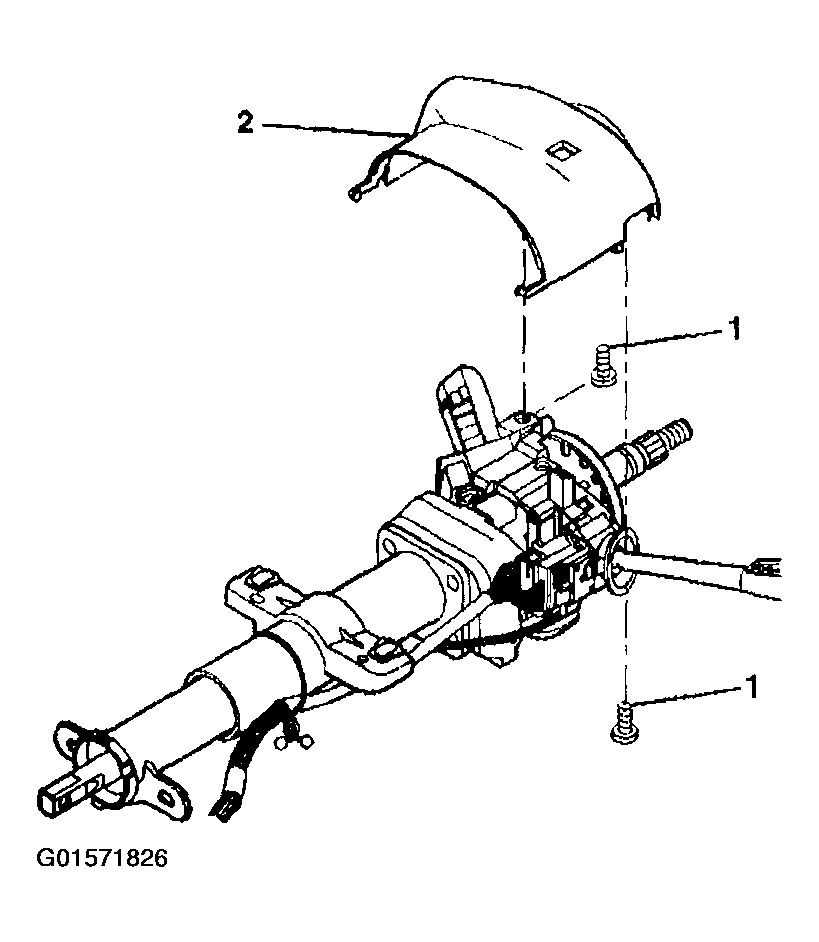

    Fig 3: Upper Trim Cover
    G01571826Courtesy of GENERAL MOTORS CORP.
