Multifunction Turn Signal Lever Replacement - On Vehicle: Notes
WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Removal Procedure
- Verify that the multifunction turn signal lever is in the center of the OFF position.
- Disconnect the negative battery cable.
- Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Remove the steering wheel. Refer to Steering Wheel Replacement .
- Remove the steering column trim cover. Refer to Steering Column Trim Covers Replacement - On Vehicle .
- Remove the steering column knee bolster.

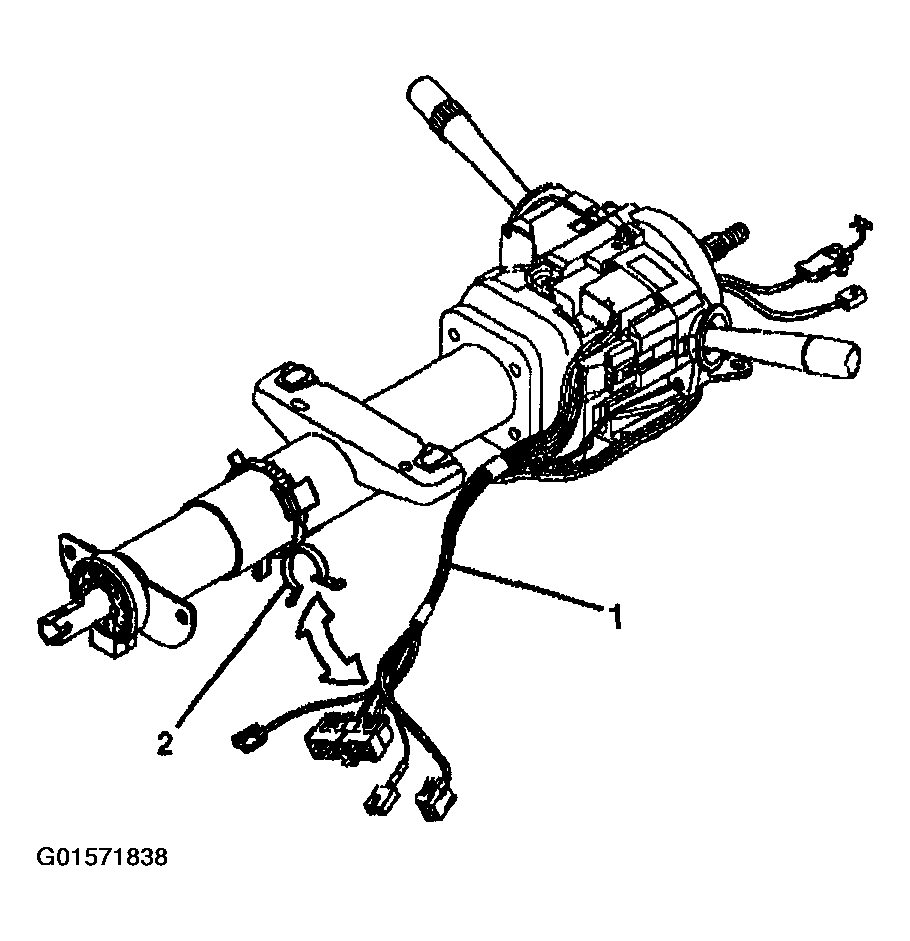

- Remove the steering column wire harness (1) from the steering column wire harness retainer (2).
- Remove the 2 wire harness straps from the steering column wire harness (1).
- Remove the steering column bulkhead connector from the vehicle wire harness.
- Disconnect the connectors from the multifunction turn signal lever steering column bulkhead connector.

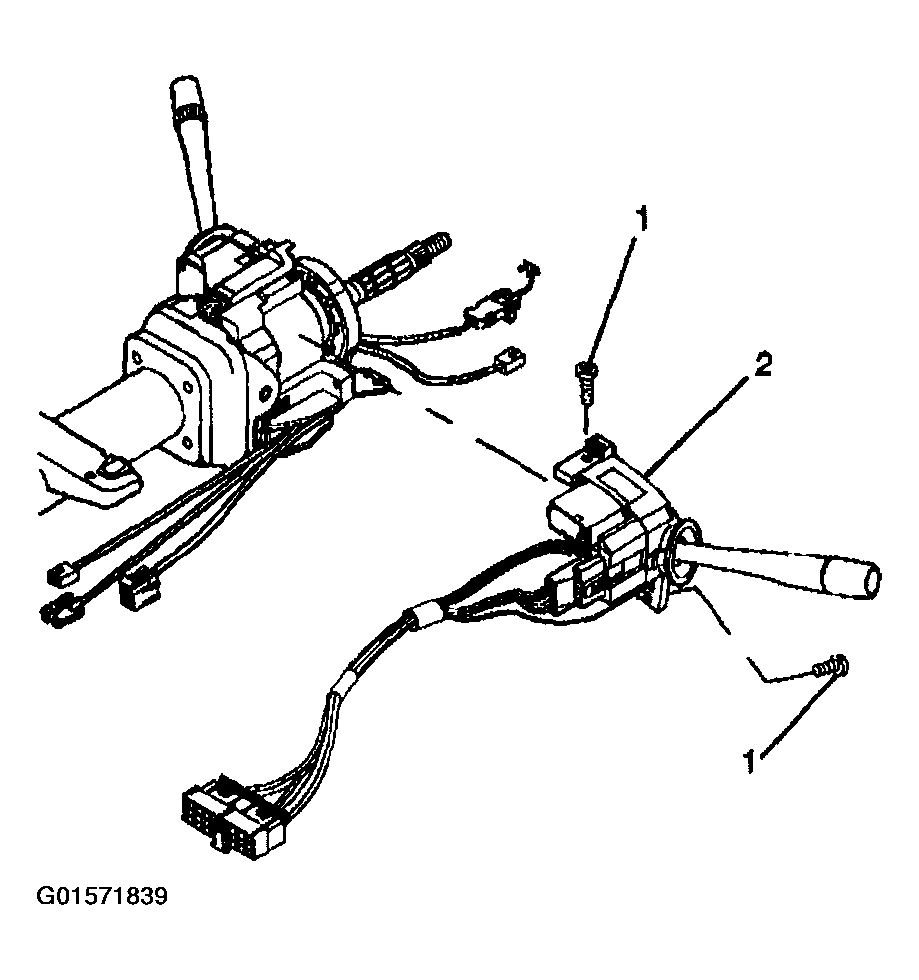

- Remove the retaining bolts (1) from the multifunction turn signal lever (2).
- Remove the multifunction turn signal lever (2) from the steering column.
