Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever assembly. Refer to Shift Lever Replacement - On Vehicle  or Shift Lever Replacement - On Vehicle  .
  2. Remove the knee bolster. Refer to INSTRUMENT PANEL CLUSTER .
  3. Disconnect the electrical connector from the automatic transmission shift lock control actuator.
  4. Remove the lock control actuator.

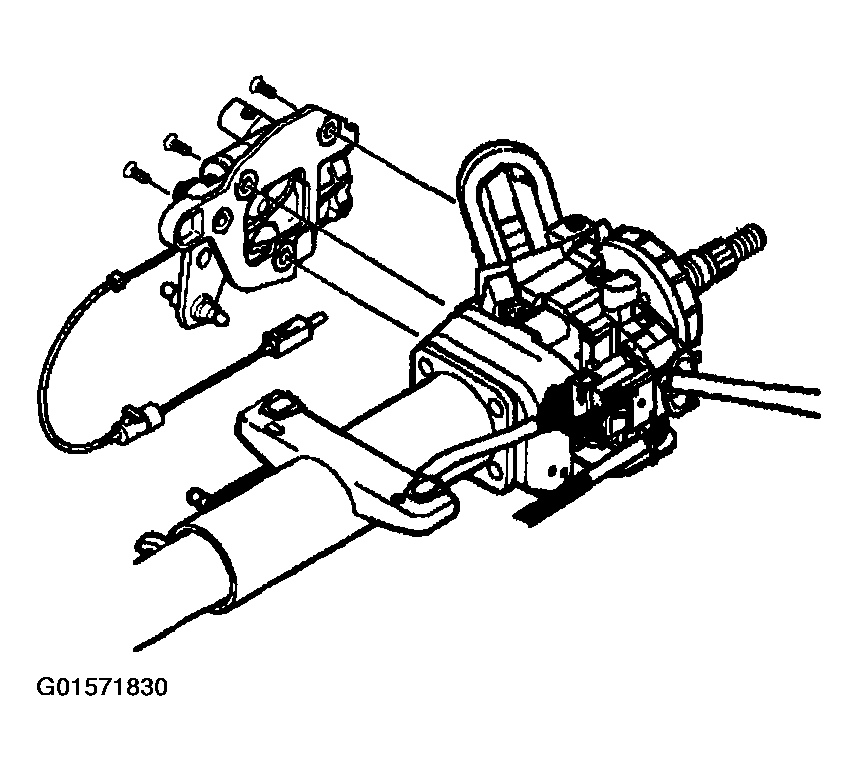

    Fig 1: Lock Control Actuator
    G01571830Courtesy of GENERAL MOTORS CORP.
  5. Place the lock cylinder in the OFF-LOCK position.
  6. Disconnect the linear shift assembly cable from the ignition switch.
  7. Remove the screws from the linear shift assembly.
  8. Remove the linear shift assembly from the steering column.
