High Shift Effort

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

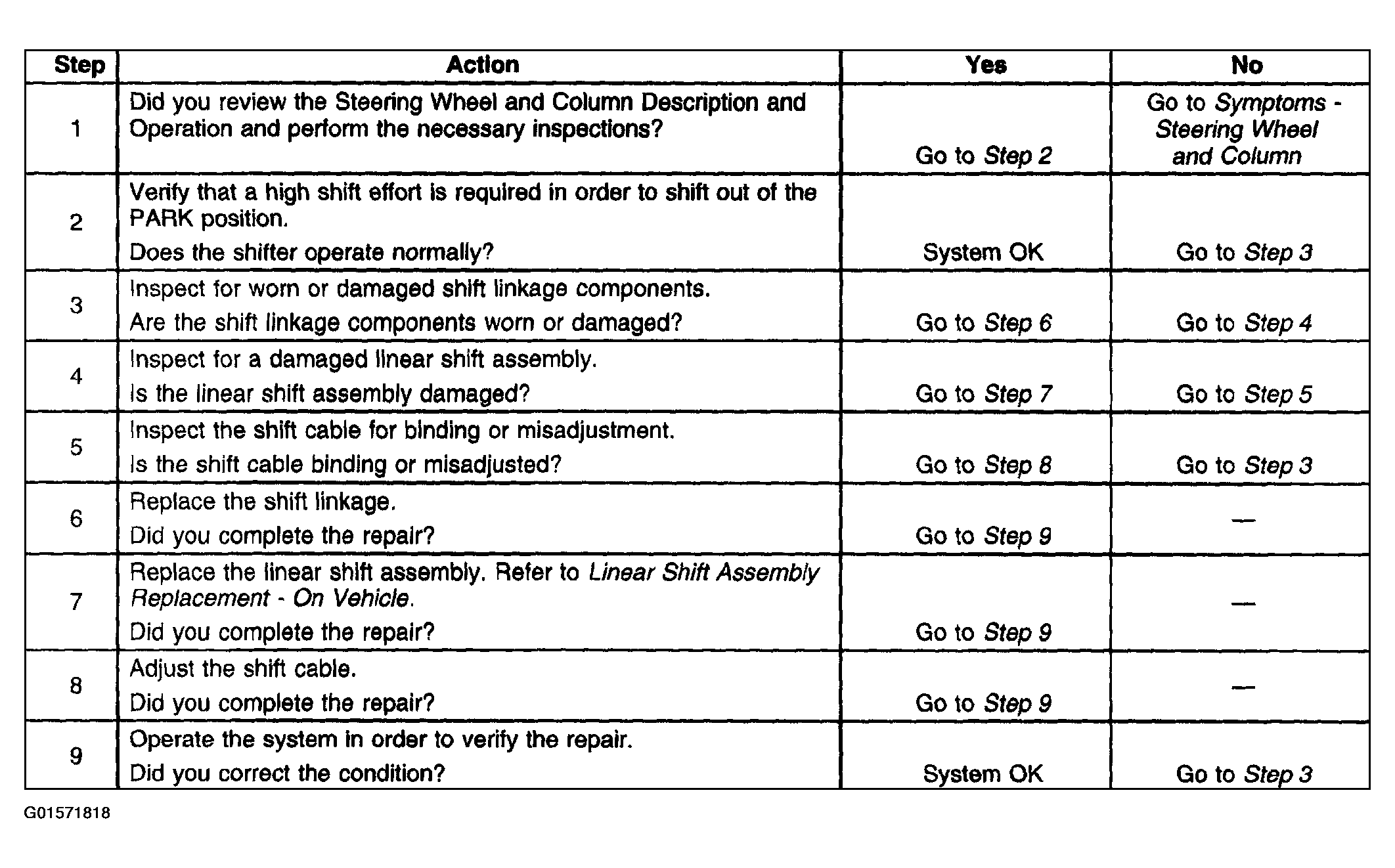

Fig 1: High Shift Effort Diagnosis
G01571818Courtesy of GENERAL MOTORS CORP.
