Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the tilt spring (2) with synthetic grease.
  2. Install the spring guide (1) into the tilt spring (2).
    Fig 1: Installing Spring Guide Into Tilt Spring
    G01687919Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
    1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. Secure the tilt spring (1) with locking pliers.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .

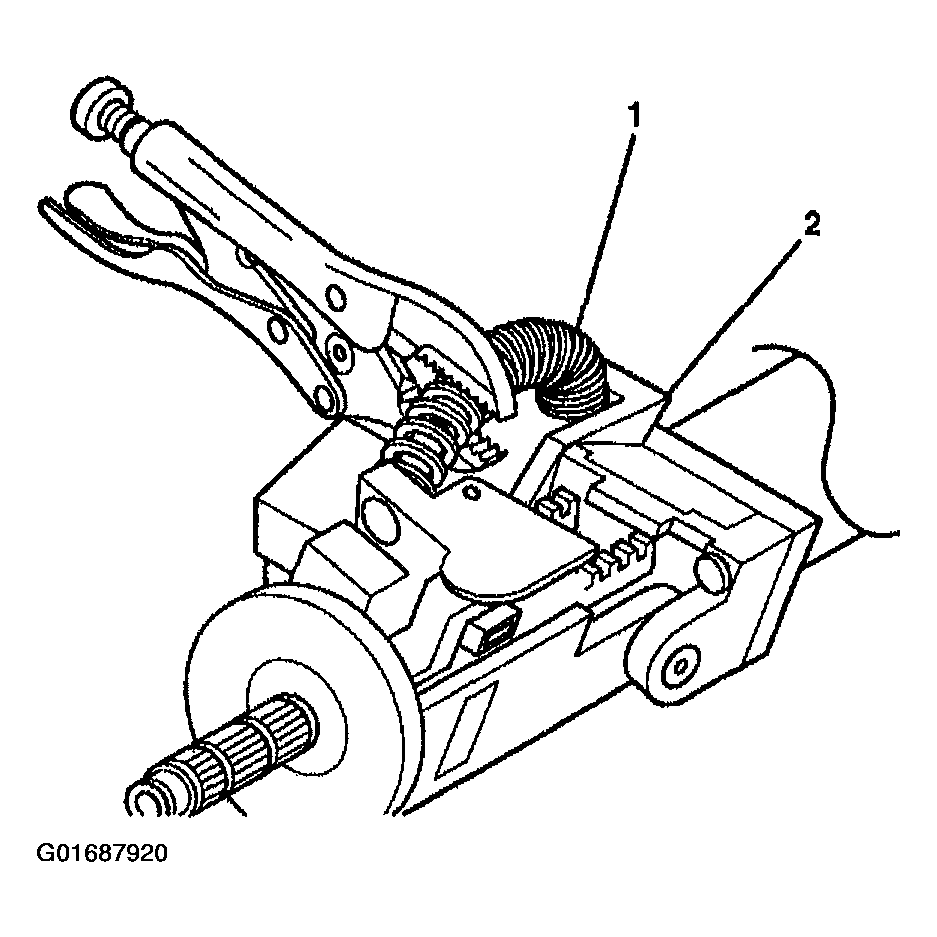

    Fig 2: Installing Tilt Spring
    G01687920Courtesy of GENERAL MOTORS CORP.
