Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This vehicle is equipped with a Supplemental Inflatable Restraint (SIR) System. Failure to follow the correct procedure could cause the following conditions:

Air bag deployment
Personal injury
Unnecessary SIR system repairs

In order to avoid the above conditions, observe the following guidelines:

Refer to SIR Component Views in order to determine if you are performing service on or near the SIR components or the SIR wiring.
If you are performing service on or near the SIR components or the SIR wiring, disable the SIR system. Refer to DISABLING SYSTEM .

Remove the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
Mark the relationship of the steering wheel (1) to the column.
Remove the steering wheel and the nut (2).

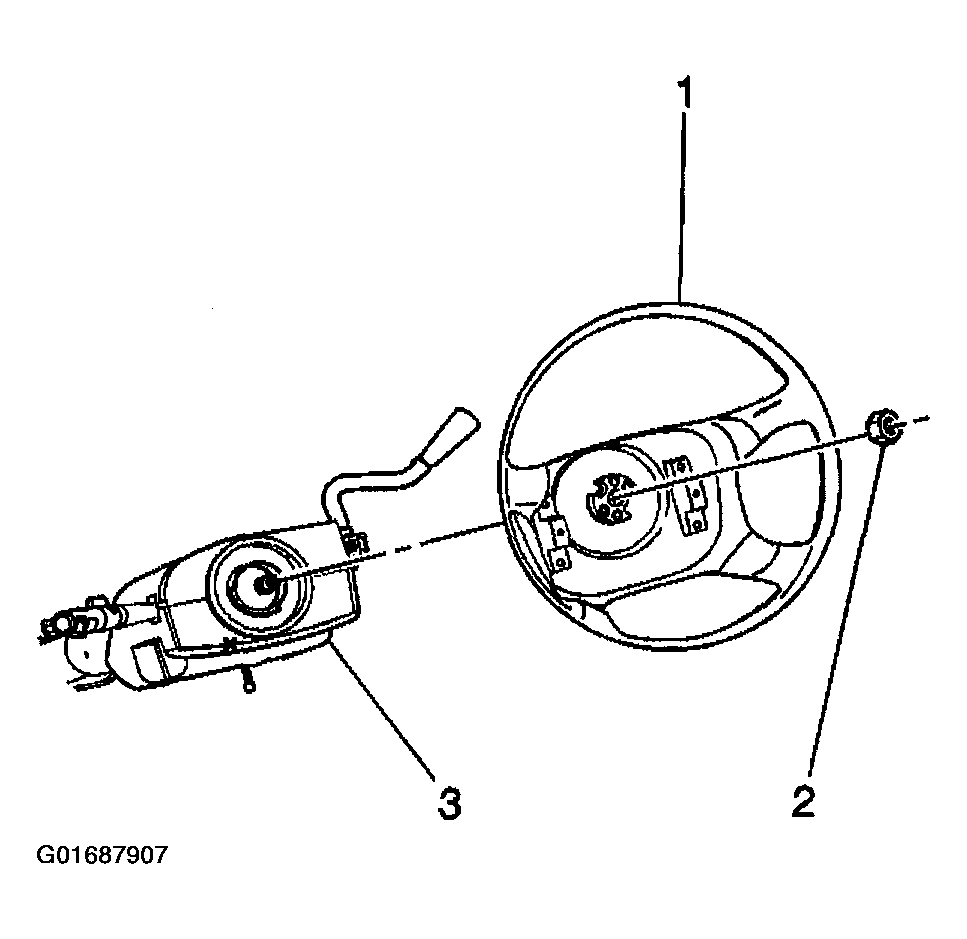

Fig 1: Removing Steering Wheel & Nut
Courtesy of GENERAL MOTORS CORP.
Use the J 1859-A in order to remove the steering wheel from the column.

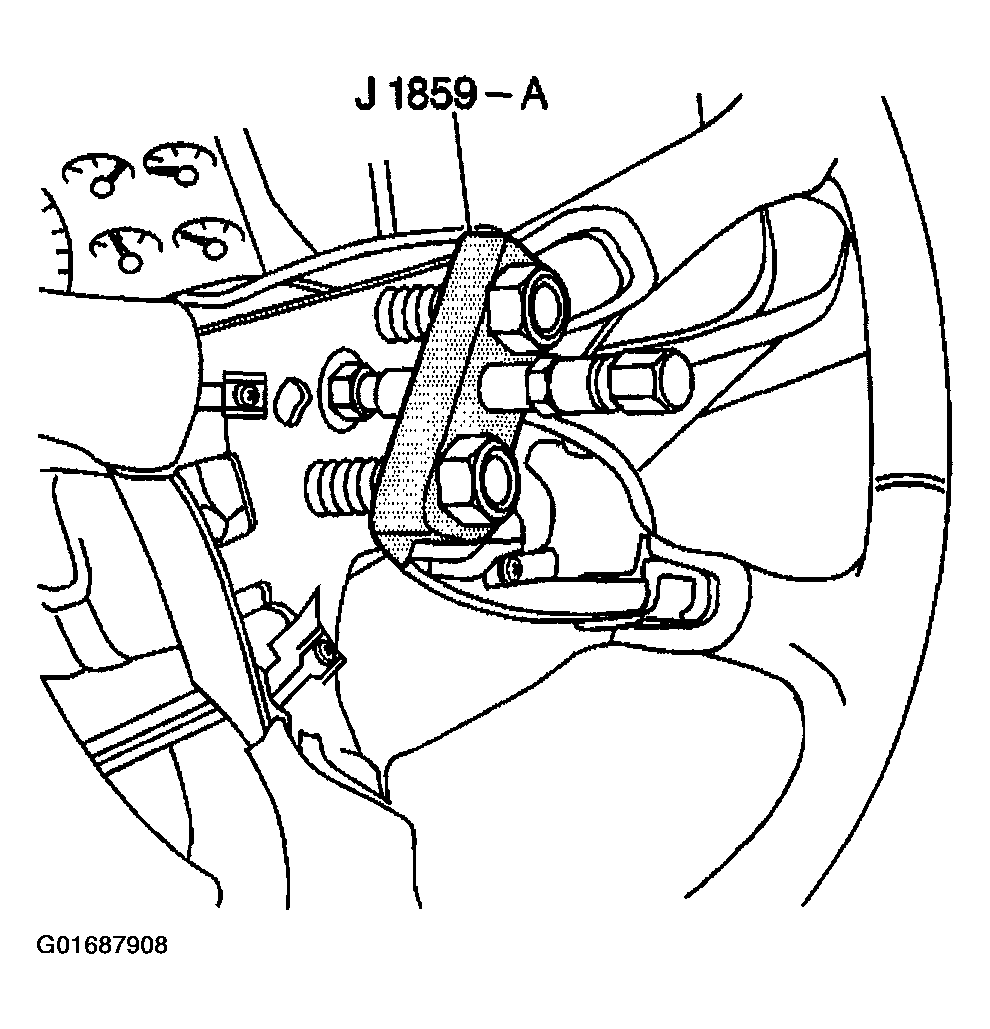

Fig 2: Removing Steering Wheel From Column Using J 1859-A
Courtesy of GENERAL MOTORS CORP.
