Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: This vehicle is equipped with a Supplemental Inflatable Restraint (SIR) System. Failure to follow the correct procedure could cause the following conditions:
  • Air bag deployment
  • Personal injury
  • Unnecessary SIR system repairs
In order to avoid the above conditions, observe the following guidelines:
  • Refer to SIR Component Views in order to determine if you are performing service on or near the SIR components or the SIR wiring.
  • If you are performing service on or near the SIR components or the SIR wiring, disable the SIR system. Refer to DISABLING SYSTEM .
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the Automatic Transmission Shift Lock Control actuator. Refer to SHIFT LOCK SOLENOID .
  3. Disconnect the park lock cable assembly (1).
  4. The steering column lock cylinder set should be in the OFF-LOCK position.

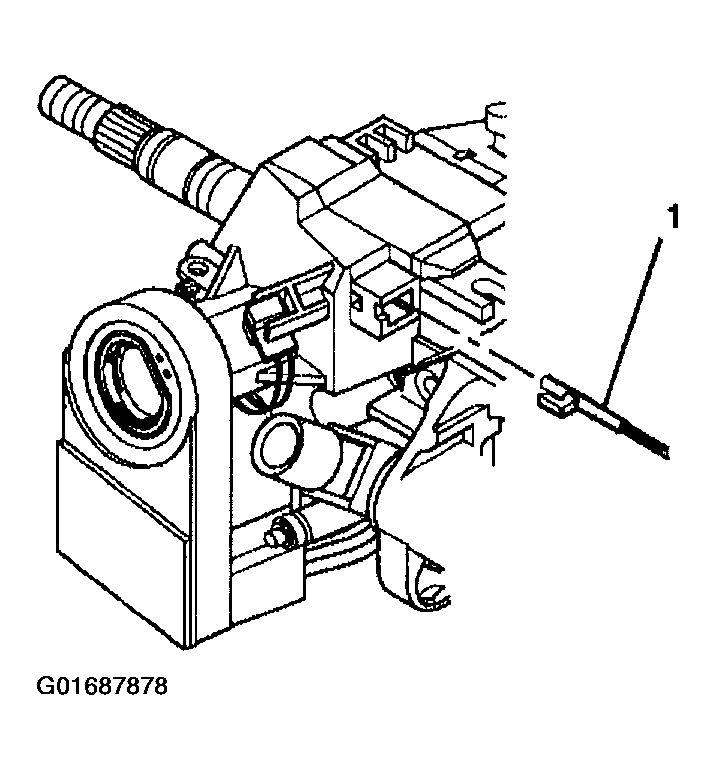

    Fig 1: Disconnecting Park Lock Cable Assembly
    G01687878Courtesy of GENERAL MOTORS CORP.
  5. Insert a small screwdriver into the slot on the lock module assembly and push against the locking tab to remove.
  6. Disconnect the automatic transmission shift lock control electrical connector from the park position switch.
  7. Remove the park position switch assembly from the linear shift assembly.
    Fig 2: Removing Park Position Switch Assembly
    G01687879Courtesy of GENERAL MOTORS CORP.
  8. Remove 3 flat head 6 lobed socket tap screws from the linear shift assembly.
  9. Remove the linear shift assembly from the steering column.
  10. To disassemble the linear shift assembly, proceed to the next step.

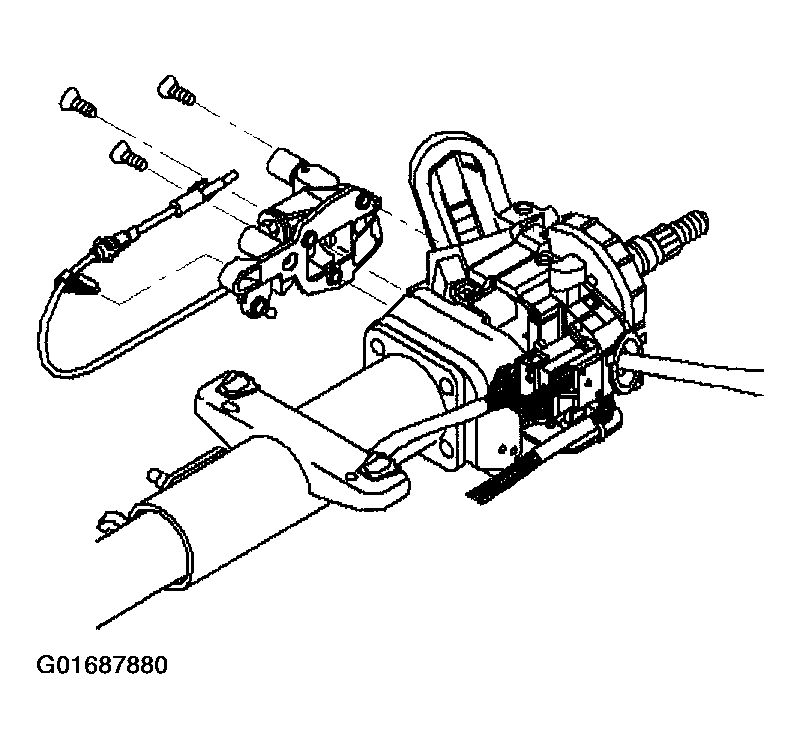

    Fig 3: Removing Linear Shift Assembly
    G01687880Courtesy of GENERAL MOTORS CORP.
  11. Remove the hexagon flange head bolt from the gear shift lever assembly.
  12. Remove the ball and actuator assembly (2) from the gear shift lever assembly.
  13. Remove the shift lever clevis (1) from the support bracket for the gear shift lever assembly.
    Fig 4: Removing Ball & Actuator Assembly
    G01687881Courtesy of GENERAL MOTORS CORP.
  14. Remove the 3 oval head 6 lobed socket tapping screws from the shift gate.

    Remove the park lock cable assembly from the support bracket for the gear shift lever assembly.

    Fig 5: Removing Park Lock Cable Assembly
    G01687882Courtesy of GENERAL MOTORS CORP.
  15. Remove the hexagon flange head bolt from the cable shift cam assembly (1).
  16. Remove the cable shift cam assembly (1) from the support bracket for the gear shift lever assembly.
  17. Remove the cam bushing (2) from the cable shift cam assembly (1).

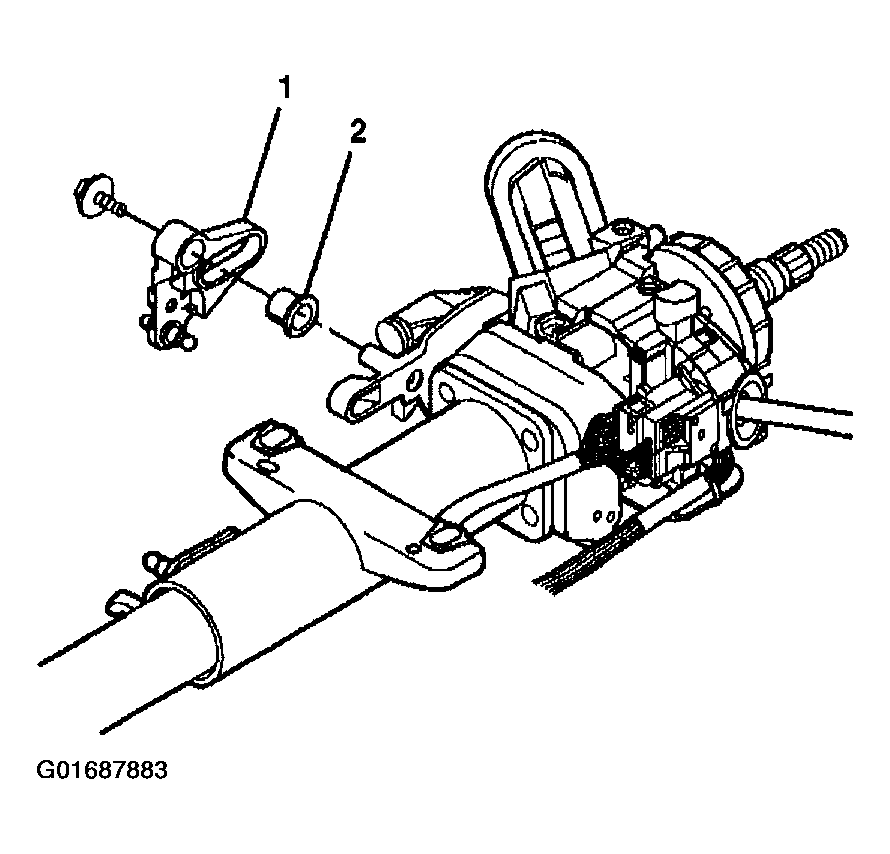

    Fig 6: Removing Cam Bushing & Cable Shift Cam Assembly
    G01687883Courtesy of GENERAL MOTORS CORP.
  18. Remove the 3 flat head tapping screws from the support bracket for the gear shift lever assembly.
  19. Remove the gear shift lever assembly support bracket from the steering column support assembly.
    Fig 7: Removing Gear Shift Lever Assembly
    G01687884Courtesy of GENERAL MOTORS CORP.
