Key Cannot Be Removed in the Off Lock Position

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

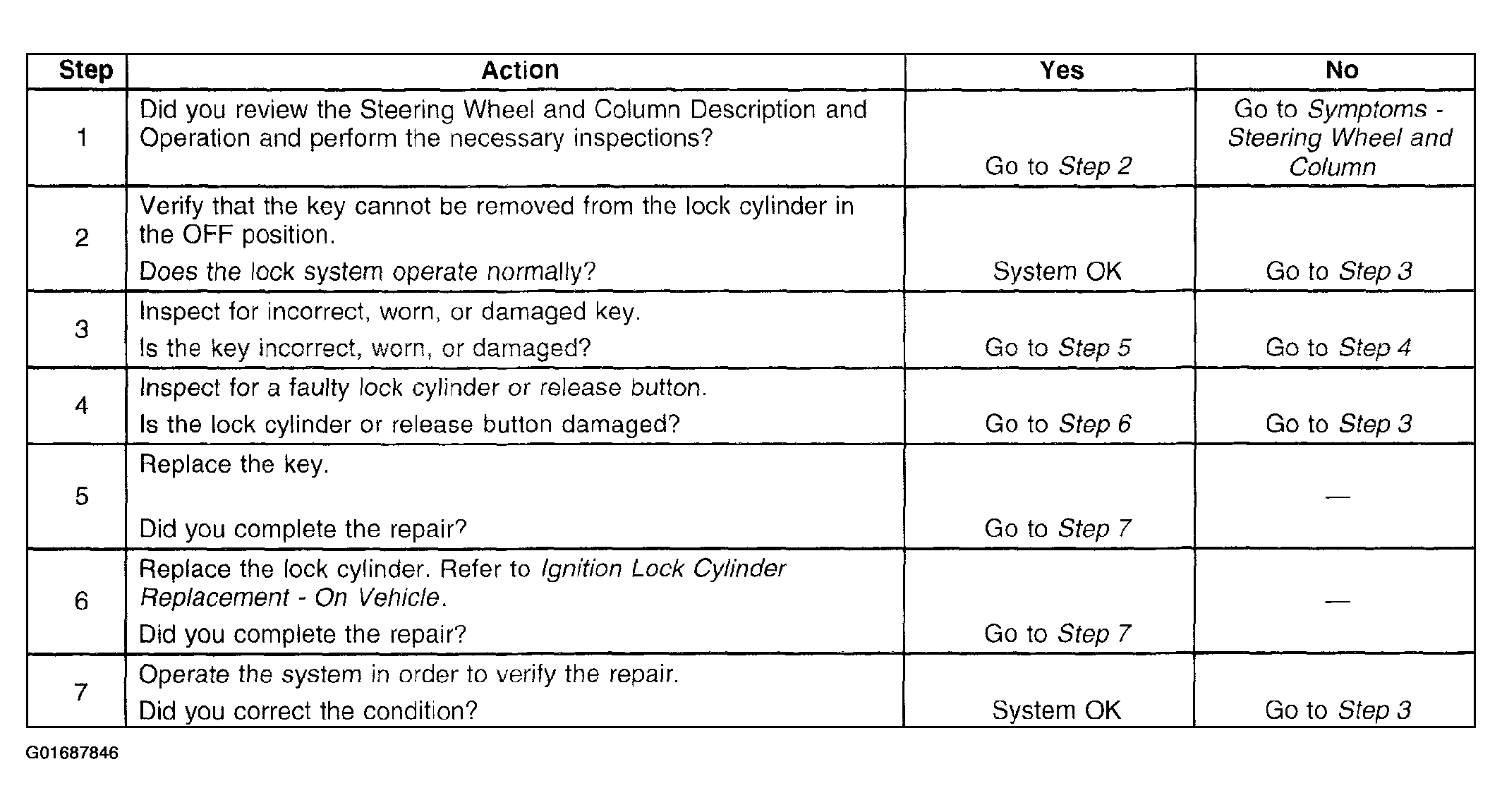

Fig 1: Identifying Key Cannot Be Removed In Off Lock Position Diagnostic Table
G01687846Courtesy of GENERAL MOTORS CORP.
