Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.

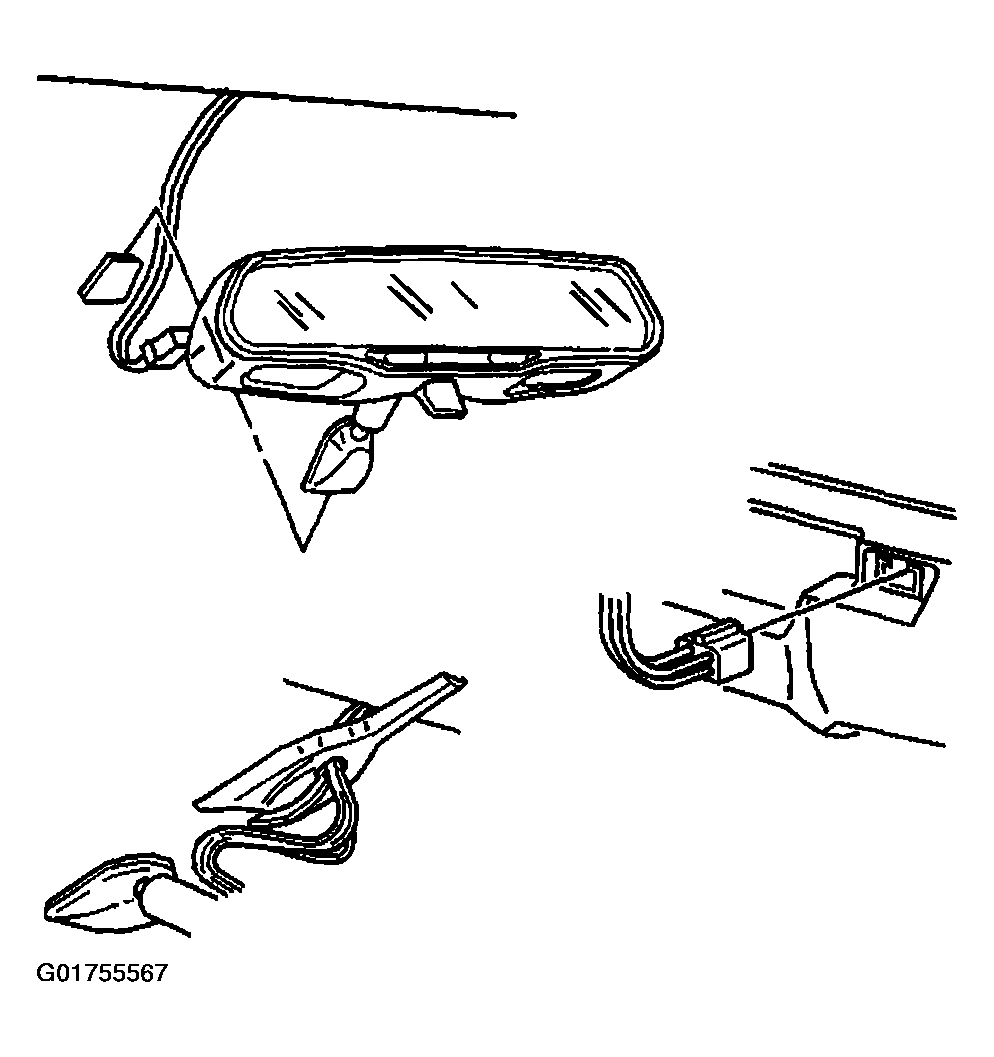

    Fig 1: Identifying Rearview Mirror Components
    G01755567Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the base.
    3. Fig 2: Identifying Rearview Mirror Base Screw
    G01755568Courtesy of GENERAL MOTORS CORP.
  3. Slide mirror off of the support.
  4. Disconnect the electrical connector from the lighted rearview mirror, if equipped.
