Knee Bolster: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

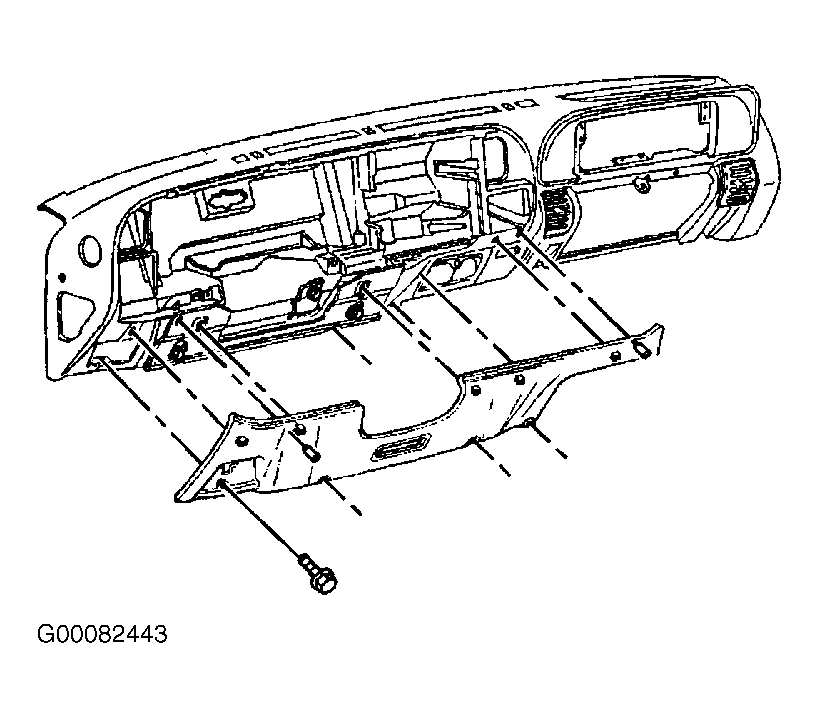

Install the lap cooler hose. Connect the brake release cable. Snap the knee bolster into the instrument panel assembly. Install the knee bolster screws. See Fig 1 . Tighten the knee bolster screws to 18 INCH lbs. (2 N.m).
