Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.

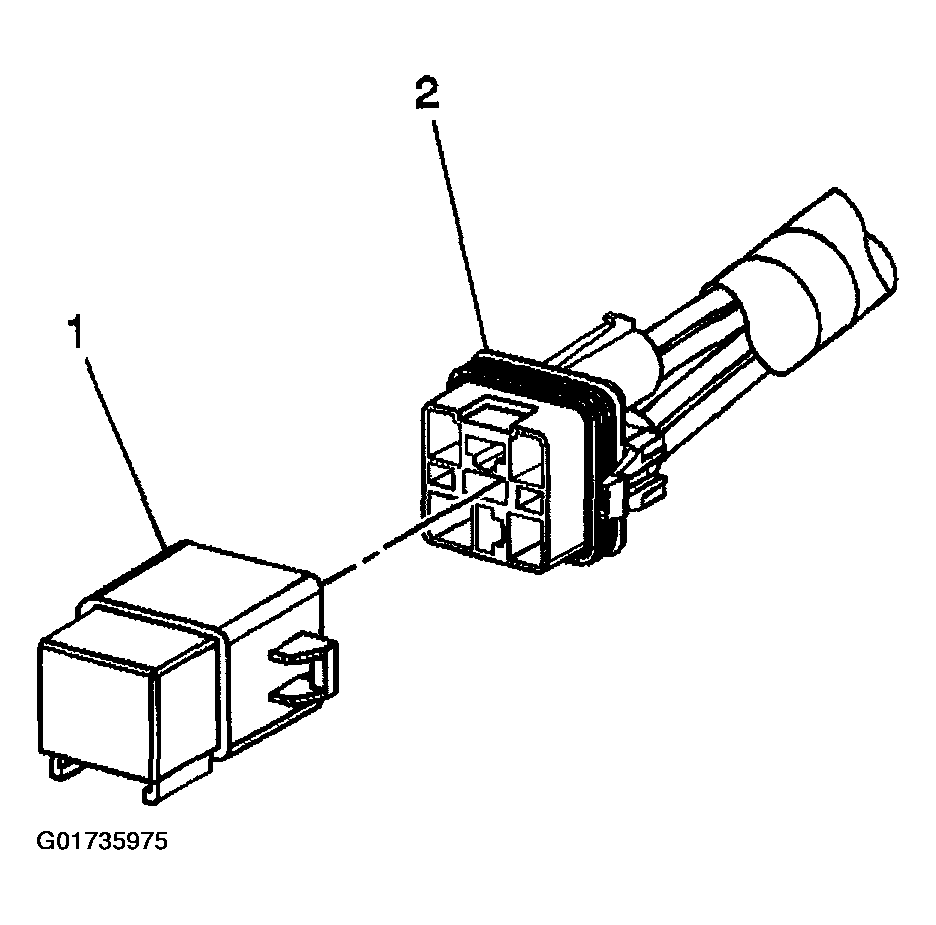

    Fig 1: Connecting Relay To Wire Harness Connector
    G01735975Courtesy of GENERAL MOTORS CORP.
