Utility/Van Zoning

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

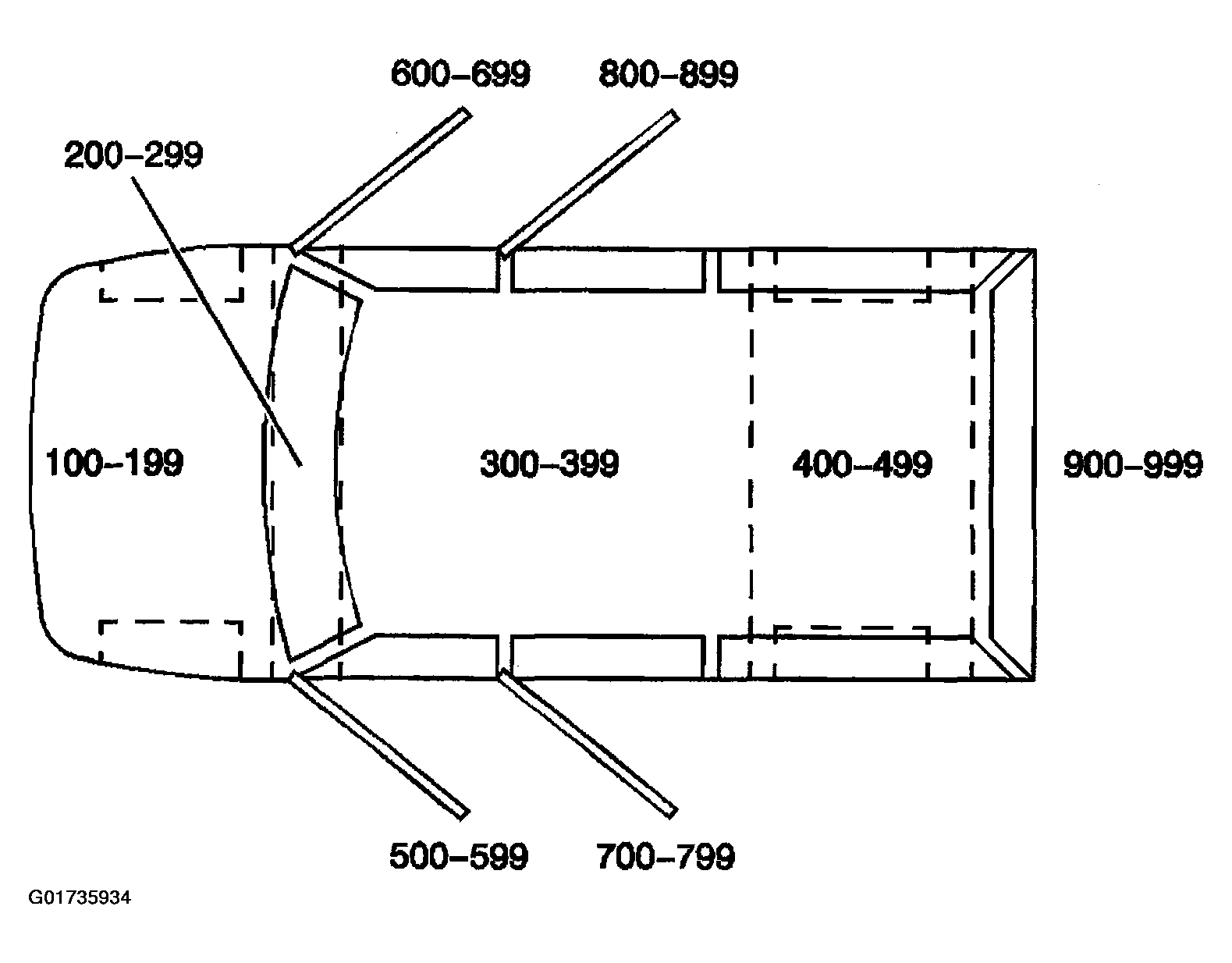

Fig 1: Utility/Van Zoning (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

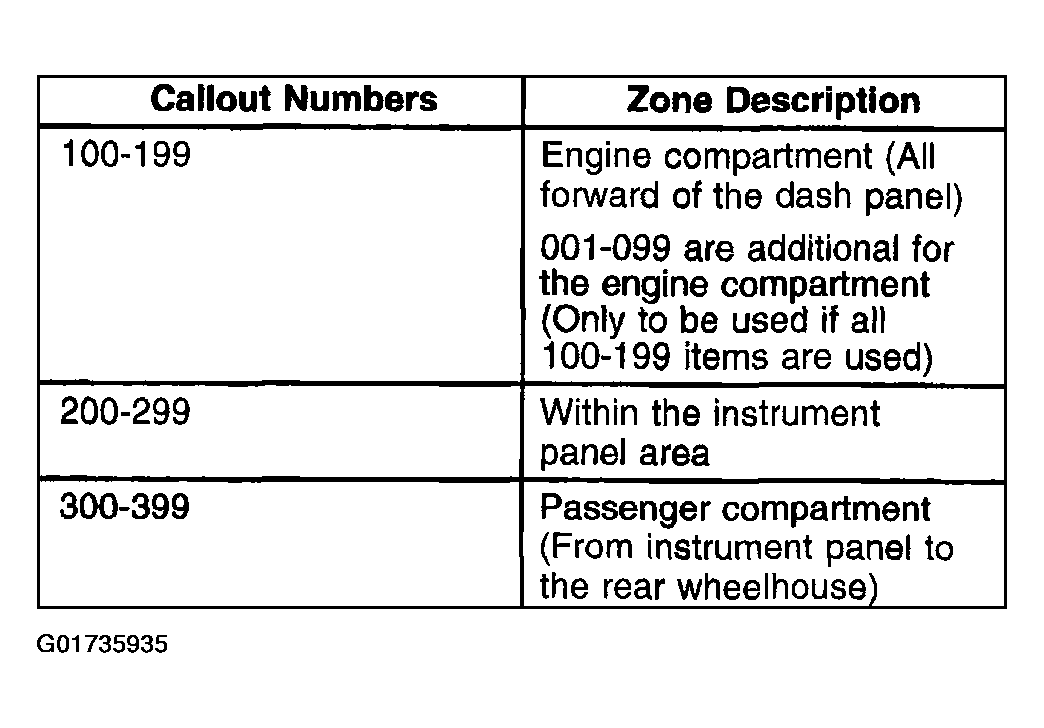

Fig 2: Utility/Van Zoning (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

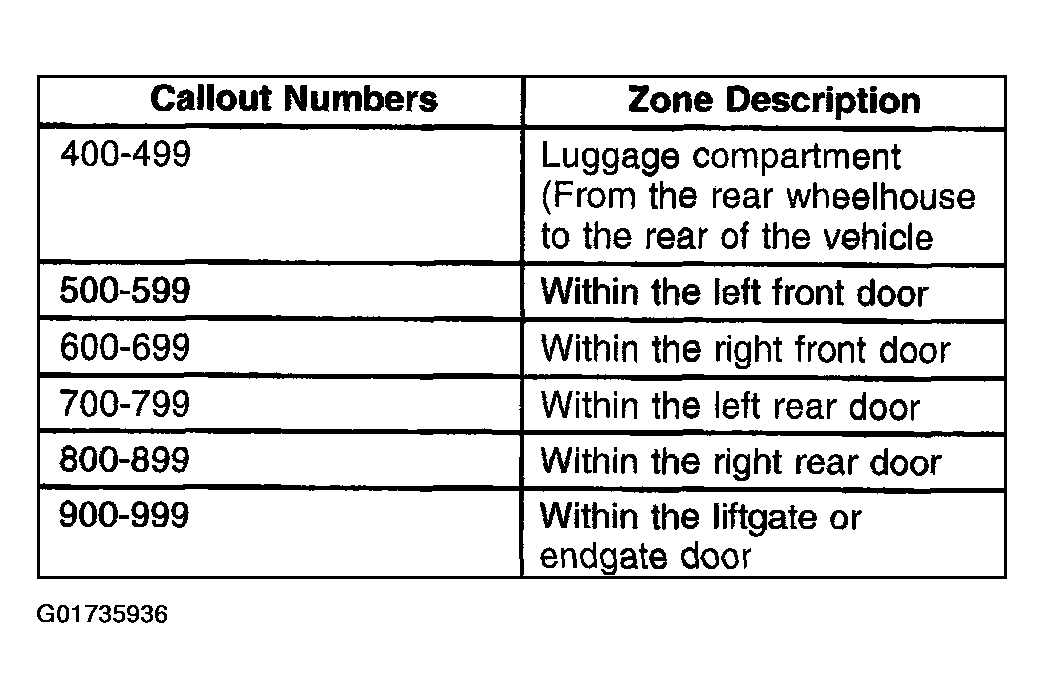

Fig 3: Utility/Van Zoning (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
