Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Remove the rear seat sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK .
  3. Apply forward pressure in order to release the rear retainer.

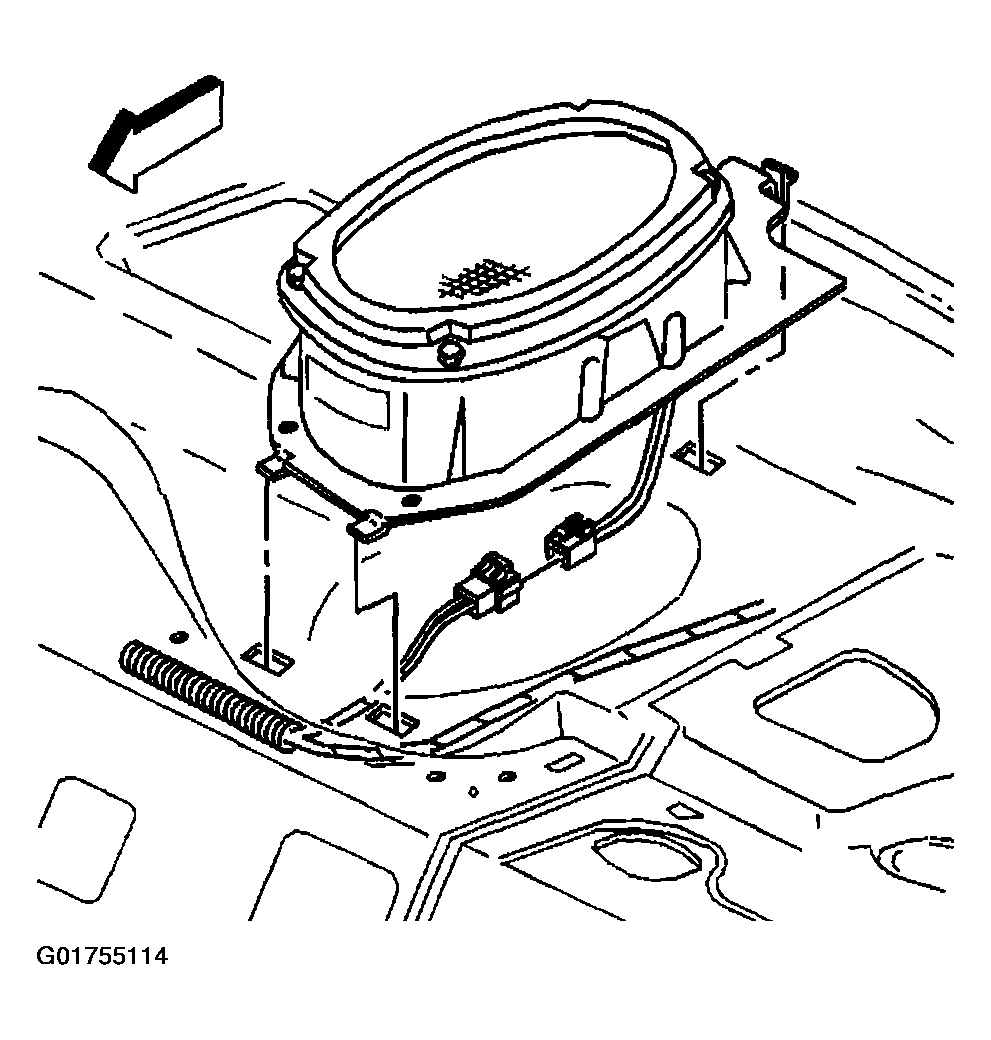

    4. Fig 1: Identifying Rear Speaker
    G01755114Courtesy of GENERAL MOTORS CORP.
  4. Lift up, out and back from the rear shelf.
  5. Disconnect the electrical connector from the rear speaker.
  6. Remove the rear speaker from the rear shelf.
