Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Remove the front door speaker retaining screws.

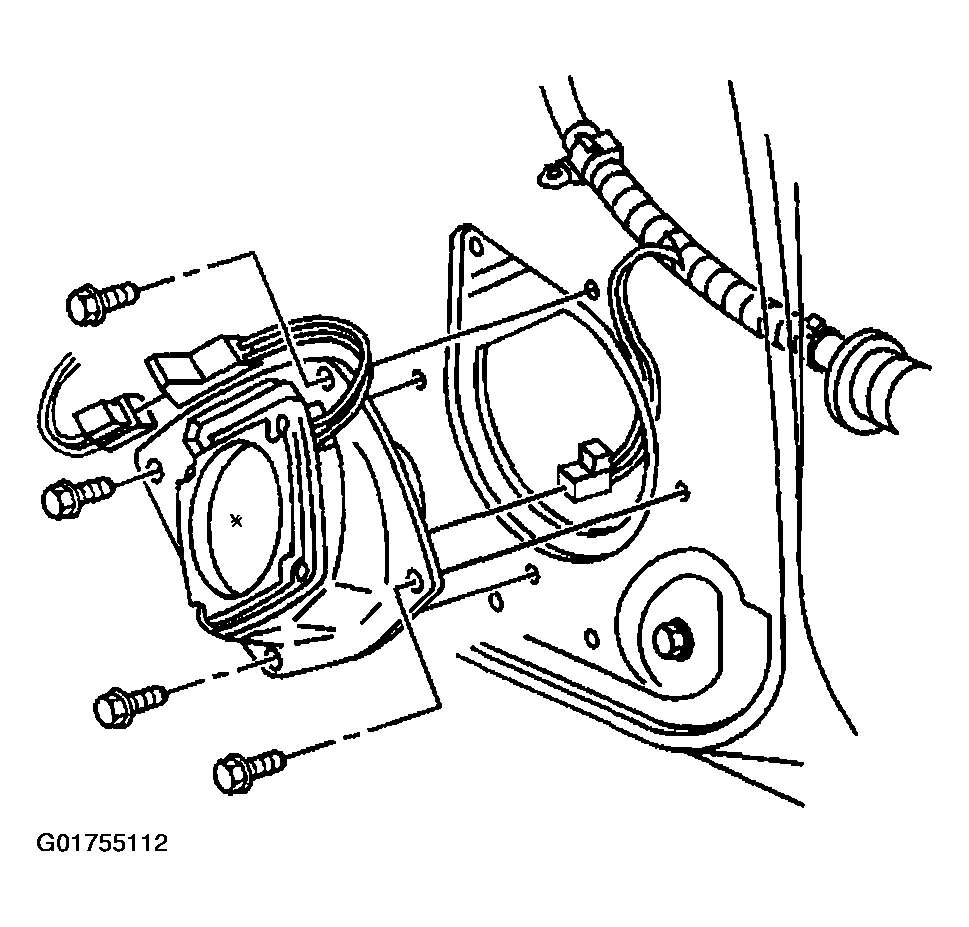

    3. Fig 1: Identifying Front Door Speaker
    G01755112Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the front door speaker.
  4. Remove the speaker from the front door.
