Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the front door speaker.

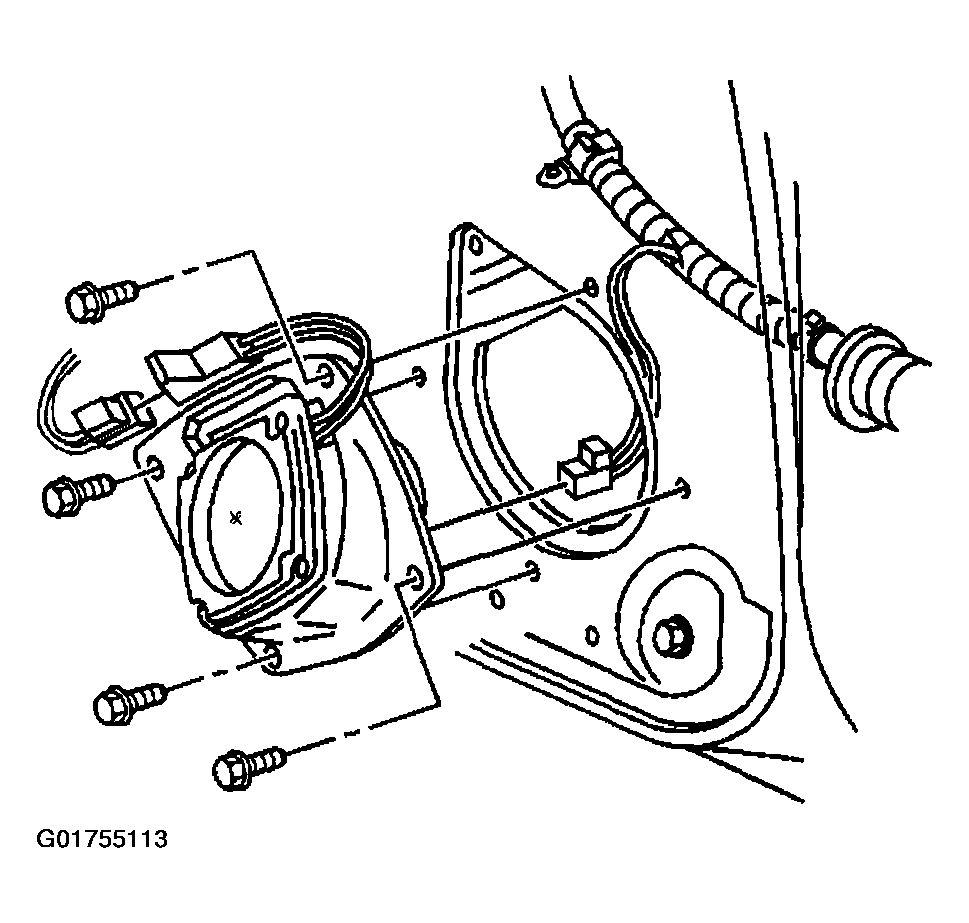

    2. Fig 1: Identifying Front Door Speaker
    G01755113Courtesy of GENERAL MOTORS CORP.
  2. Install the speaker to the front door.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the front door speaker retaining screws. Tighten the front door speaker retaining screws to 2 N.m (18 lb in).
  4. Install the front door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
