Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Remove the rear speaker grille nuts from the bottom of the rear speaker grille.

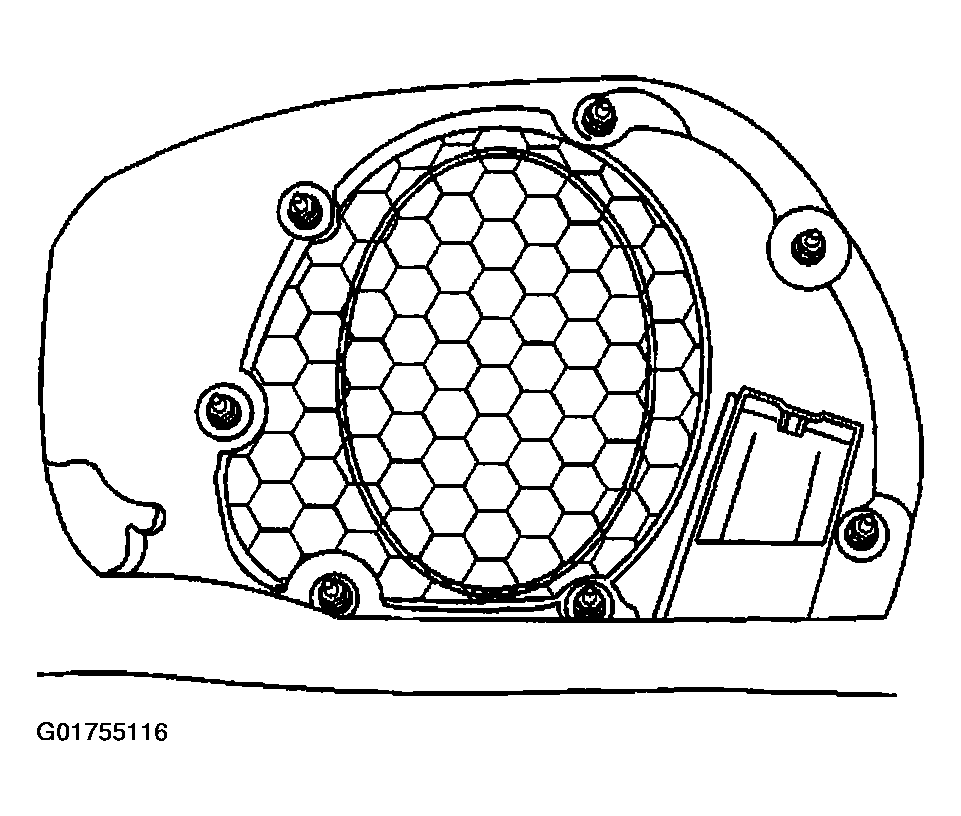

    3. Fig 1: Identifying Rear Speaker Grille
    G01755116Courtesy of GENERAL MOTORS CORP.
  3. Release the rear speaker grille retainer from the rear window trim panel.
  4. Pull up and out on the rear speaker grille.
  5. Remove the rear speaker grille retainer.
  6. Remove the rear speaker grille from the rear window trim panel.
