Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rear speaker grille to the rear window trim panel.

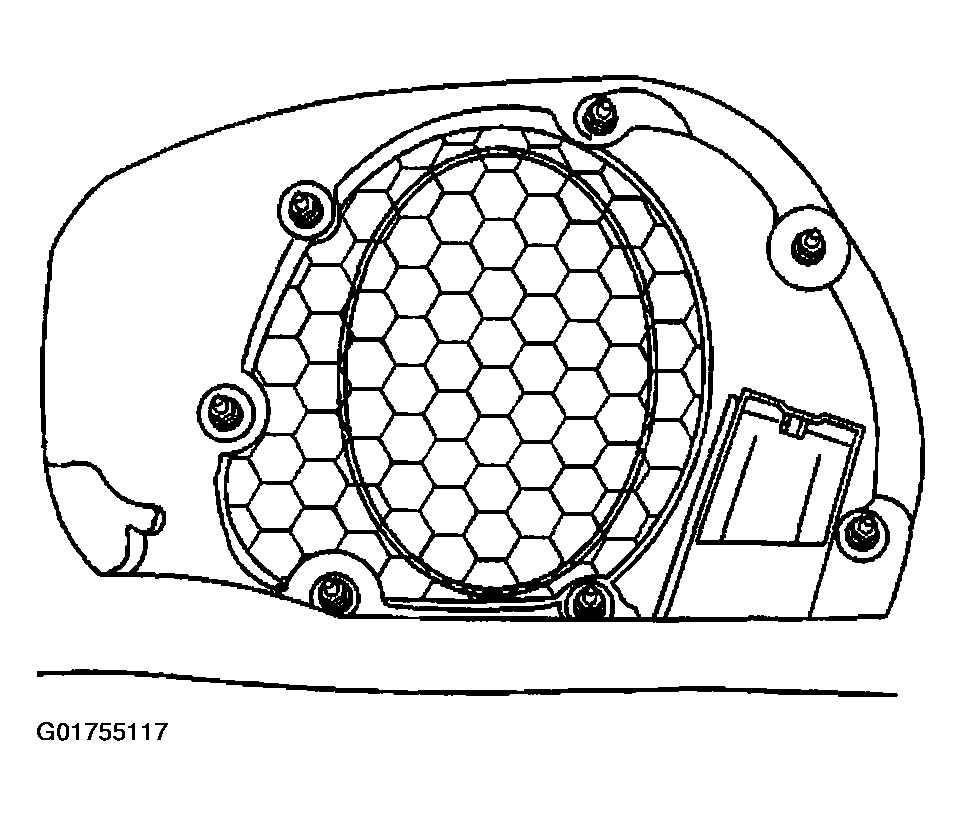

    2. Fig 1: Identifying Rear Speaker Grille
    G01755117Courtesy of GENERAL MOTORS CORP.
  2. Lock in the retainers by pressing the rear speaker grille into the rear window trim panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear speaker grille nuts. Tighten the rear speaker grille retaining nuts to 2 N.m (18 lb in).
  4. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
