Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.

Install the antenna mast to the antenna base.

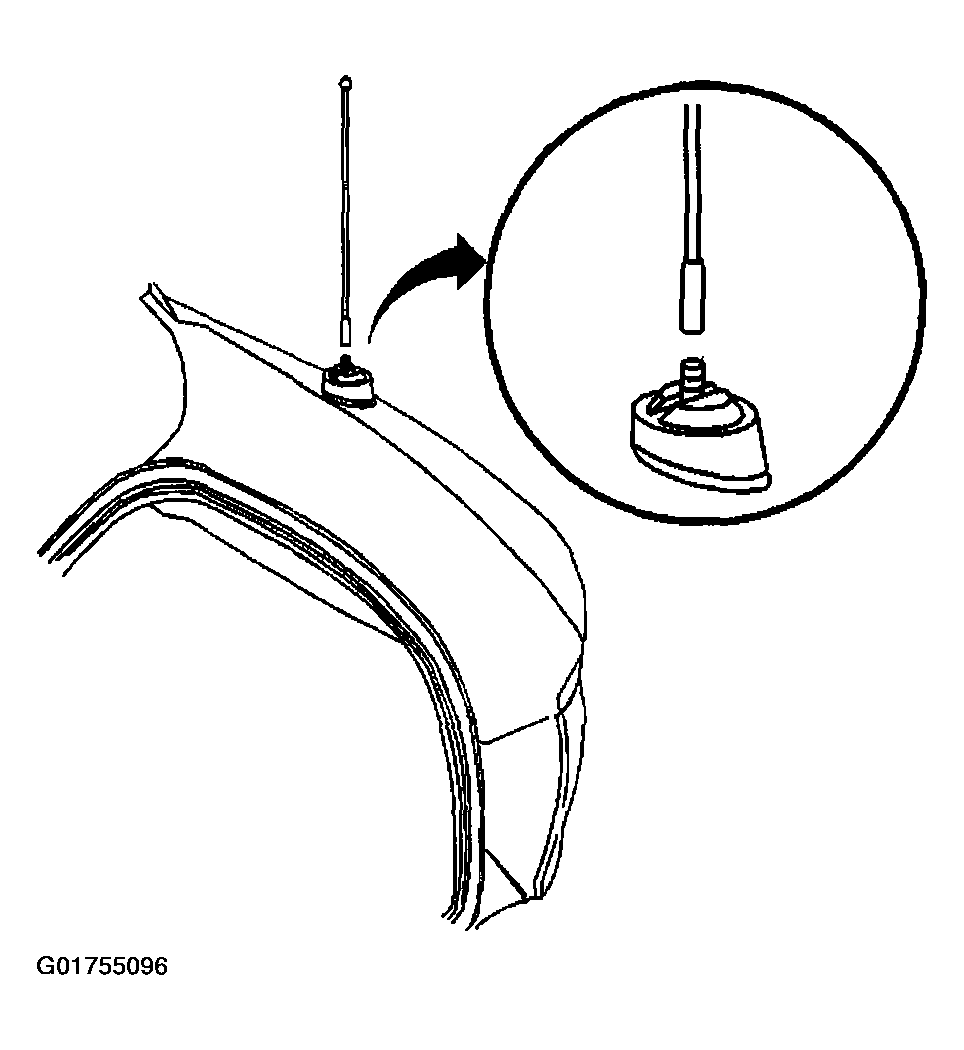

Fig 1: Installing Antenna Mast
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Screw the antenna mast to the antenna base. Tighten the antenna mast to 5 N.m (44 lb in).

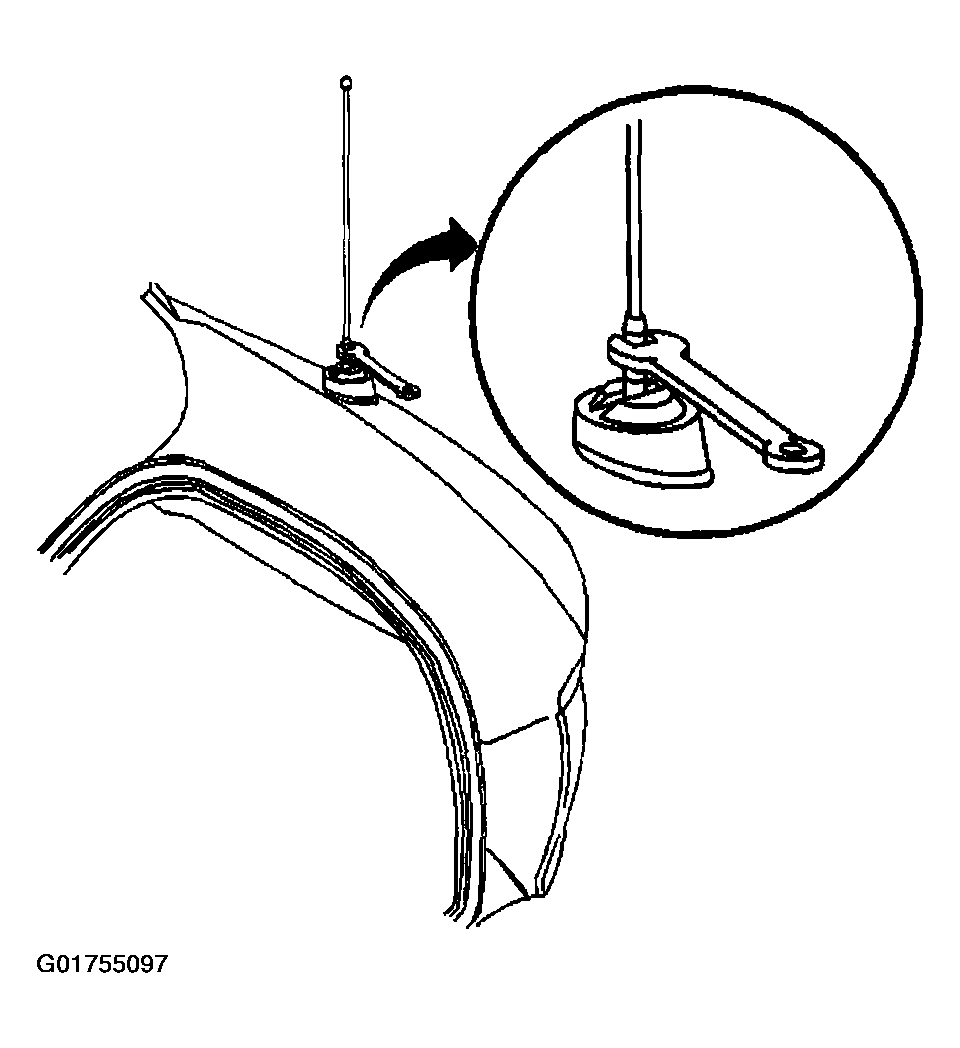

Fig 2: Tightening Antenna Mast

Courtesy of GENERAL MOTORS CORP.
