Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console assembly from the vehicle. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT (LUXURY Y91) or to OVERHEAD CONSOLE REPLACEMENT - REAR (LUXURY Y91) .
Disconnect the electrical connectors from the video display.
In order to remove the video-display, break off the tabs (1) that retain the video screen (2) to the overhead console.
Slide the video display in the open position out of the overhead console (3) through the opening in the front.

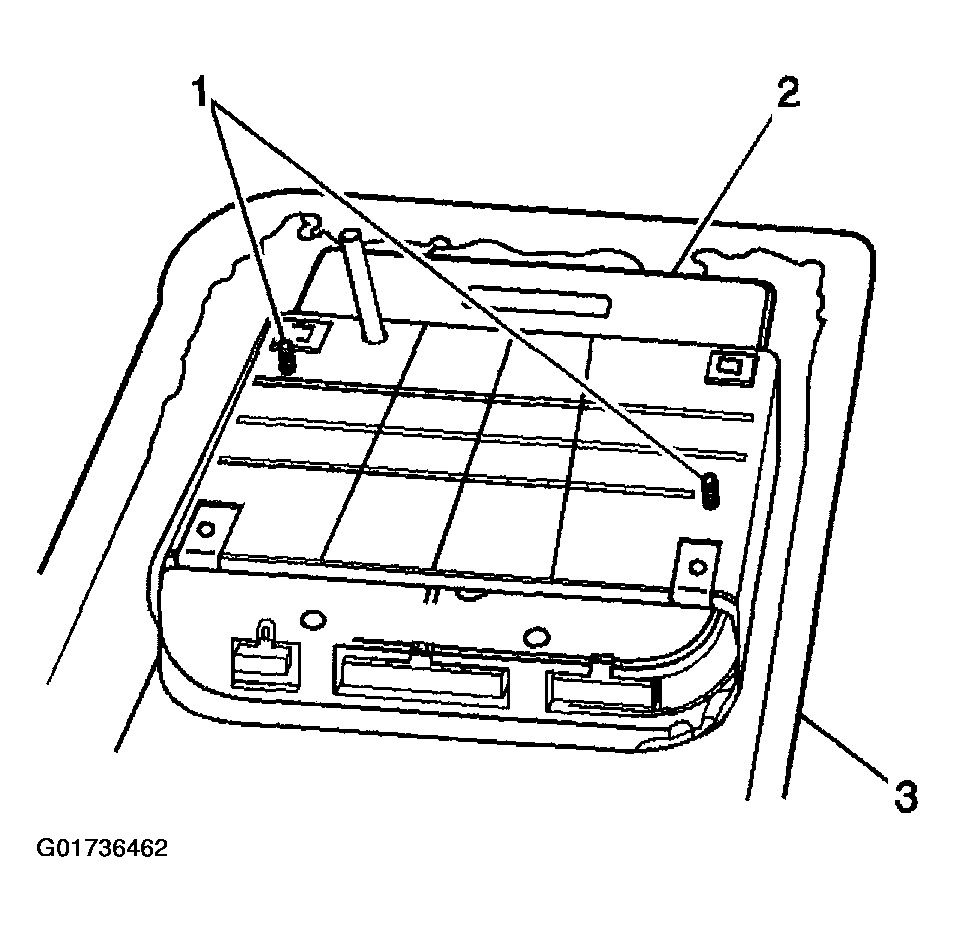

Fig 1: Removing Video Display

Courtesy of GENERAL MOTORS CORP.
