Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

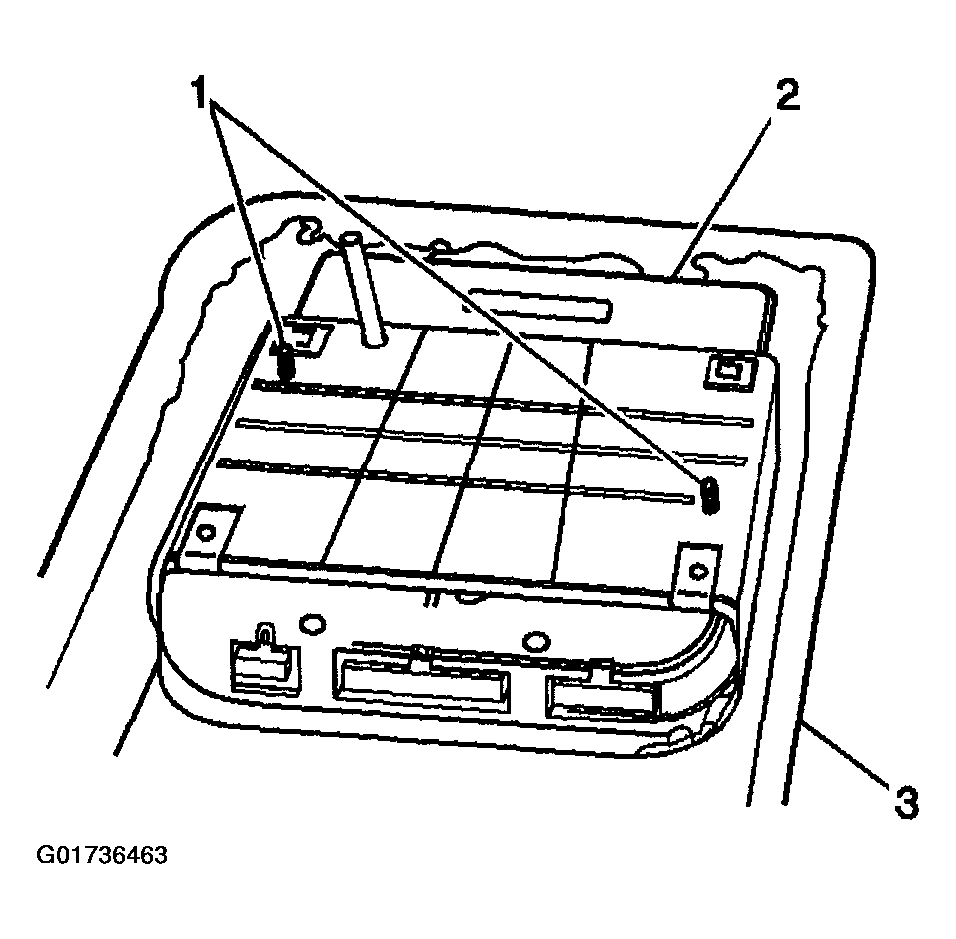

- Slide the video display (2) in the open position into the overhead console (3) through the opening in the front of the overhead console until seated.
- Connect the electrical connectors to the video display.
- Install the overhead console assembly to the vehicle. Refer to OVERHEAD CONSOLE REPLACEMENT - FRONT (LUXURY Y91) or to OVERHEAD CONSOLE REPLACEMENT - REAR (LUXURY Y91) .
