Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the VCP to the IP extension.
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the 2 screws inside the lower storage compartment of the IP extension bezel.
Tighten

Tighten the 2 screws to 2 N.m (18 in lbs).
Install the 3 screws to the top of the IP extension bezel.
Tighten

Tighten the 3 screws to 2 N.m (18 in lbs).

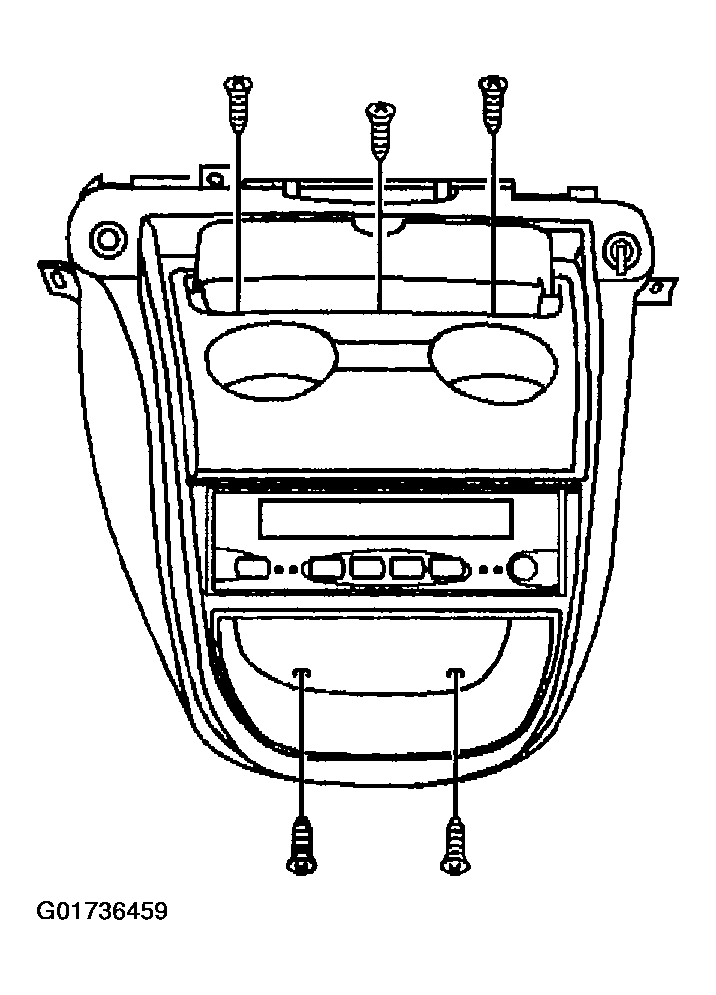

Fig 1: Installing Screws & VCP
Courtesy of GENERAL MOTORS CORP.
Install the screw that is retaining the VCP to the mounting bracket.
Tighten

Tighten the VCP retaining screw to 2 N.m (18 in lbs).

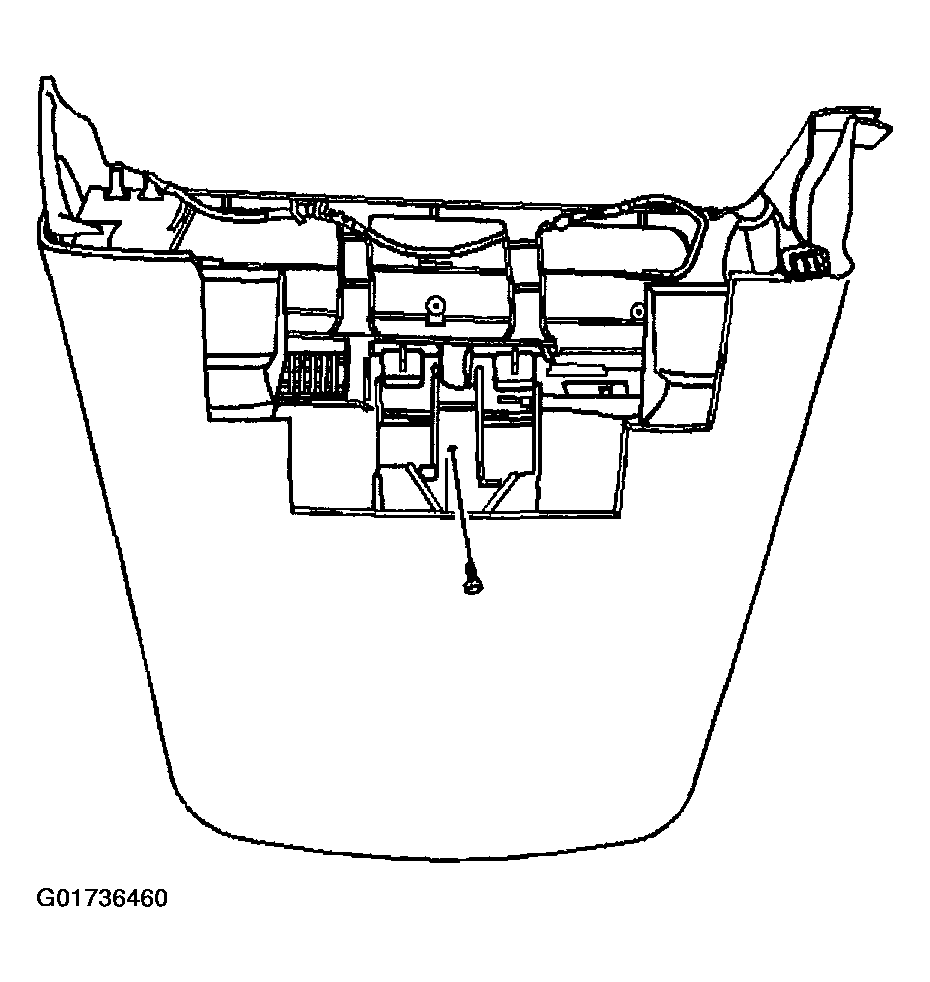

Fig 2: Installing Screw Retaining VCP
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (2) to the VCP.
Install the IP extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .

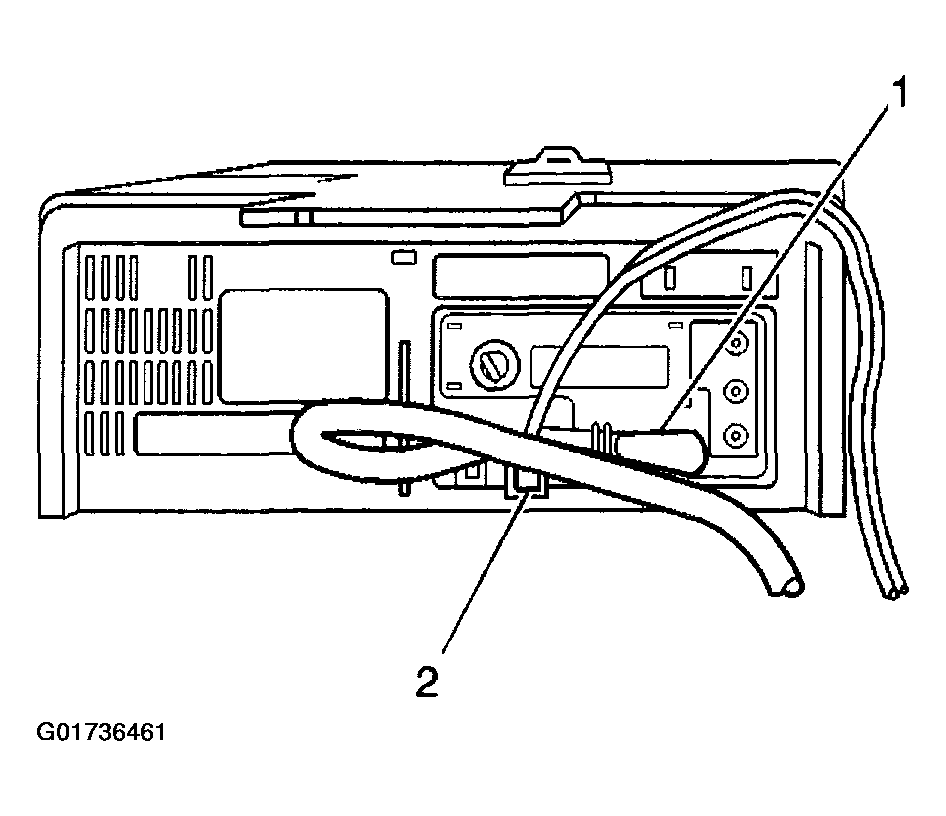

Fig 3: Connecting Electrical Connectors

Courtesy of GENERAL MOTORS CORP.
