Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the speaker.
  2. Install the speaker/housing to the door.
  3. Install the rivets in order to retain the rear door speaker/housing to the door.
  4. Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR - LEFT or TRIM PANEL REPLACEMENT - REAR DOOR - RIGHT .

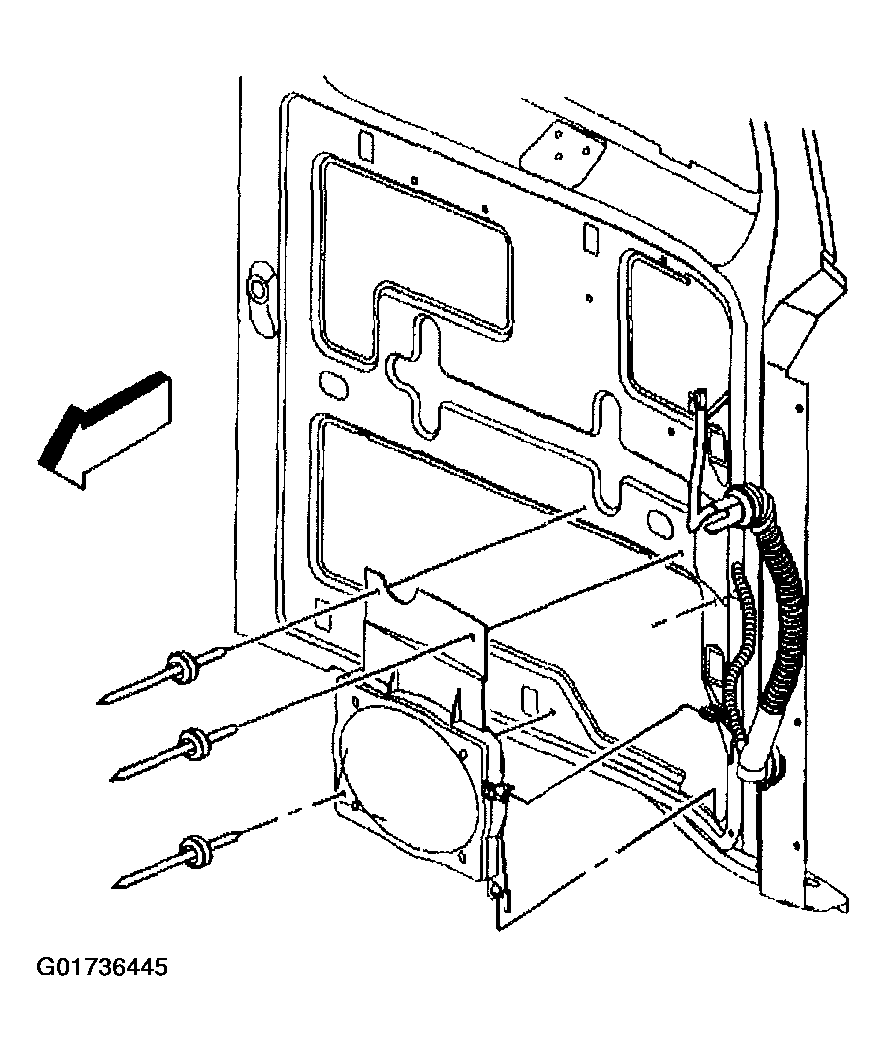

Fig 1: Installing Rivets To Retain Rear Door Speaker/Housing
G01736445Courtesy of GENERAL MOTORS CORP.
