Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .
    WARNING: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
  2. Remove the rivets retaining the speaker/housing to the door using appropriate drill and drill bit.
  3. Remove the speaker/housing from the door.
  4. Disconnect the electrical connector from the speaker housing.

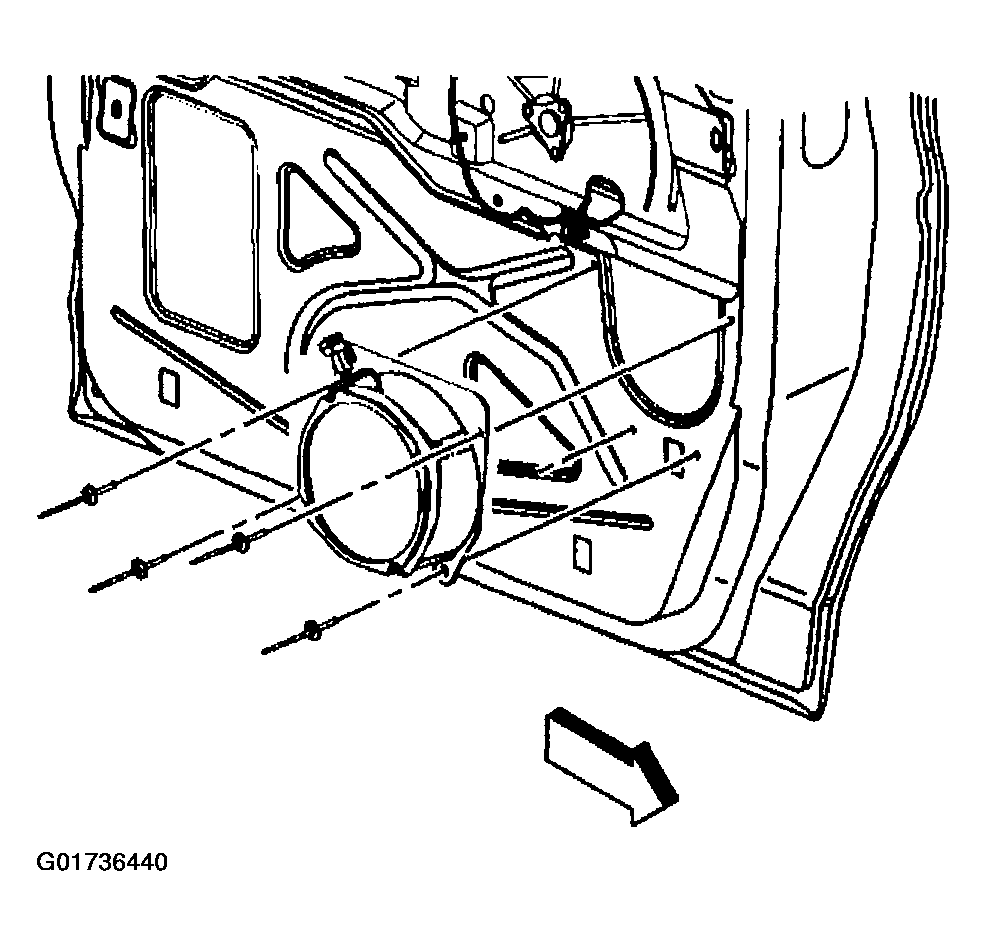

Fig 1: Removing Rivets Retaining Speaker/Housing
G01736440Courtesy of GENERAL MOTORS CORP.
