Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the speaker housing.
  2. Install the speaker/housing to the door.
  3. Install the rivets retaining the speaker housing to the door.
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

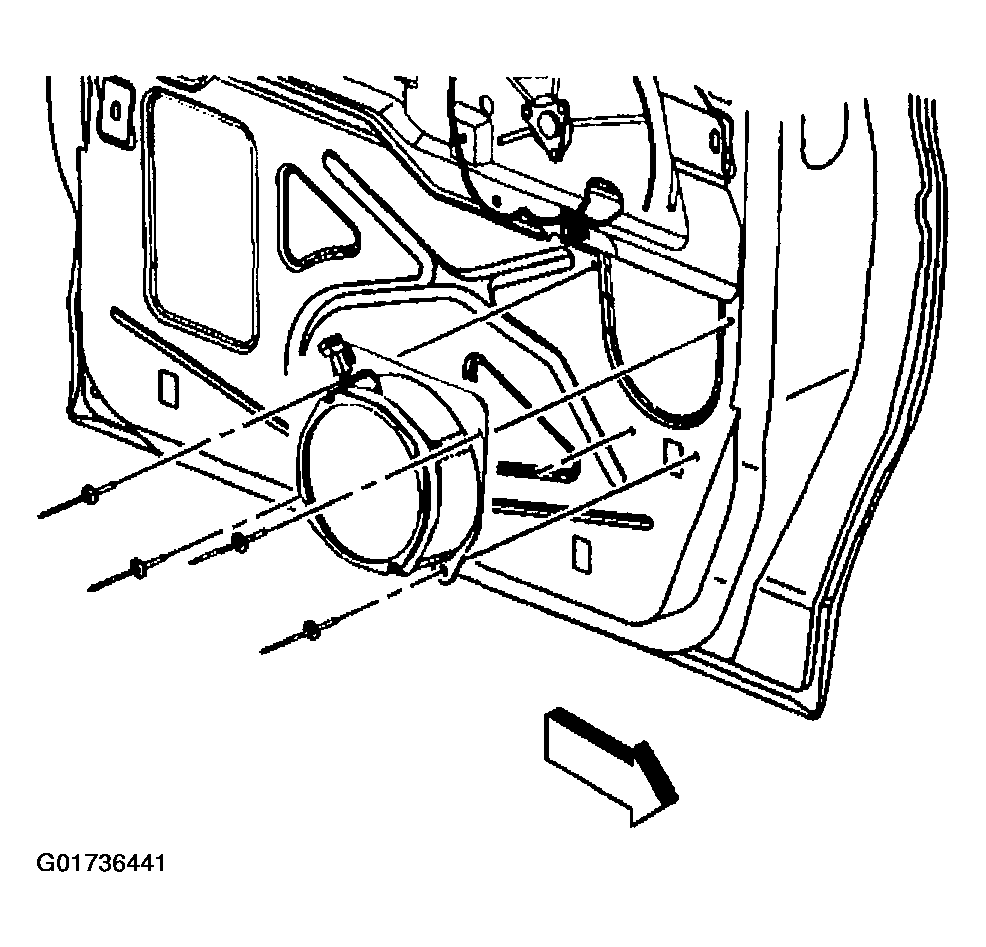

Fig 1: Installing Rivets Retaining Speaker Housing
G01736441Courtesy of GENERAL MOTORS CORP.
