Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim plate (1) from the door trim panel. Refer to DOOR TRIM PLATE REPLACEMENT (MANUAL WINDOWS) or DOOR TRIM PLATE REPLACEMENT (POWER WINDOWS) or DOOR TRIM PLATE REPLACEMENT (SIDE/ REAR DOOR) .
  2. Disconnect the electrical connectors from the following components, if equipped:
    • Power window switch
    • Power mirror switch
    • Power lock switch
  3. Disconnect the electrical connectors (3) from the tweeter (5).
  4. Drill out the heat stakes in order to remove the tweeter.
  5. Remove the tweeter from the front door trim plate.

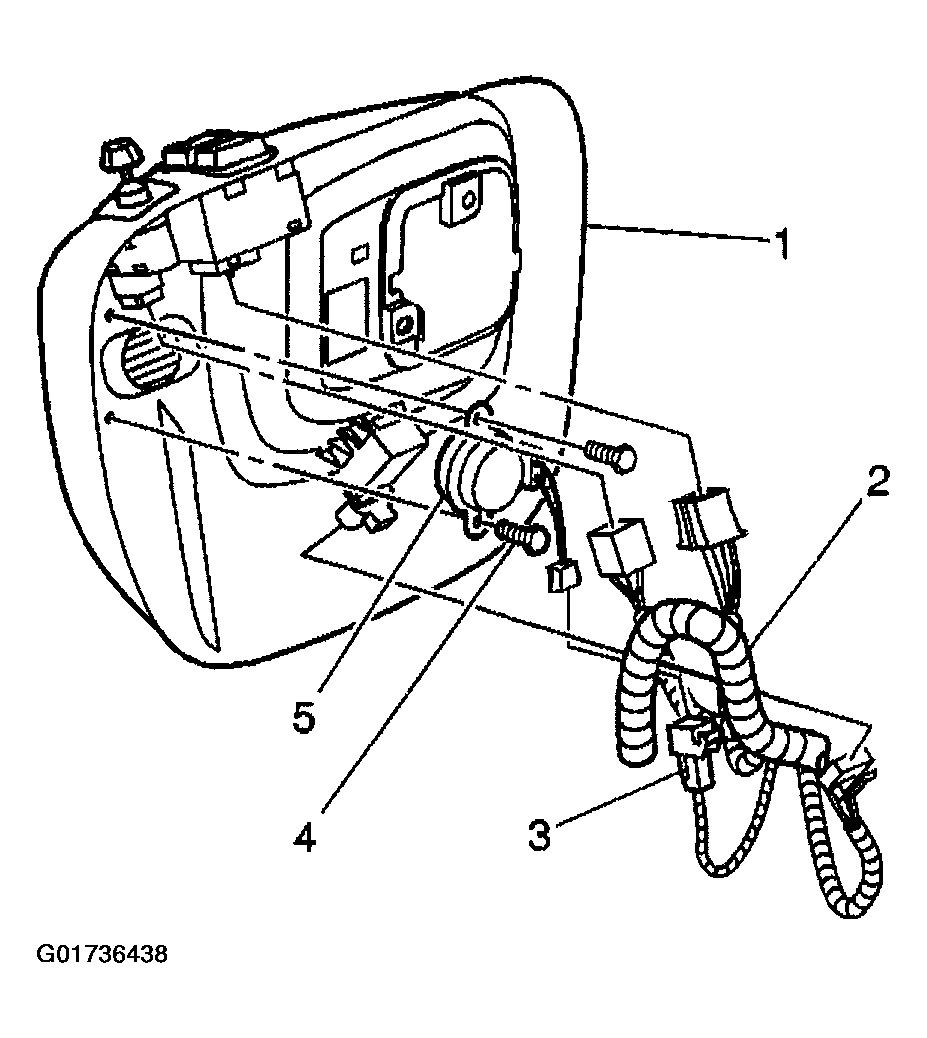

Fig 1: Disconnecting Electrical Connectors
G01736438Courtesy of GENERAL MOTORS CORP.
