Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear seat audio.
  2. Install the rear seat audio to the overhead entertainment console.
  3. Press the rear seat audio until the unit locks into place.

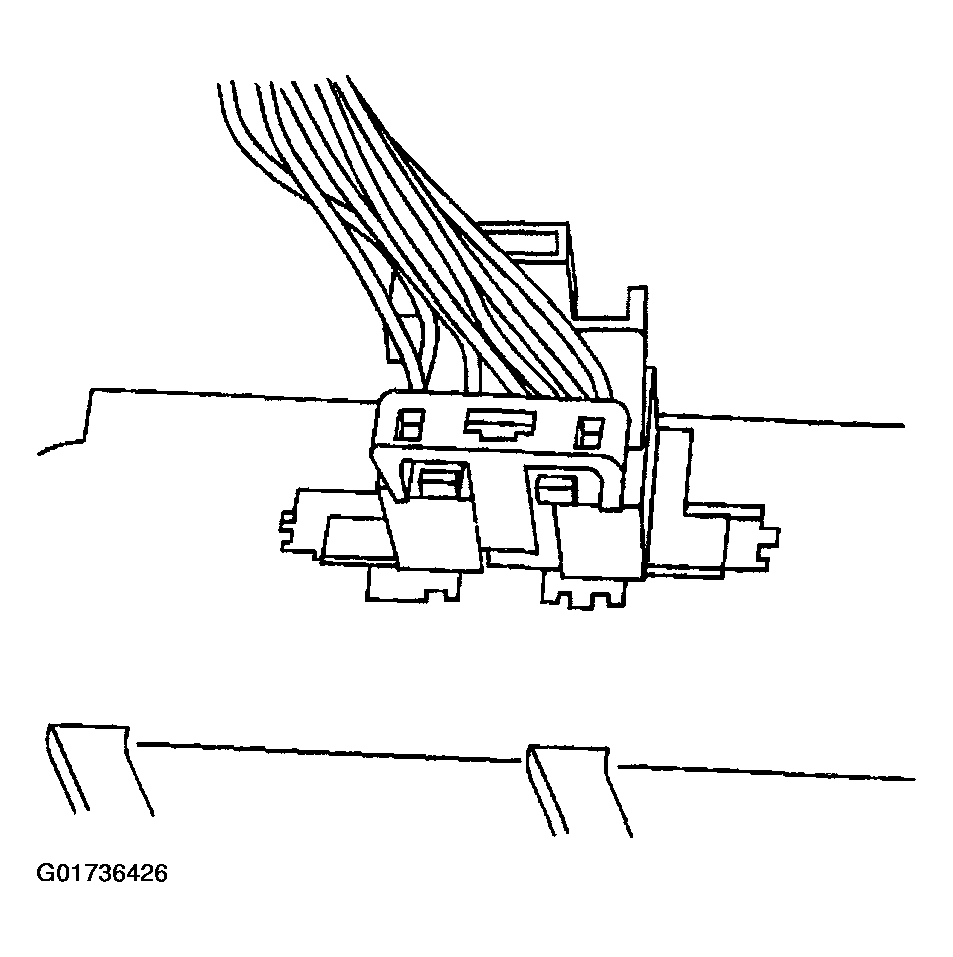

    Fig 1: Connecting Electrical Connector
    G01736426Courtesy of GENERAL MOTORS CORP.
