Video Entertainment System Wireless Headphone Inoperative

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

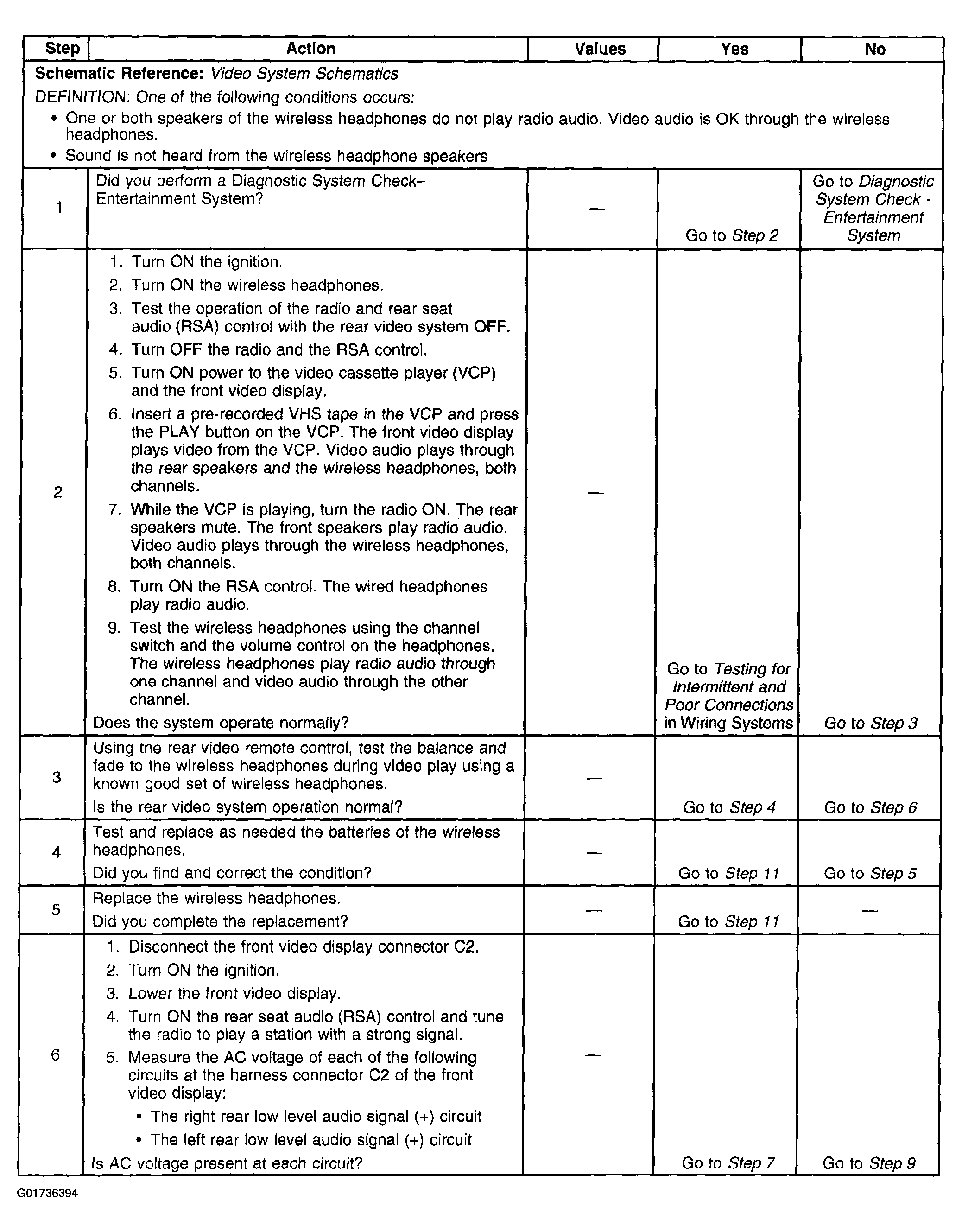

Fig 1: Video Entertainment System Wireless Headphone Inoperative (1 Of 2)
G01736394Courtesy of GENERAL MOTORS CORP.

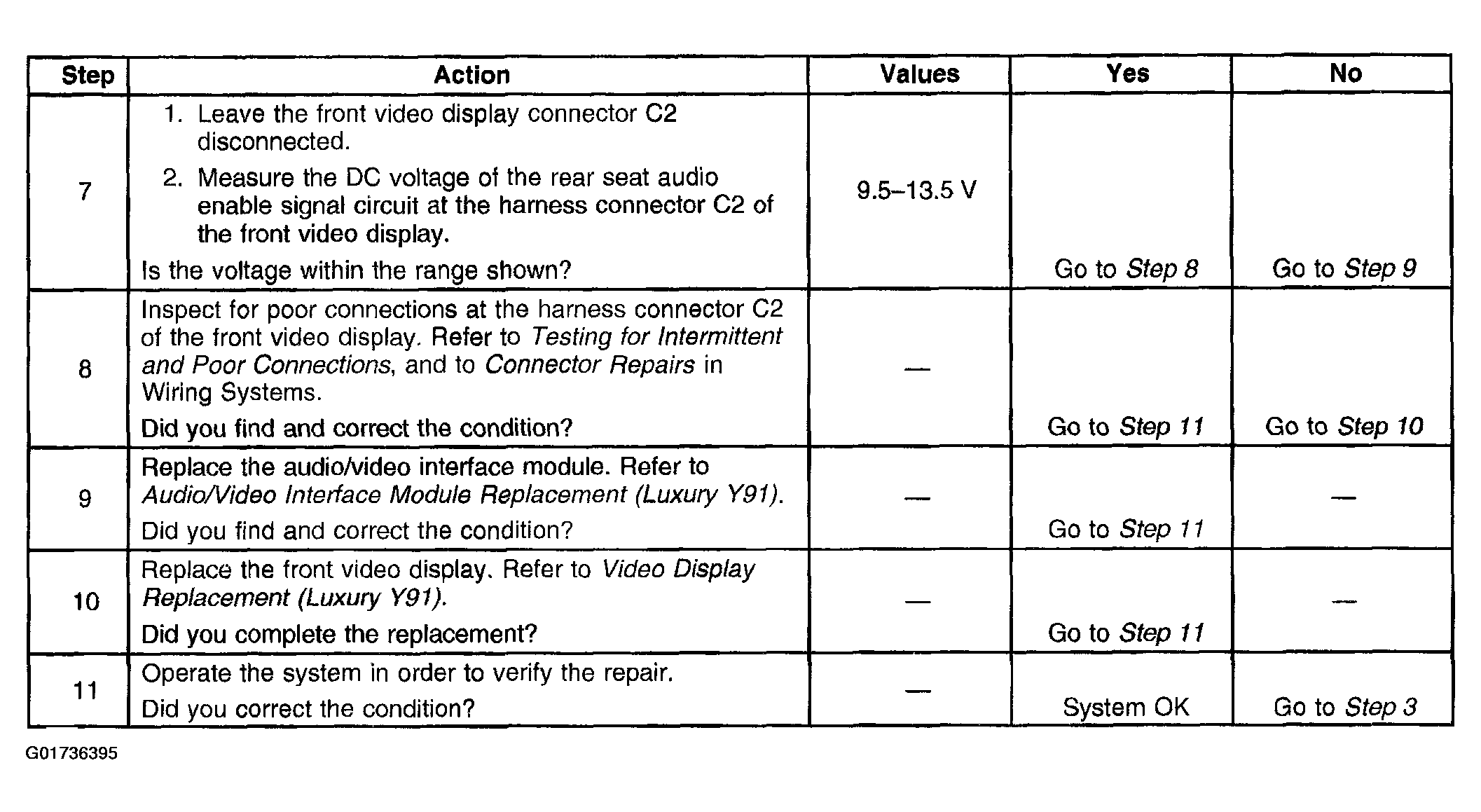

Fig 2: Video Entertainment System Wireless Headphone Inoperative (2 Of 2)
G01736395Courtesy of GENERAL MOTORS CORP.
