Video Audio Inoperative

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

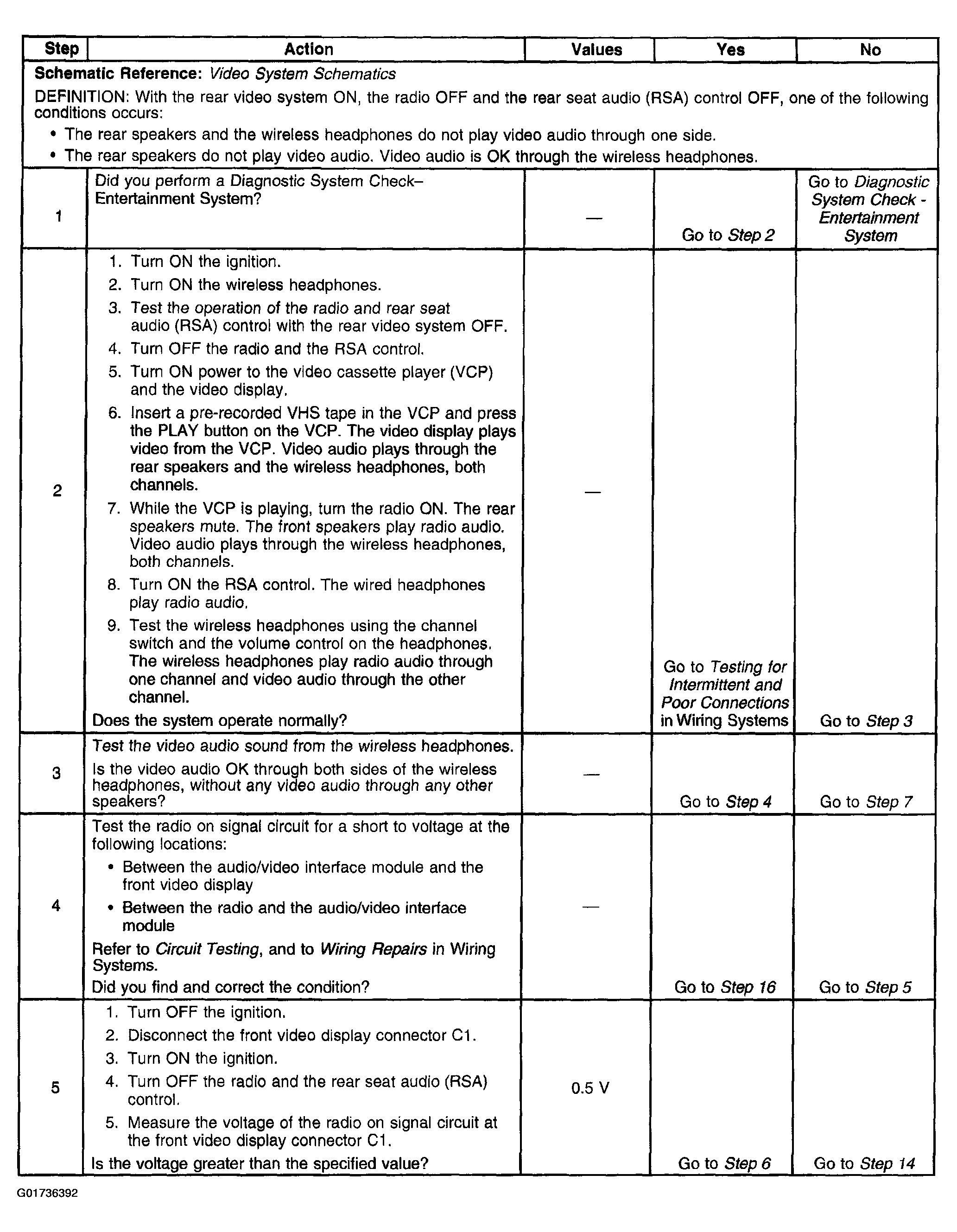

Fig 1: Video Audio Inoperative (1 Of 2)
G01736392Courtesy of GENERAL MOTORS CORP.

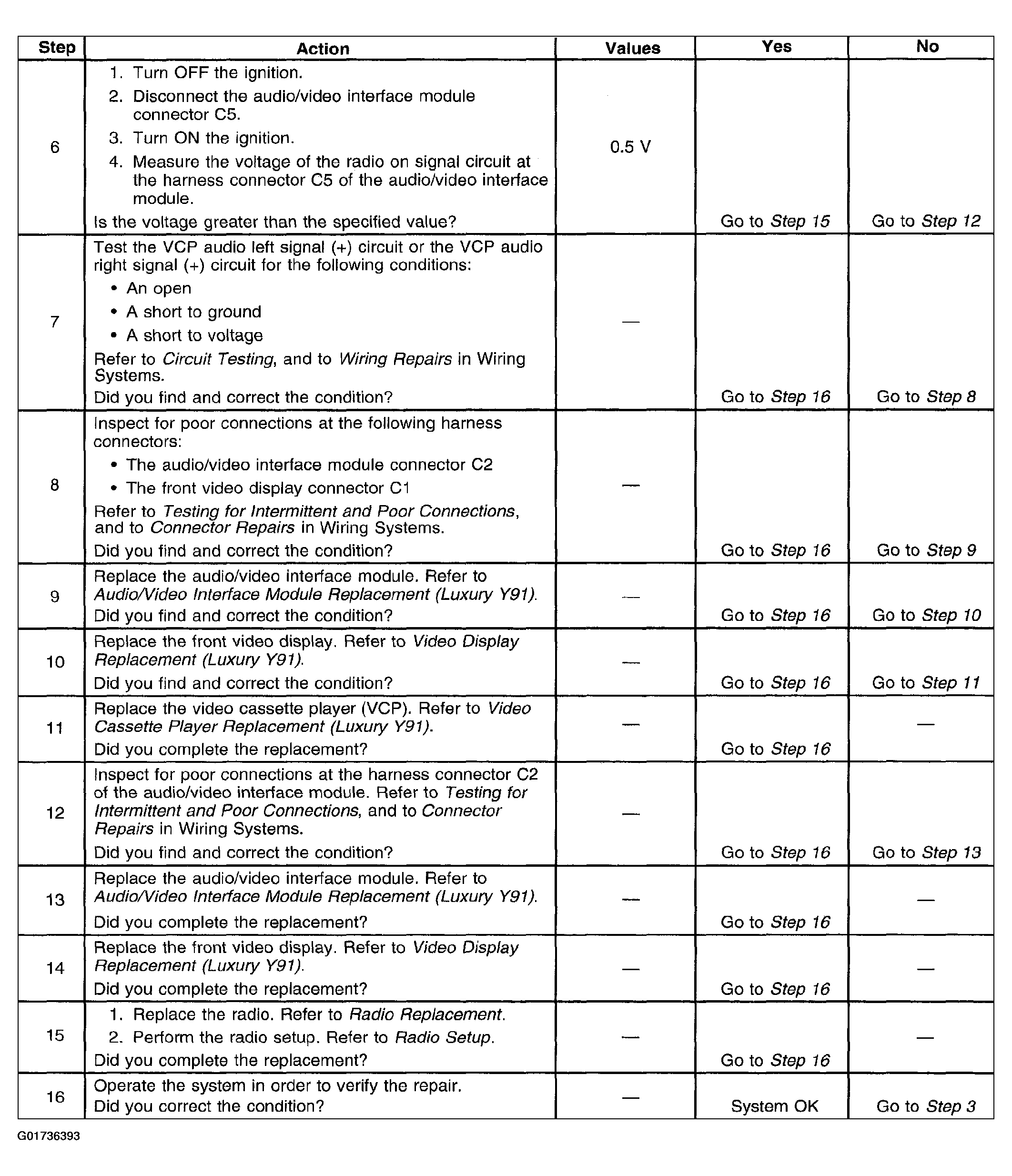

Fig 2: Video Audio Inoperative (2 Of 2)
G01736393Courtesy of GENERAL MOTORS CORP.
