Auxiliary Video Display Is Poor Or Blank (Rear Display)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

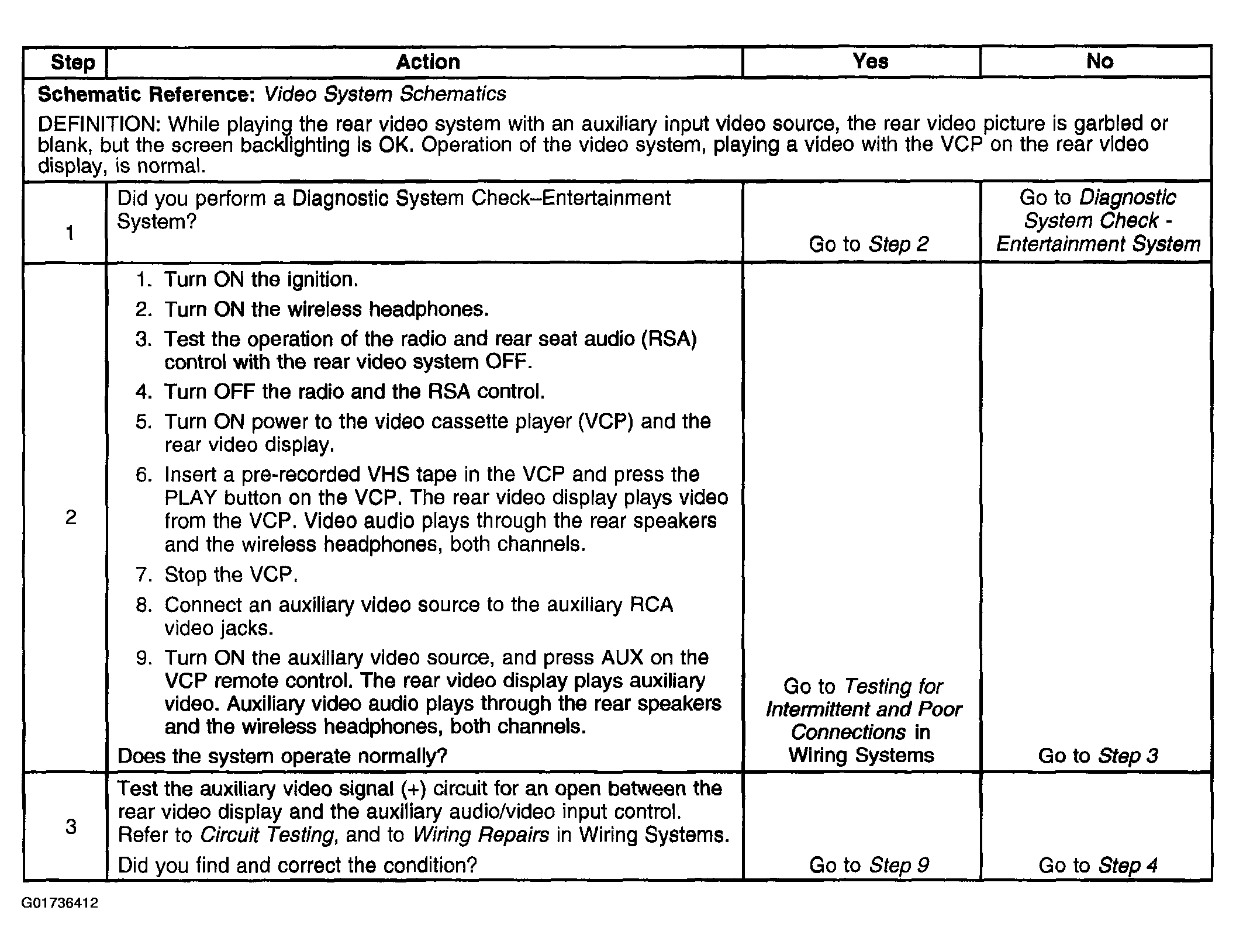

Fig 1: Auxiliary Video Display Is Poor Or Blank (Rear Display) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

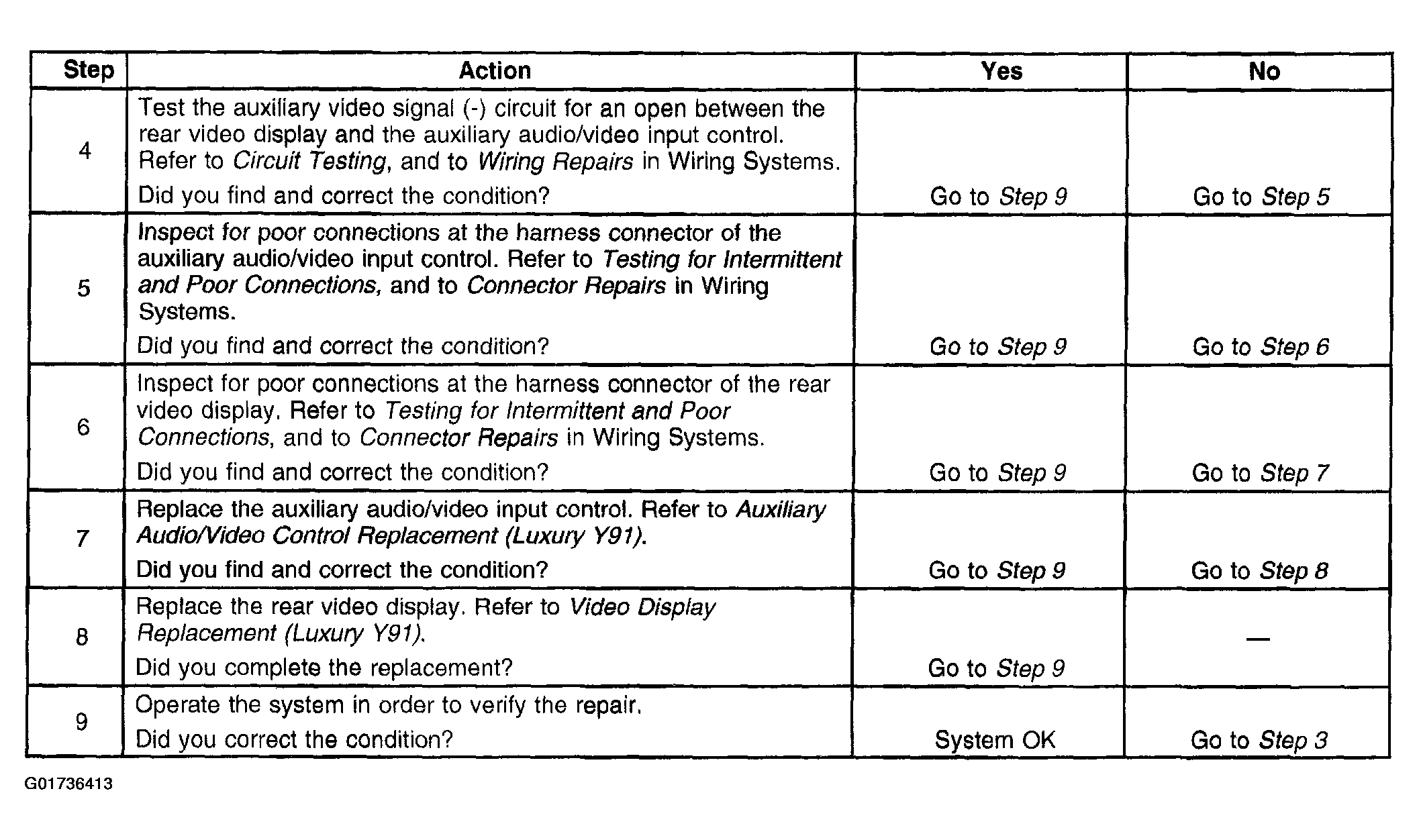

Fig 2: Auxiliary Video Display Is Poor Or Blank (Rear Display) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
