Video Display Indicators
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

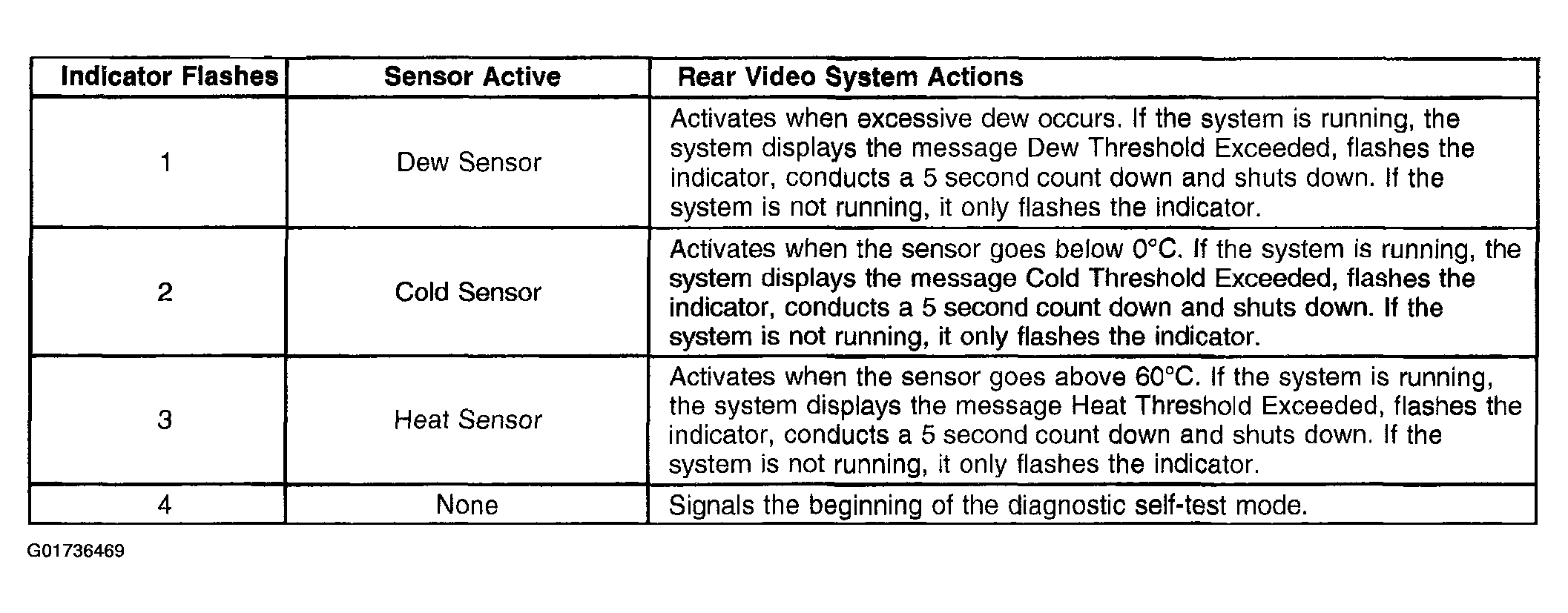

The video display is equipped with a red power indicator that illuminates continuously whenever the display is on. This indicator is designed to flash a code of 1, 2 or 3 flashes if a fault condition occurs, sensed by a dew sensor or a temperature sensor. The following chart summarizes the indicator flashing codes, what each code means, and the resulting rear video system actions.
