Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shoulder/seat belt guide retaining bolt from the shoulder belt guide adjuster.
  2. Remove the shoulder/seat belt guide from the shoulder belt guide adjuster.
  3. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  4. Remove the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
    Fig 1: Removing Seat Belt Guide
    G01737587Courtesy of GENERAL MOTORS CORP.
  5. Remove the shoulder/seat belt retractor retaining bolt from the lower pillar.
  6. Remove the shoulder/seat belt retractor assembly from the vehicle.

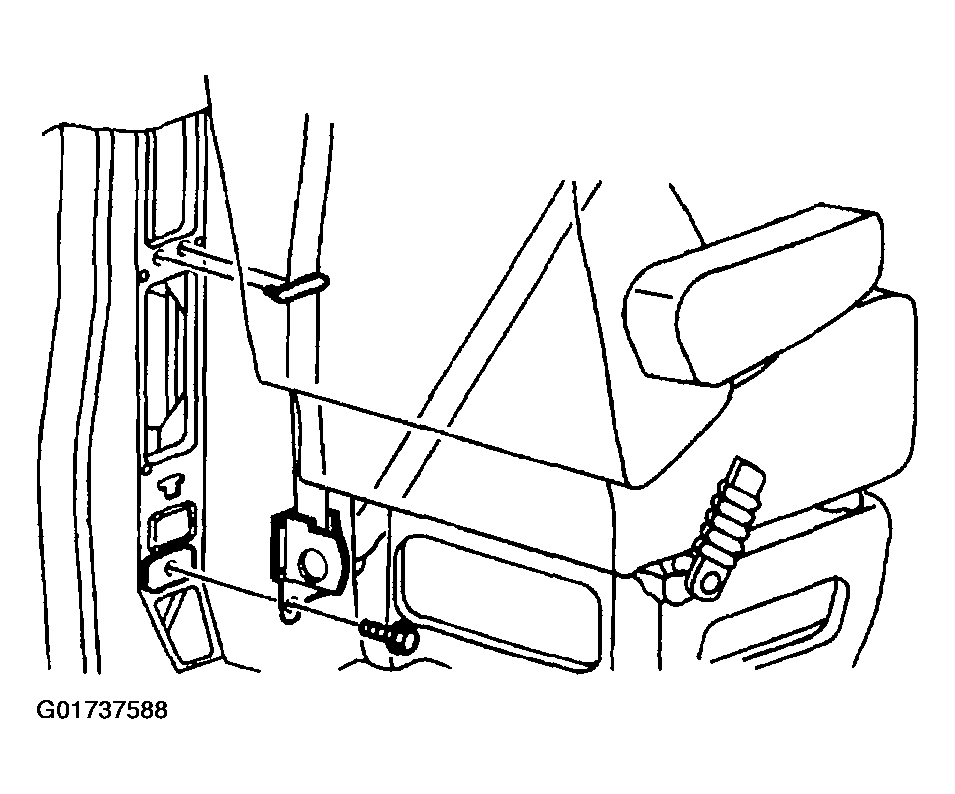

    Fig 2: Removing Shoulder/Seat Belt Retractor Assembly
    G01737588Courtesy of GENERAL MOTORS CORP.
