Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shoulder/seat belt retractor assembly to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the shoulder/seat belt retractor retaining bolt to the lower pillar.

    Tighten

    Tighten the shoulder/seat belt retractor retaining bolt to 52 N.m (38 ft lbs).

  3. Install the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  4. Install the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .

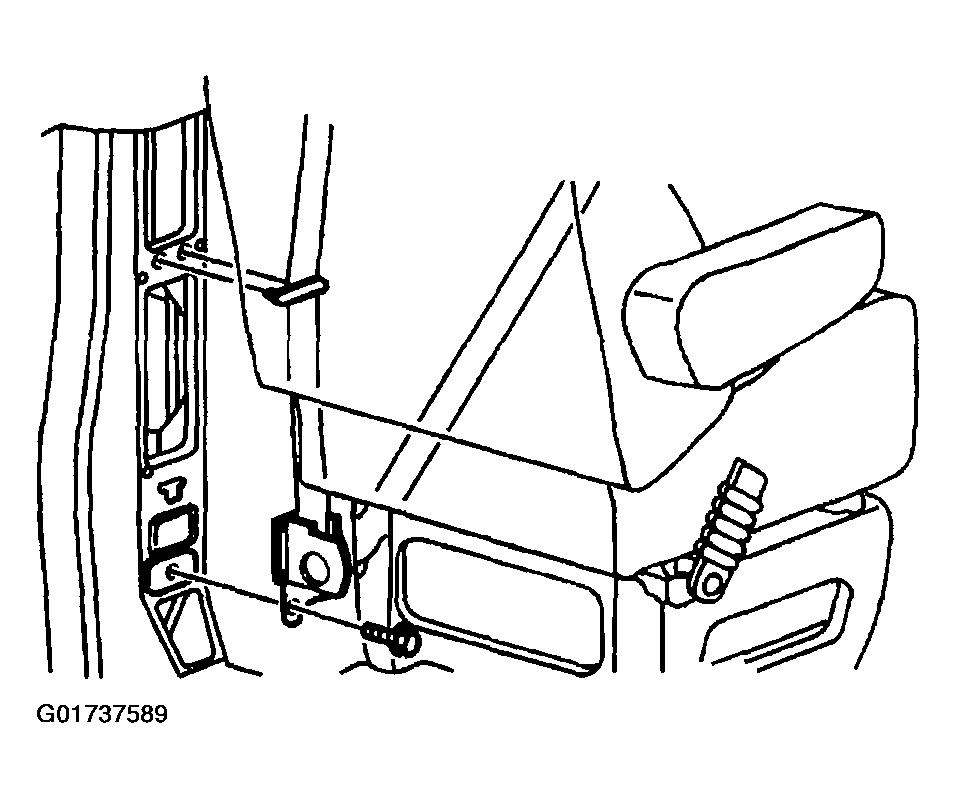

    Fig 1: Installing Shoulder/Seat Belt Retractor Assembly
    G01737589Courtesy of GENERAL MOTORS CORP.
  5. Install the shoulder/seat belt guide to the shoulder belt guide adjuster.
  6. Install the upper shoulder/seat belt guide retaining bolt to the vehicle.

    Tighten

    Tighten the upper shoulder/seat belt guide retaining bolt to 52 N.m (38 ft lbs).

Fig 2: Installing Shoulder/Seat Belt Guide
G01737590Courtesy of GENERAL MOTORS CORP.
