Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckles for the child seat, positioning the anchor to the rear of the seat to extend beyond the seat and the cushion. Refer to Seat Belt Buckle Replacement - Rear (All Except Luxury)  or Seat Belt Buckle Replacement - Rear (Luxury (Y91))  .
  2. Install the child seat.
  3. Fasten the child seat top tether to the top tether anchor (1).

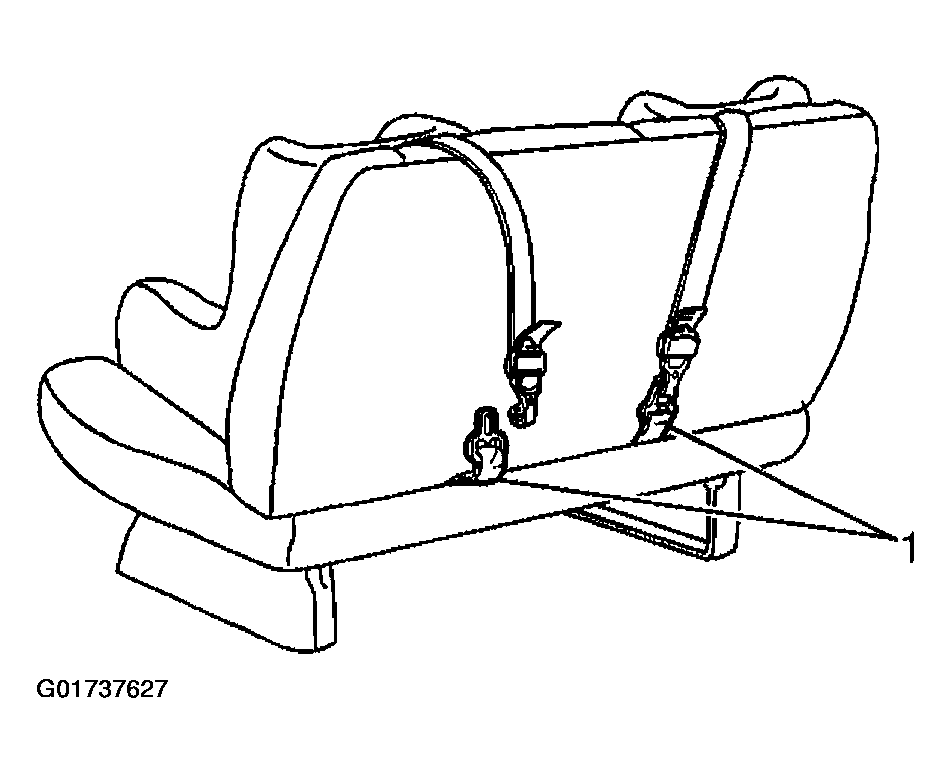

    Fig 1: Fastening Child Seat Top Tether
    G01737627Courtesy of GENERAL MOTORS CORP.
