Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
  5. Remove the shoulder belt guide adjuster bracket bolts.

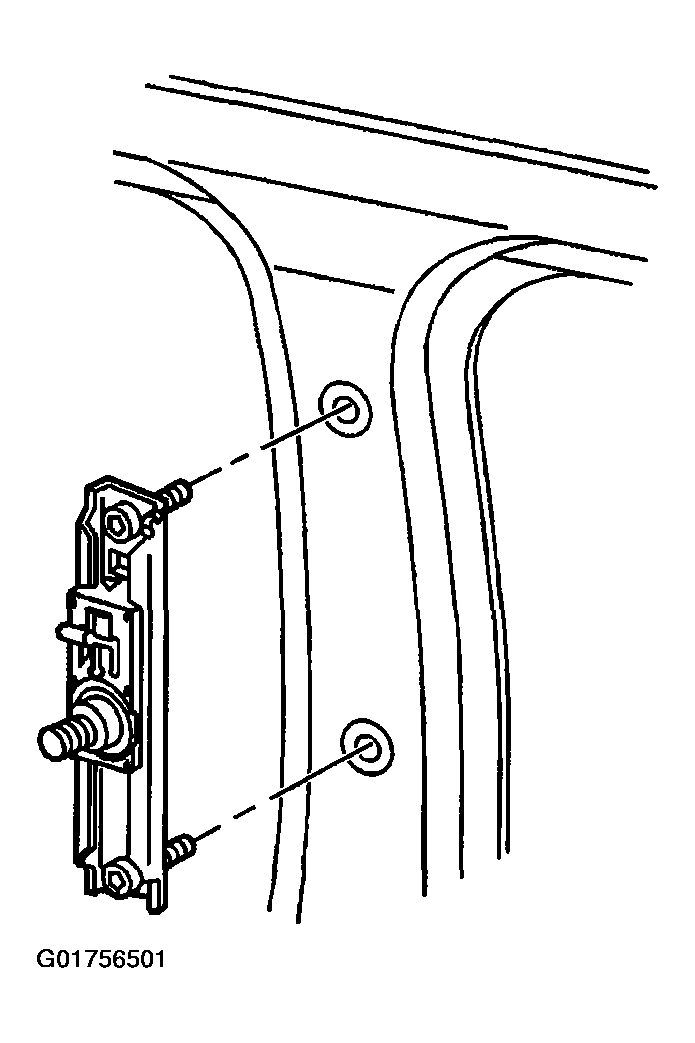

    6. Fig 1: Identifying Front Shoulder Belt Guide Adjuster
    G01756501Courtesy of GENERAL MOTORS CORP.
  6. Remove the shoulder belt guide adjuster bracket from the center pillar.
