Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

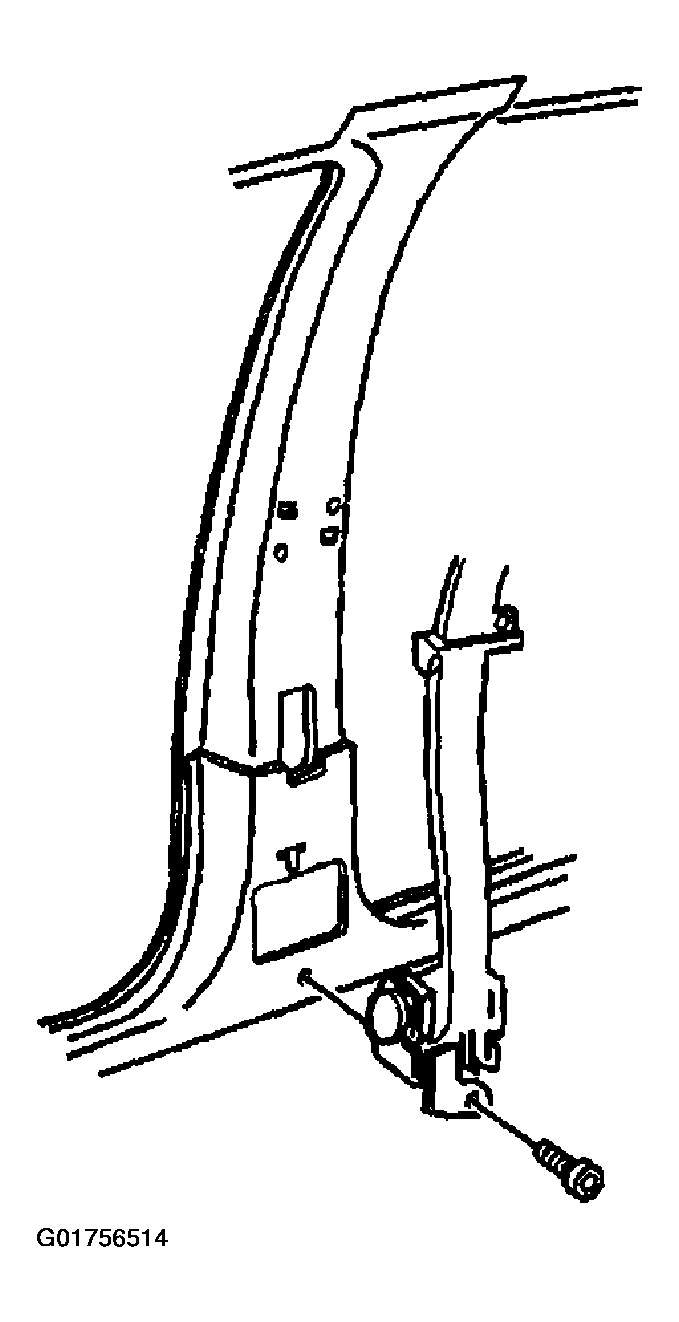

  1. Install the seat belt retractor into the T-slot in the center pillar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retractor side seat belt bolt. See Figure. Tighten the retractor side belt bolt to 68 N.m (50 ft lbs).
  3. Install the intermediate guide bolts. Tighten the intermediate guide bolts to 10 N.m (89 in lbs).
    Fig 1: Identifying Intermediate Guide Bolts
    G01756516Courtesy of GENERAL MOTORS CORP.
  4. Position the anchor plate to the seat stud.

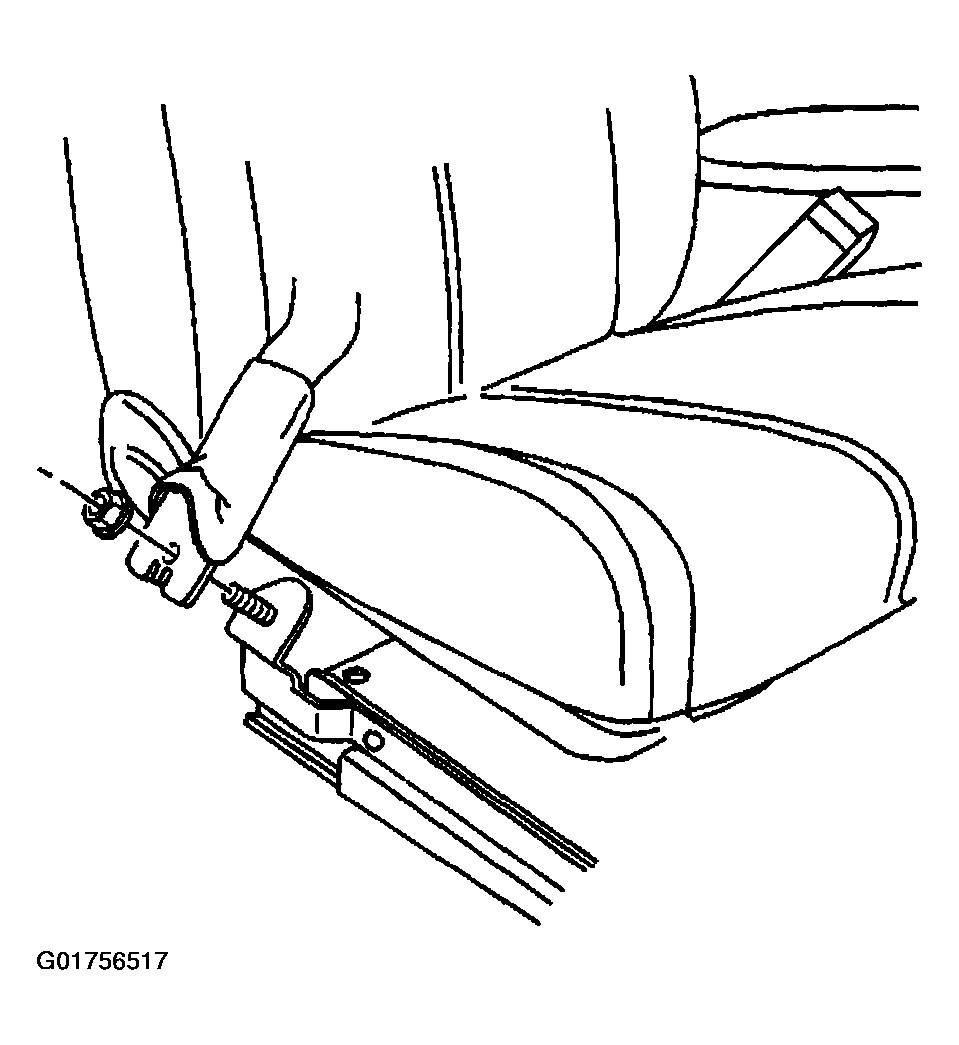

    Fig 2: Identifying Seat Stud Anchor Plate Nut
    G01756517Courtesy of GENERAL MOTORS CORP.
  5. Install the anchor plate nut to the seat stud. Tighten the anchor plate nut to 42 N.m (31 ft lbs).
  6. Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR .
  7. Position the guide loop to the guide adjuster bracket.
  8. Install the guide loop nut. Tighten the guide loop nut to 42 N.m (31 ft lbs).

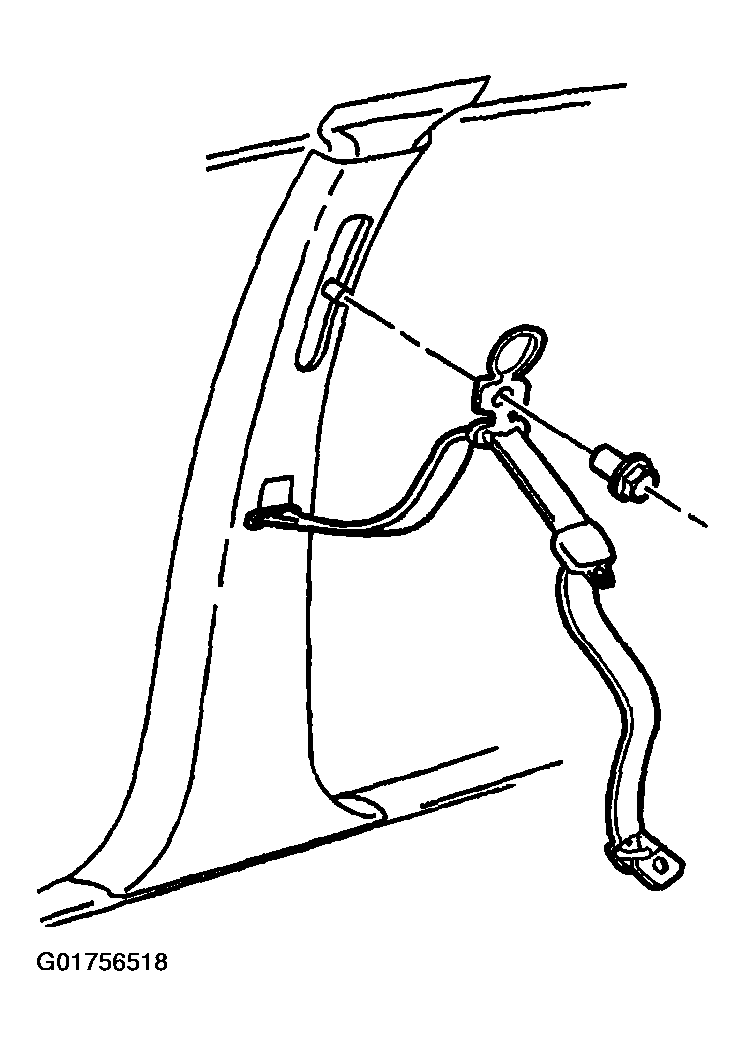

    9. Fig 3: Identifying Right Front Seat Belt Retractor Guide Loop Nut
    G01756518Courtesy of GENERAL MOTORS CORP.
  9. Close the guide loop cover.
