Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat belt buckle to the right front seat.

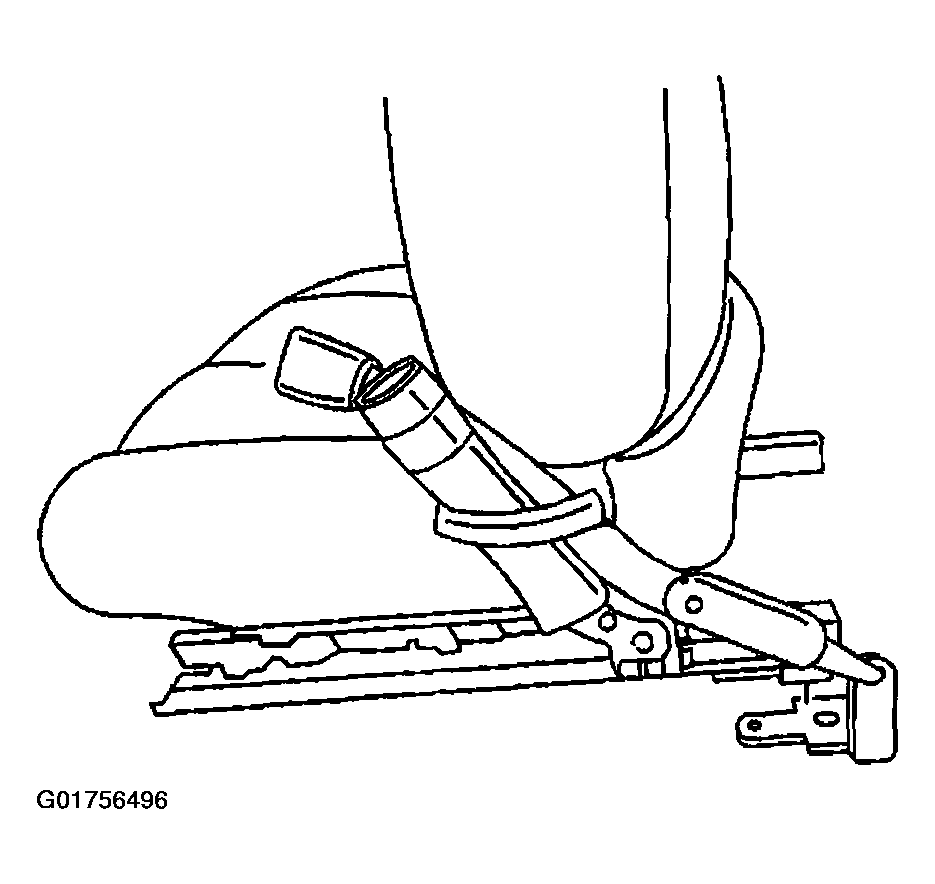

    Fig 1: Identifying Right Front Seat Belt Buckle
    G01756496Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the seat belt buckle nut. Tighten the seat belt buckle nut to 42 N.m (31 ft lbs).
  3. Position the right front seat to the original position.
