Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle to the left front seat.

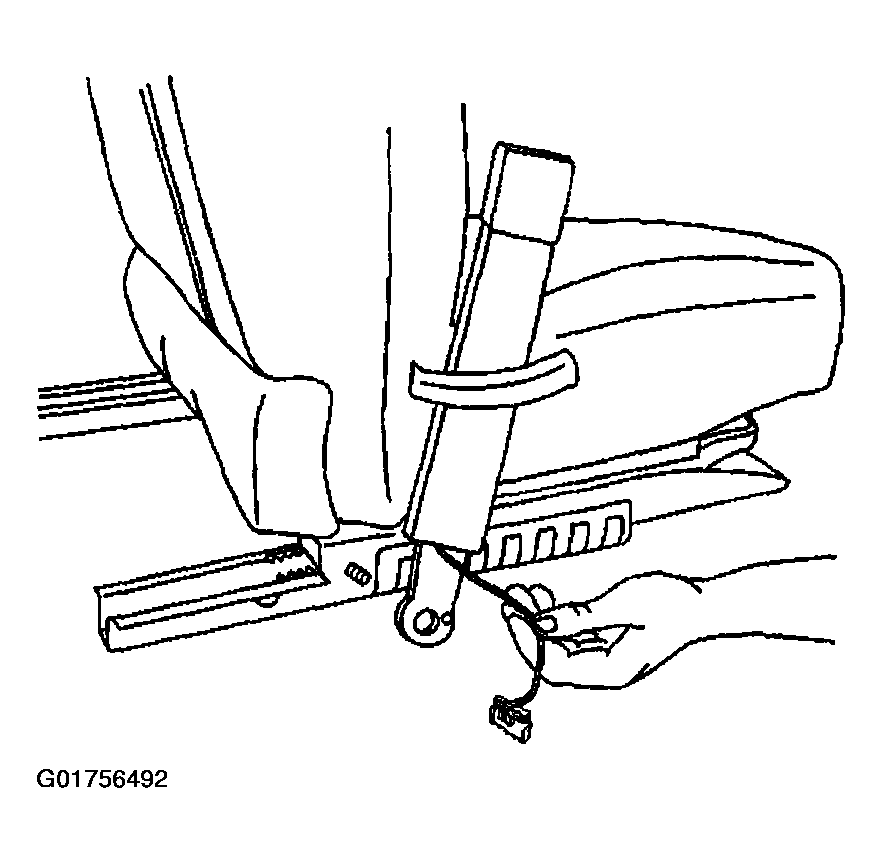

    2. Fig 1: Identifying Left Front Seat Belt Buckle
    G01756492Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the seat belt buckle nut. Tighten the seat belt buckle nut to 42 N.m (31 ft lbs).
  4. Position the left front seat to the original position.
