Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push back the rear seat back.
  2. Remove the push-pin retainer from the rear shoulder belt guide using the J 38778.

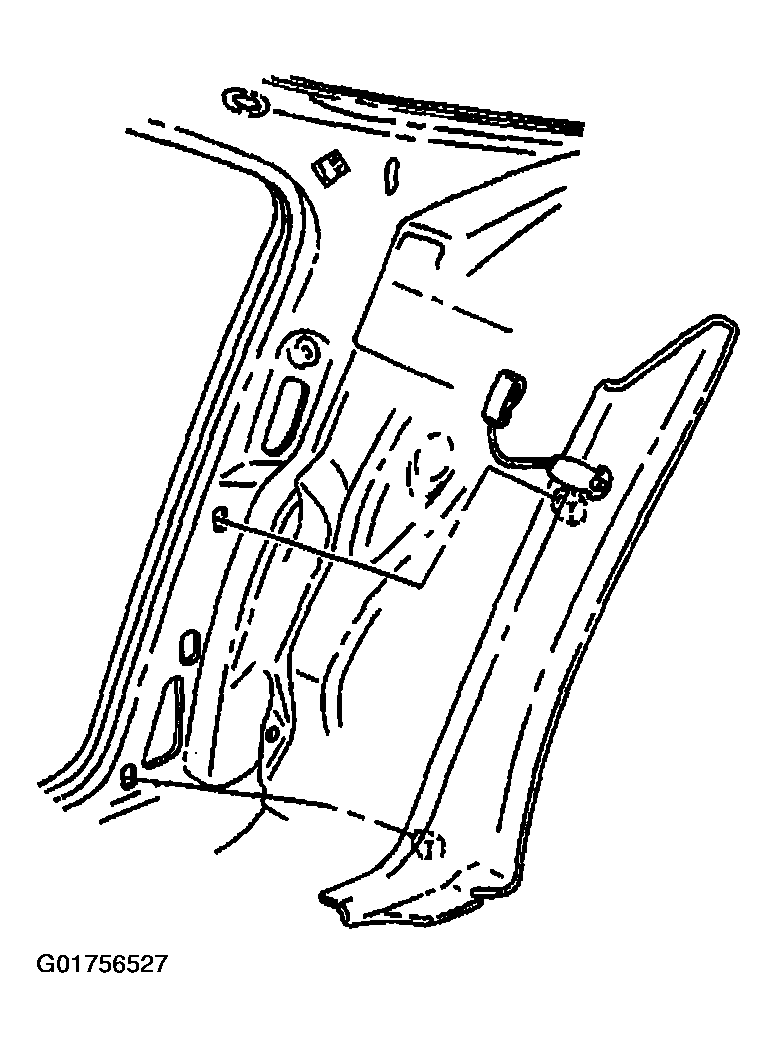

    3. Fig 1: Identifying Rear Child Shoulder Belt Guide Rerouter
    G01756527Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear shoulder belt guide from the lower rear quarter trim panel.
