Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment convenience net, if equipped, from the plastic wingnut retainers.

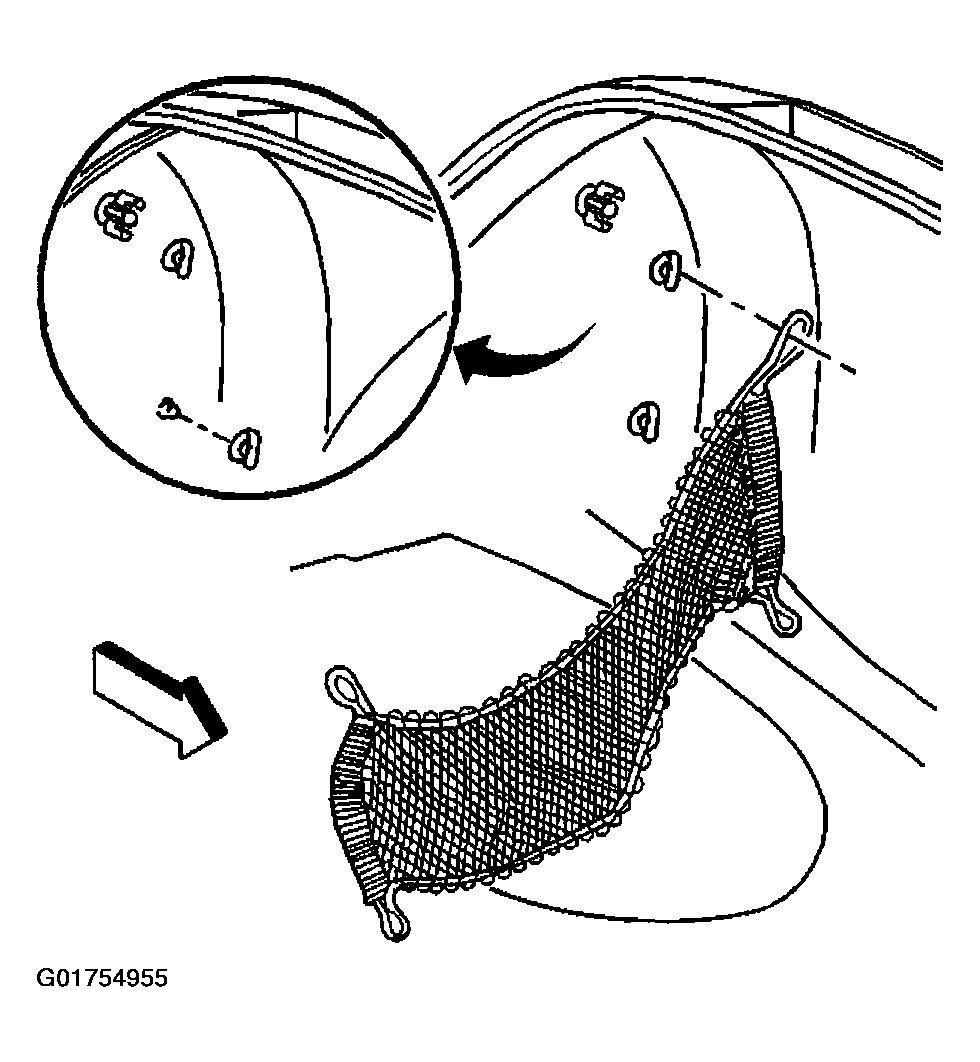

    Fig 1: Identifying Rear Compartment Convenience Net
    G01754955Courtesy of GENERAL MOTORS CORP.
  3. Remove the visible plastic wingnut retaining the tail lamp.

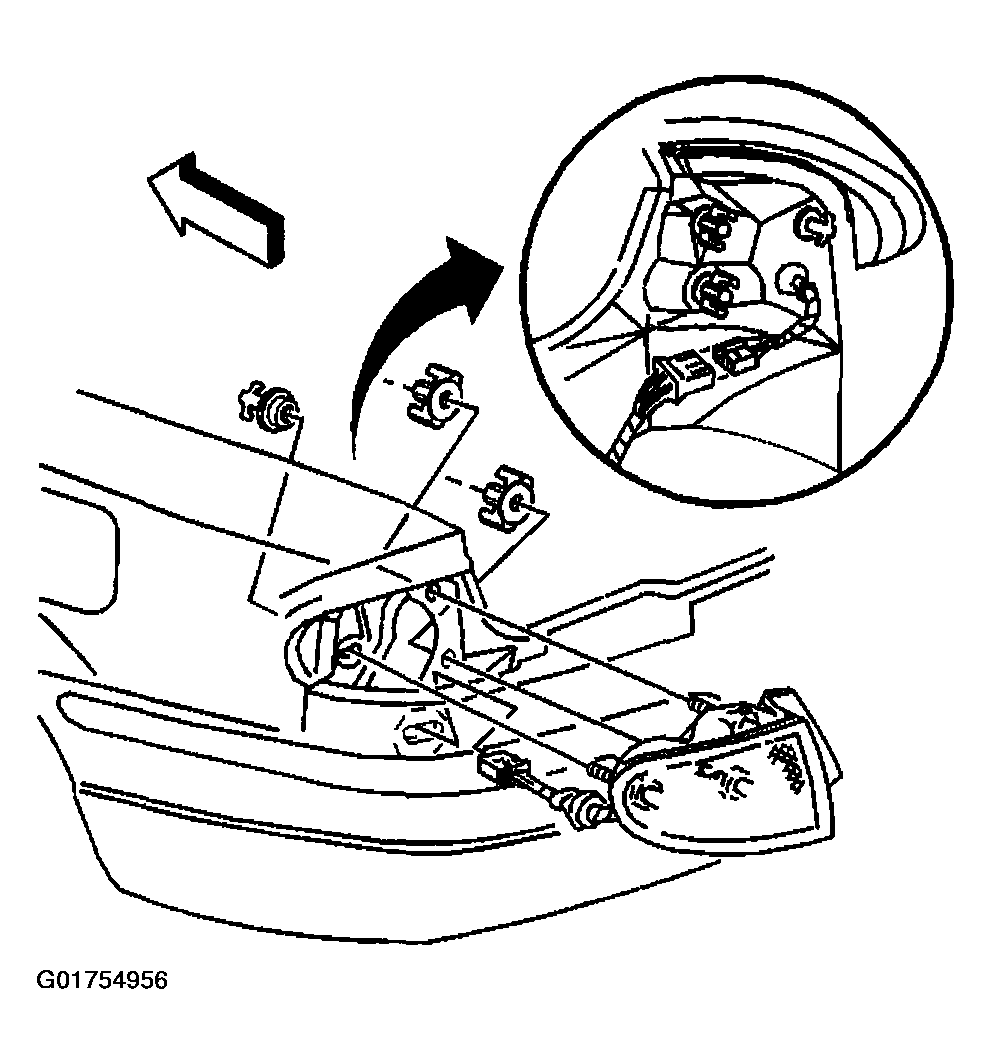

    4. Fig 2: Identifying Tail Lamp Plastic Wingnuts
    G01754956Courtesy of GENERAL MOTORS CORP.
  4. Pull back the corner of the rear compartment trim panel to access the remaining plastic wingnuts.
  5. Apply light pressure to the tail lamp lens to retain the lamp in position during removal of the remaining plastic wingnut retainers.
  6. Remove the remaining plastic wingnuts retaining the tail lamp.
  7. Remove the tail lamp assembly from the rear body panel and support the tail lamp assembly.

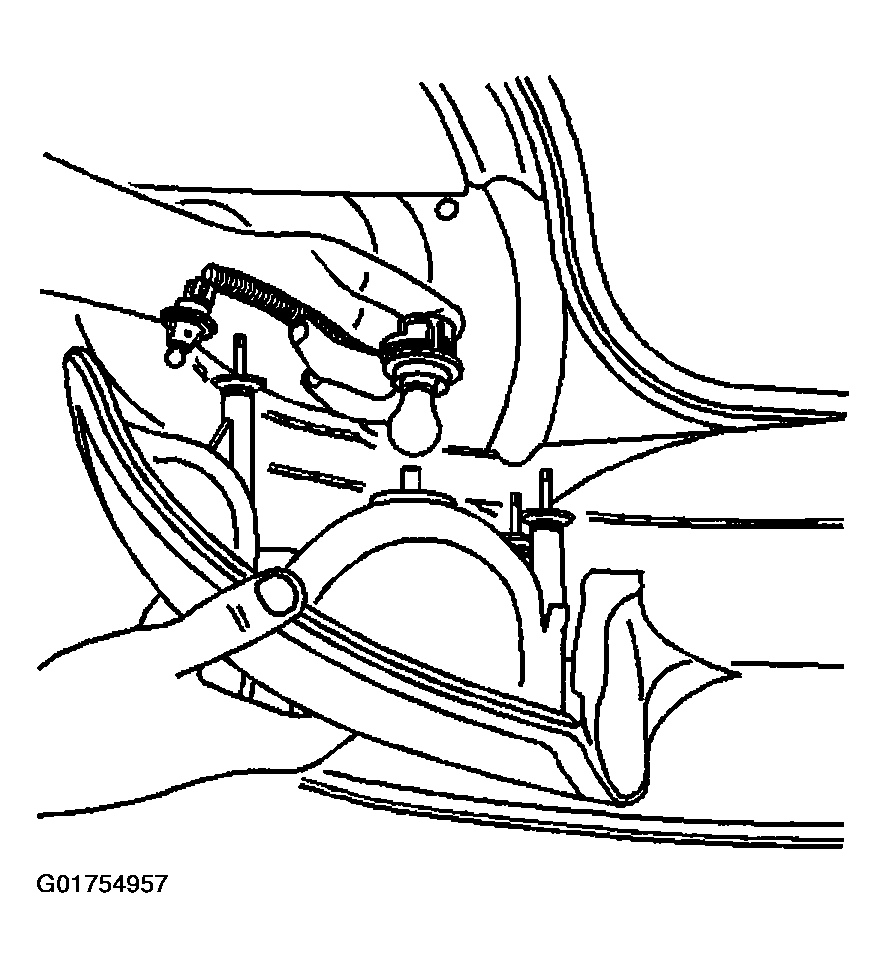

    8. Fig 3: Identifying Tail Lamp Assembly
    G01754957Courtesy of GENERAL MOTORS CORP.
  8. Rotate the lamp sockets counterclockwise to remove them from the tail lamp housing.
  9. Remove the tail lamp housing assembly.
  10. Remove the tail lamp bulbs from the sockets, if required.
