Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws from the assist handle.

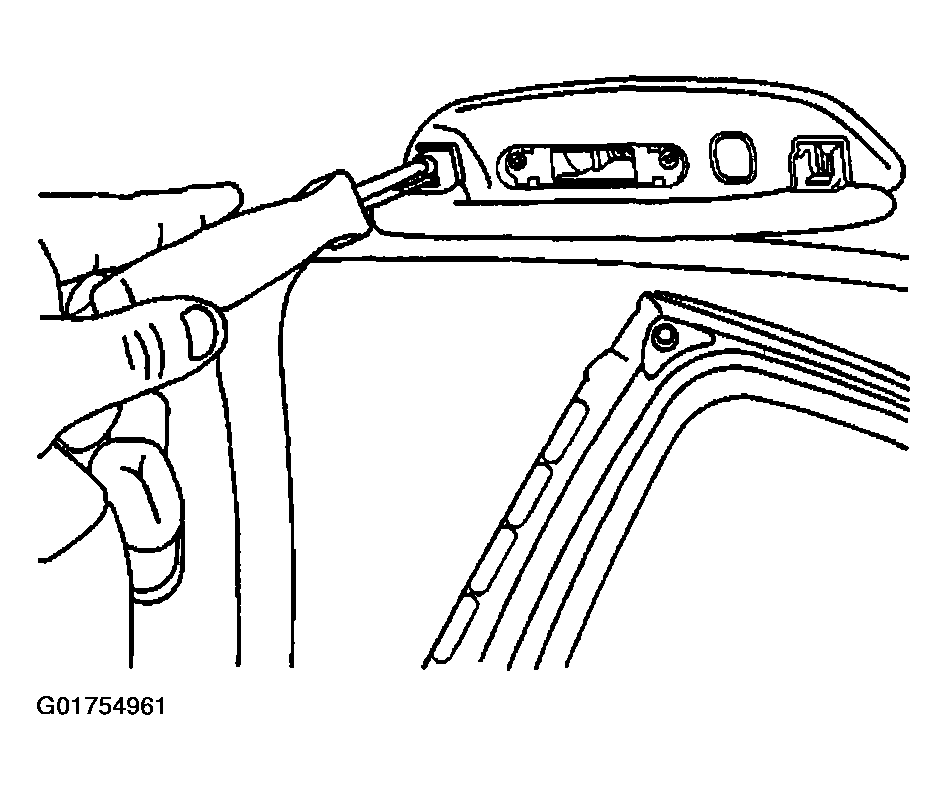

Fig 1: Identifying Assist Handle Screws
Courtesy of GENERAL MOTORS CORP.
Remove the side rail lamp/assist handle from the roof.

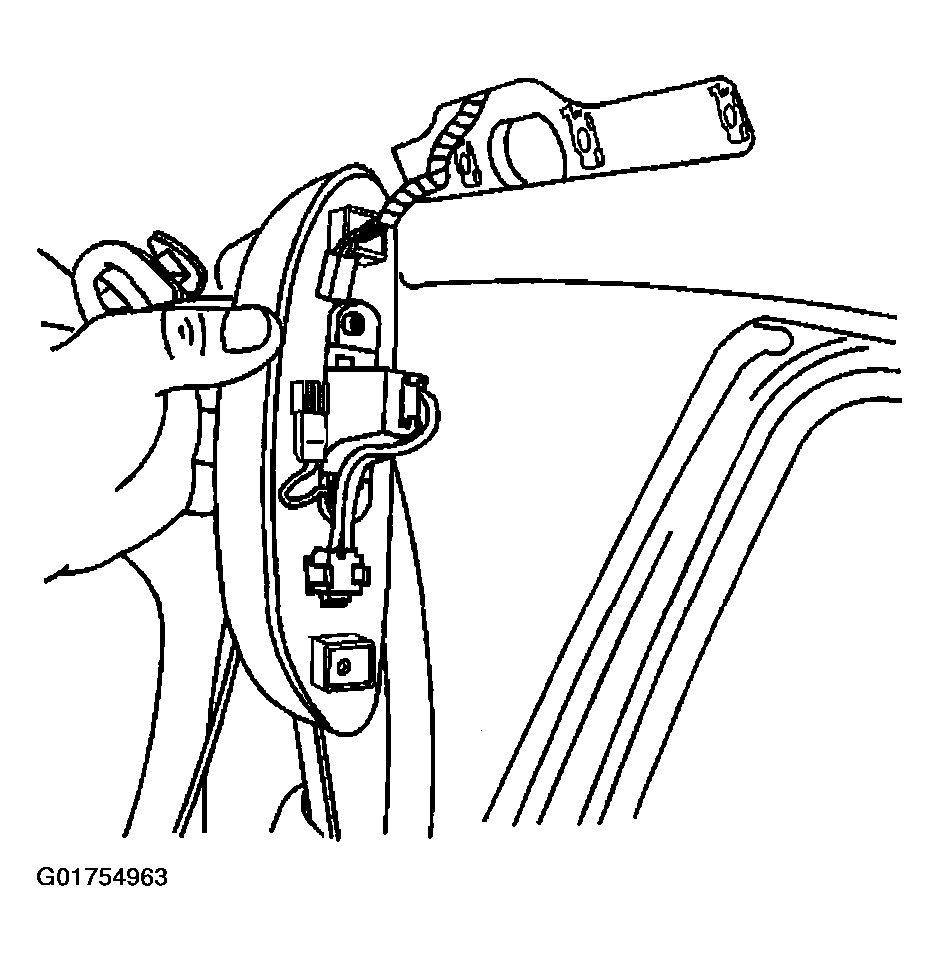

Fig 2: Removing Side Rail Lamp/Assist Handle
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the side rail lamp on the assist handle.

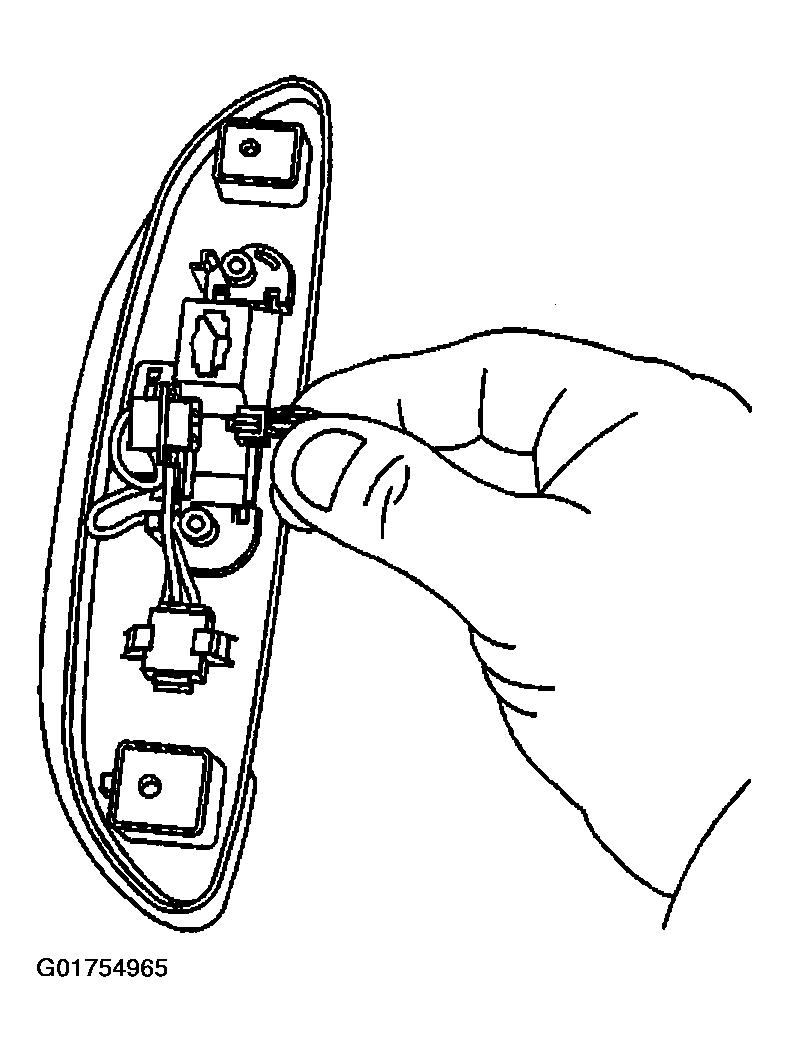

Fig 3: Identifying Side Rail Lamp Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the socket from the side rail lamp housing.

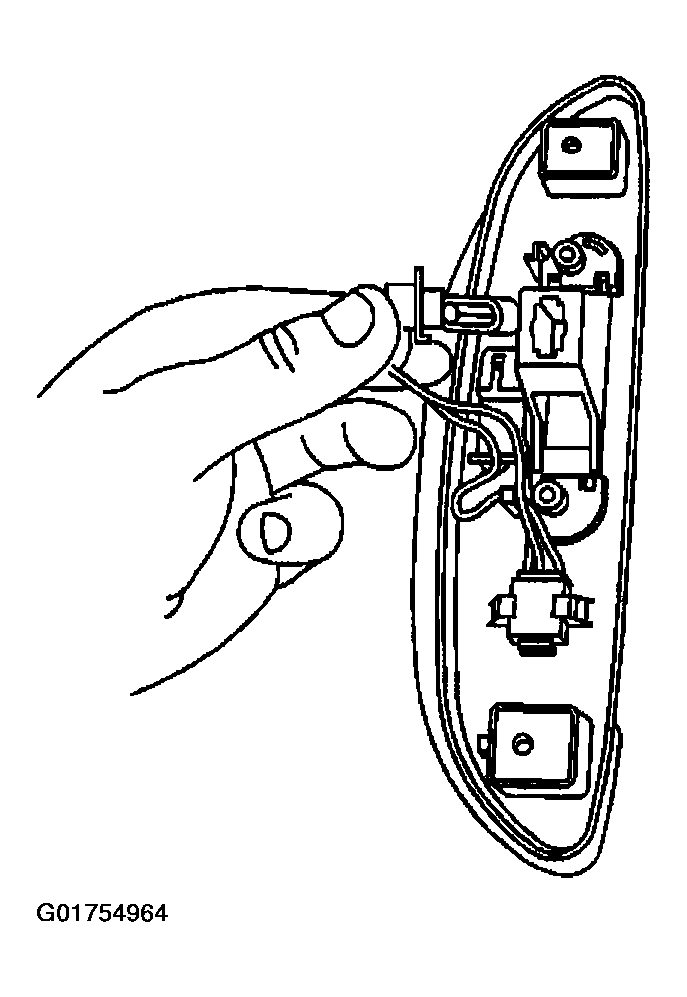

Fig 4: Identifying Side Rail Lamp Housing Socket
Courtesy of GENERAL MOTORS CORP.
Remove the bulb from the socket.

Fig 5: Identifying Side Rail Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
