Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia deflector. Refer to Front Bumper Fascia Deflector Replacement - Side .
  2. Disconnect the electrical connector from the front fog lamp bulb/socket.

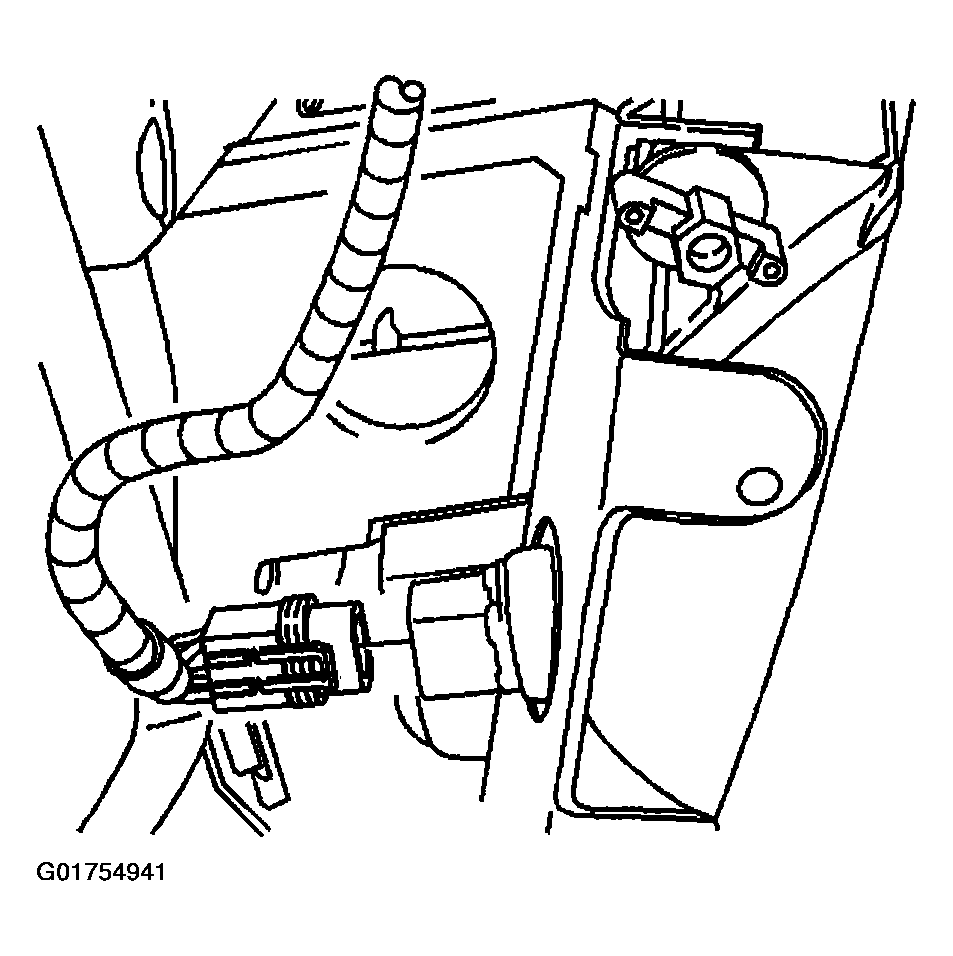

    Fig 1: Identifying Front Fog Lamp Assembly Electrical Connector
    G01754941Courtesy of GENERAL MOTORS CORP.
    CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying glass fragments. To help avoid personal injury:
    • Turn off the lamp switch and allow the bulb to cool before changing the bulb.
    • Leave the lamp switch OFF until the bulb change is complete.
    • Always wear eye protection when changing a halogen bulb.
    • Handle the bulb only by its base. Avoid touching the glass.
    • Keep dirt and moisture off the bulb.
    • Properly dispose of the used bulb.
    • Keep halogen bulbs out of the reach of children.
  3. Rotate the front fog lamp bulb/socket counterclockwise to release.

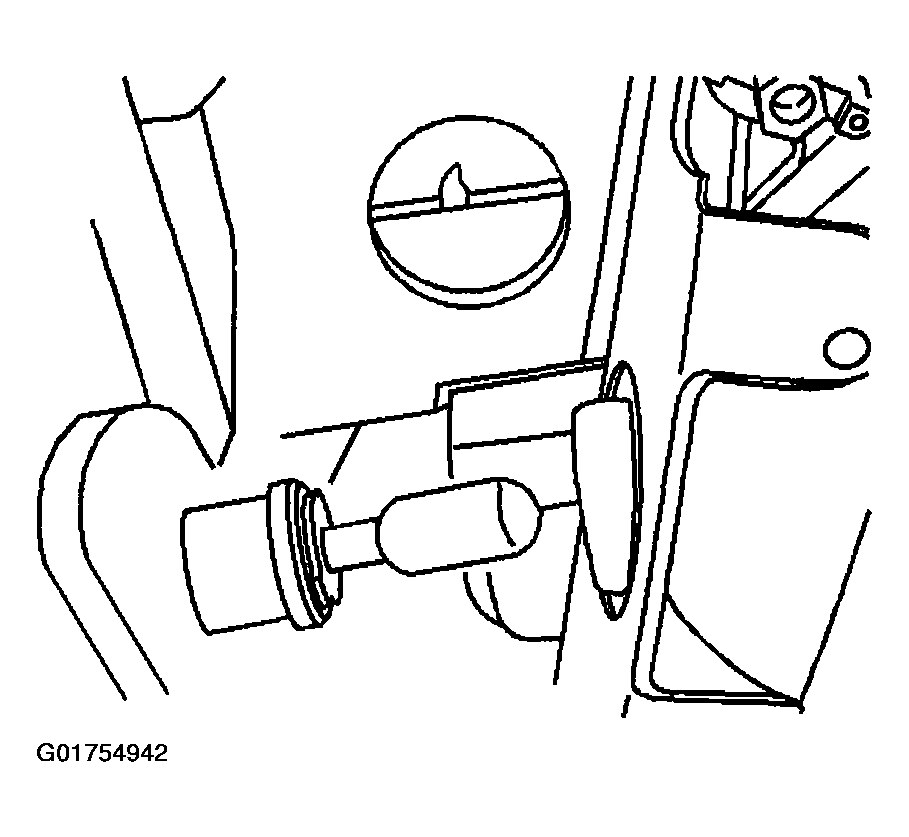

    4. Fig 2: Removing Fog Lamp Bulb/Socket From Fog Lamp
    G01754942Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp bulb/socket from the front fog lamp assembly.
