Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Squeeze together the front and rear edges of the dome lamp housing to release the retainers along the sides of the housing. Pull the housing down and away from the dome lamp base plate.
  2. Remove the bulb from the dome lamp socket.

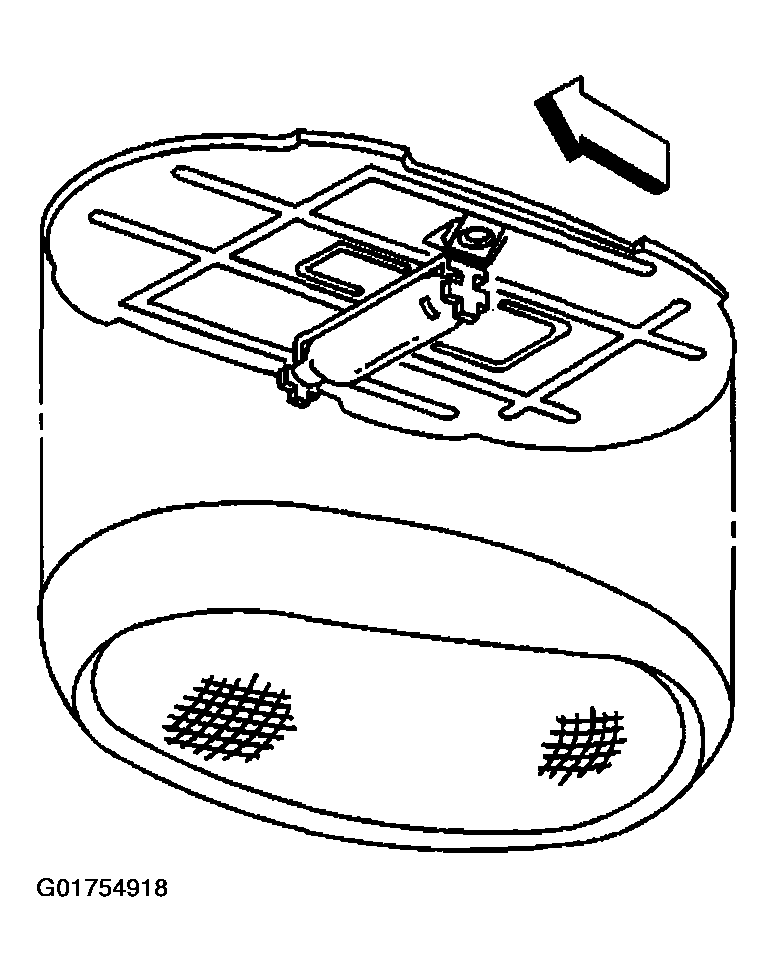

    Fig 1: Identifying Dome Lamp Housing
    G01754918Courtesy of GENERAL MOTORS CORP.
