Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the appropriate instrument panel (I/P) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Rotate the courtesy lamp socket counterclockwise. Remove the socket from the insulator.

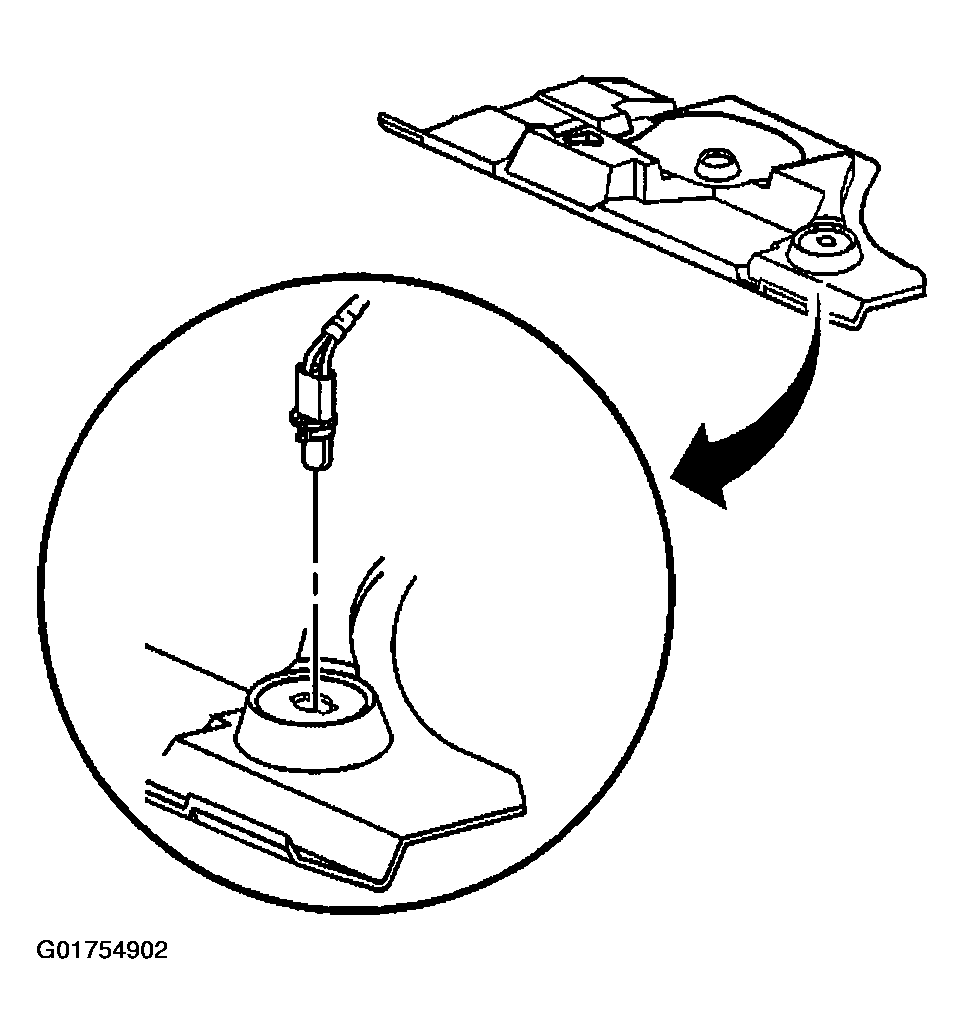

    3. Fig 1: Identifying Courtesy Lamp Socket
    G01754902Courtesy of GENERAL MOTORS CORP.
  3. Pull the bulb from the socket.
