Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) accessory trim plate. Refer to TRIM PLATE REPLACEMENT - I/P ACCESSORY in Instrument Panel, Gages, and Console.
  2. Rotate the socket clockwise. Pull the socket from the housing.
  3. Pull the bulb from the socket.

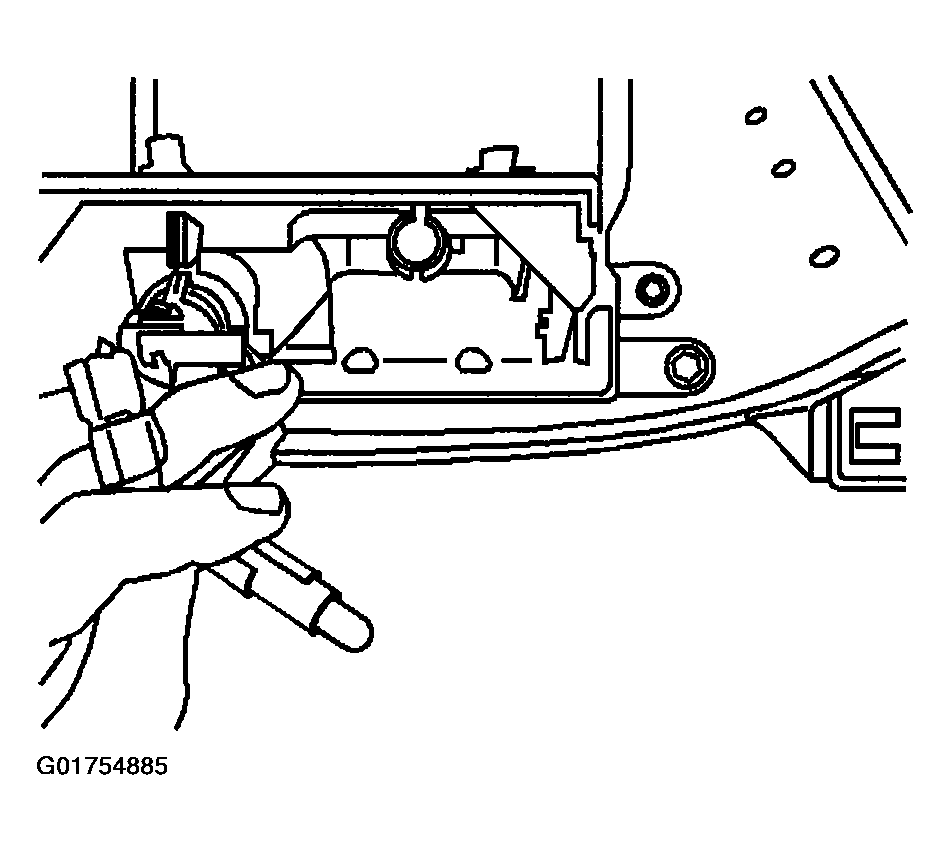

    Fig 1: Identifying Ashtray Lamp Bulb
    G01754885Courtesy of GENERAL MOTORS CORP.
