Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor rail (2) to the vehicle.
  2. Install the rear floor mat/carpet. Refer to MAT/CARPET REPLACEMENT - REAR FLOOR (PASSENGER MODELS) or MAT/CARPET REPLACEMENT - REAR FLOOR (CARGO MODELS) .
  3. Raise the vehicle and support the vehicle with safety stands.

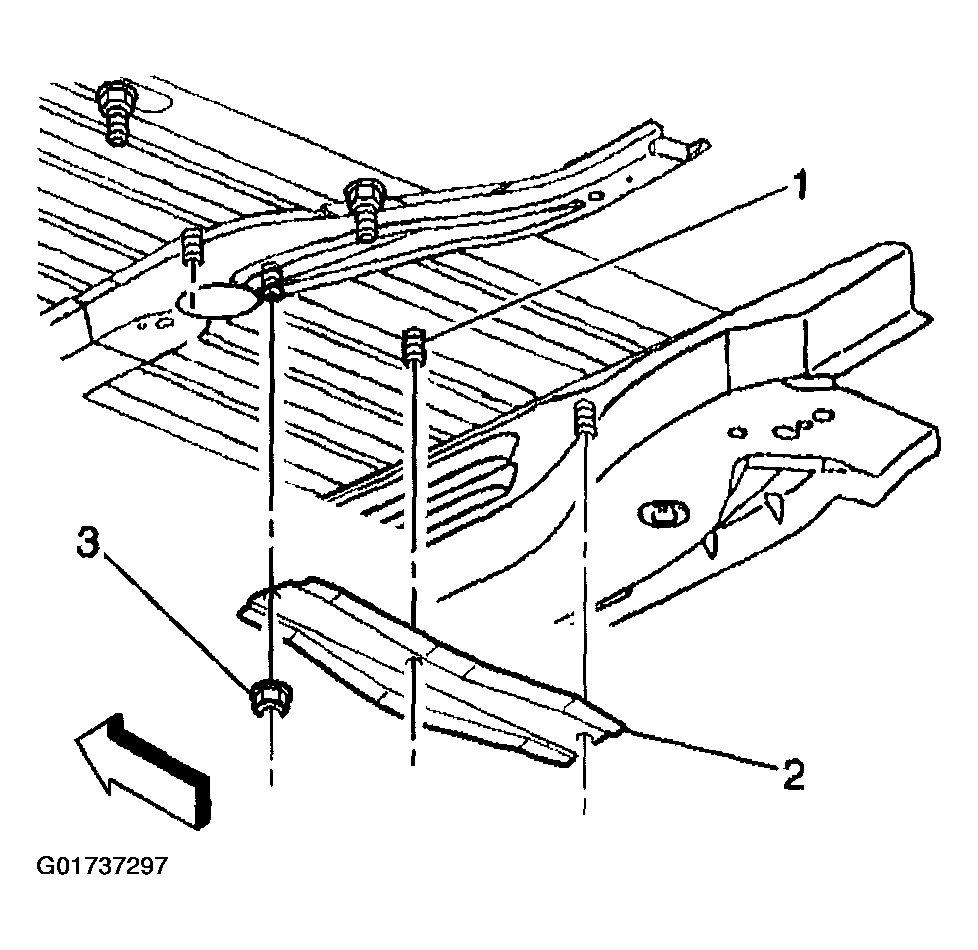

    Fig 1: Installing Floor Rail
    G01737297Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat track reinforcements to the seat track studs (12 and 15 Passenger).

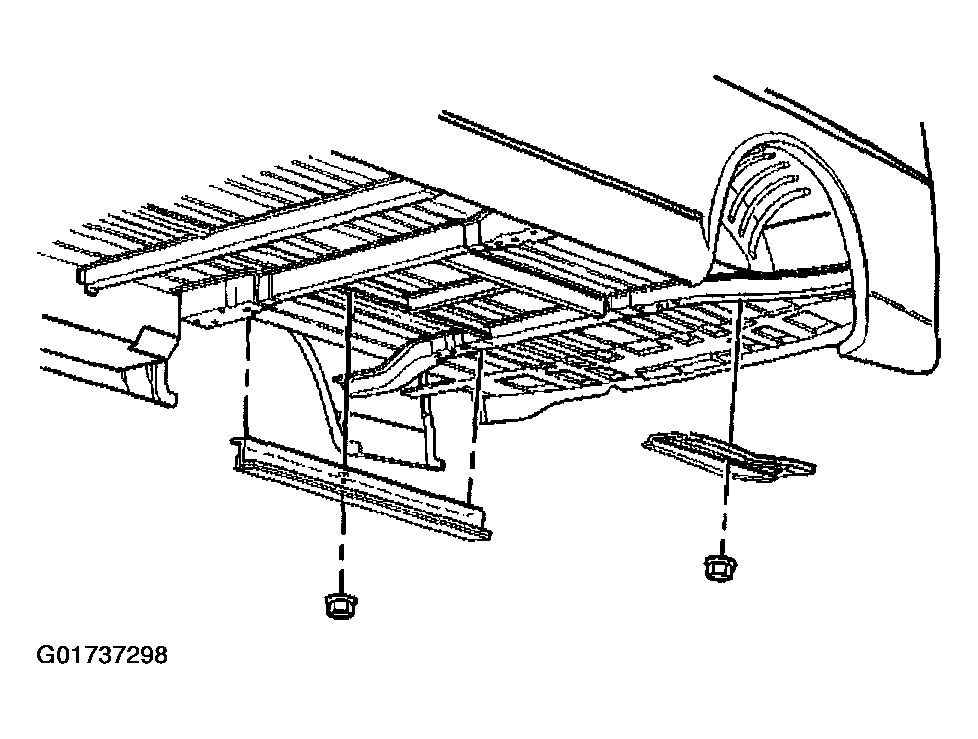

    Fig 2: Installing Rear Seat Track Reinforcements
    G01737298Courtesy of GENERAL MOTORS CORP.
  5. Inspect the nuts (3) in order to ensure that the sealer is intact.
  6. If the sealer is not intact, apply a medium bodied sealer to the nuts before installing.

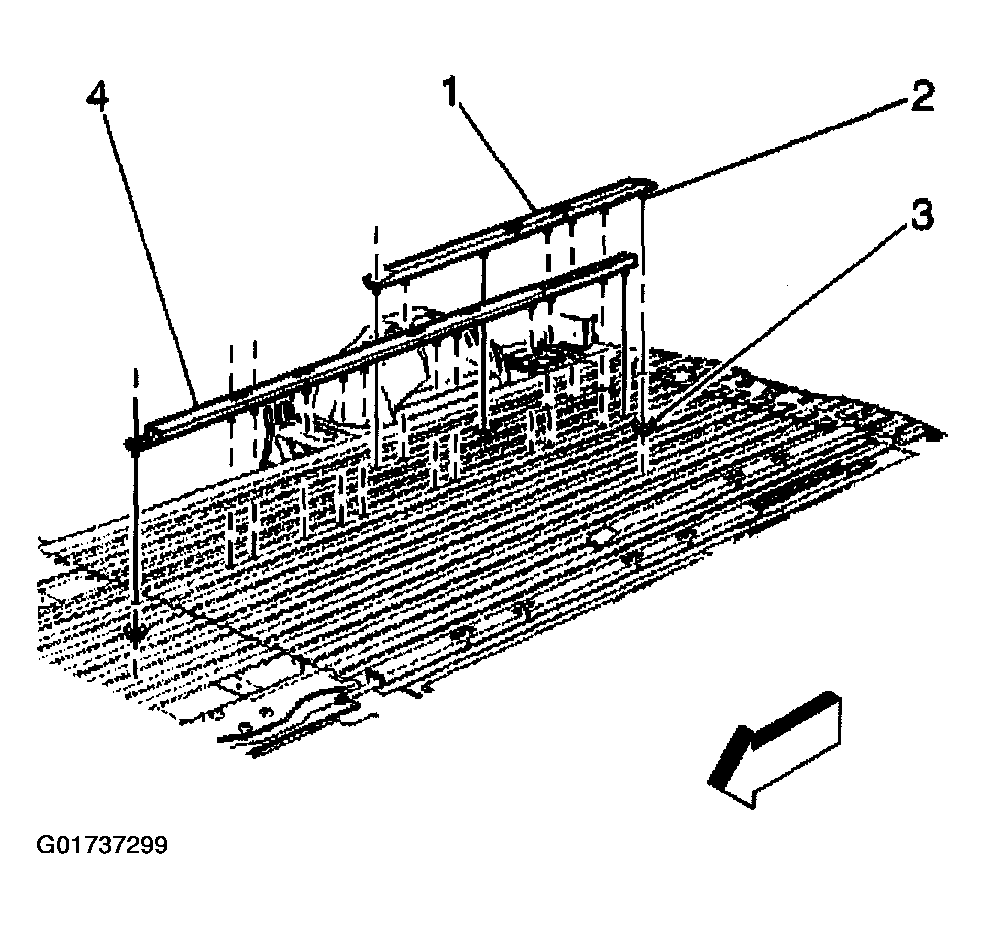

    Fig 3: Installing Nuts
    G01737299Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  7. Install the nuts in order to retain the floor rail to the floor of the vehicle.

    Tighten

    Tighten the nuts in order to retain the rear passenger seat floor rail to the floor of the vehicle to 43 N.m (32 ft lbs).

  8. Install the heat shields to the vehicle. Refer to EXHAUST HEAT SHIELD REPLACEMENT - BODY PANEL .
  9. Install the spare tire to the vehicle.
  10. Remove the safety stands.
  11. Lower the vehicle.

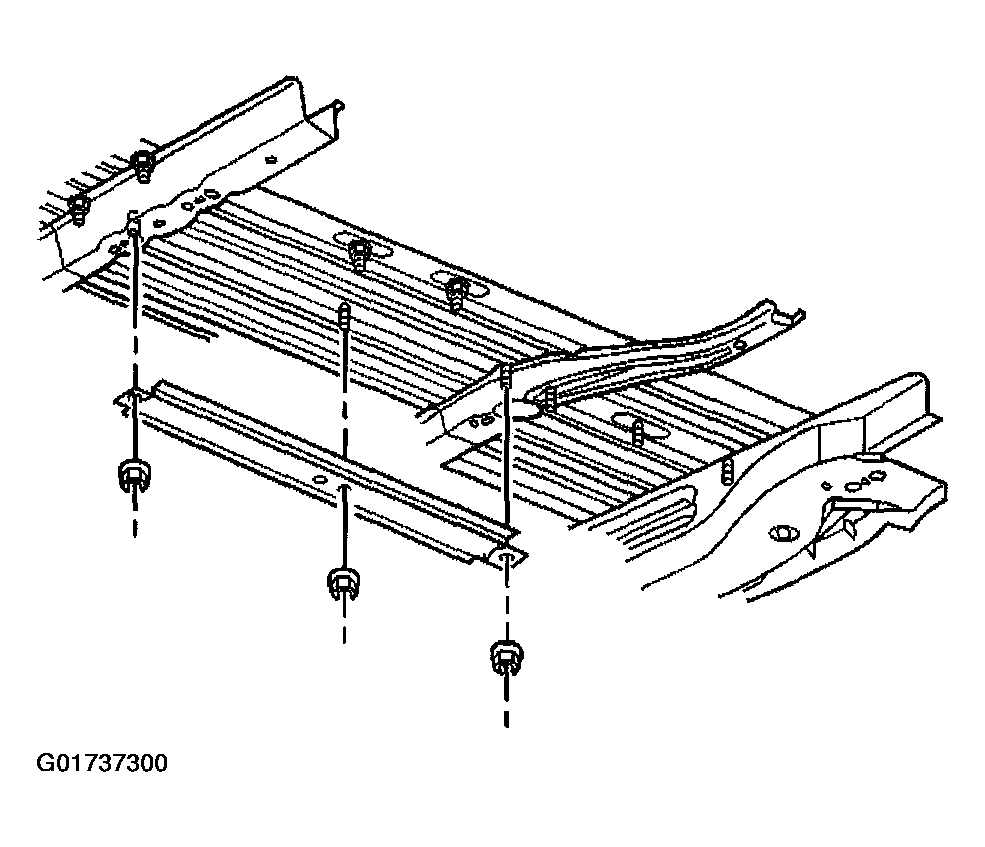

    Fig 4: Installing Nuts To Retain Floor Rail To Floor
    G01737300Courtesy of GENERAL MOTORS CORP.
  12. Install the rear passenger seats to the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)
