Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the power seat adjuster switch (5) to the seat cushion (1).
  2. Remove the power seat adjuster switch from the seat cushion.
  3. Disconnect the electrical connector from the power seat adjuster switch.
  4. Remove the power seat adjuster switch from the vehicle.

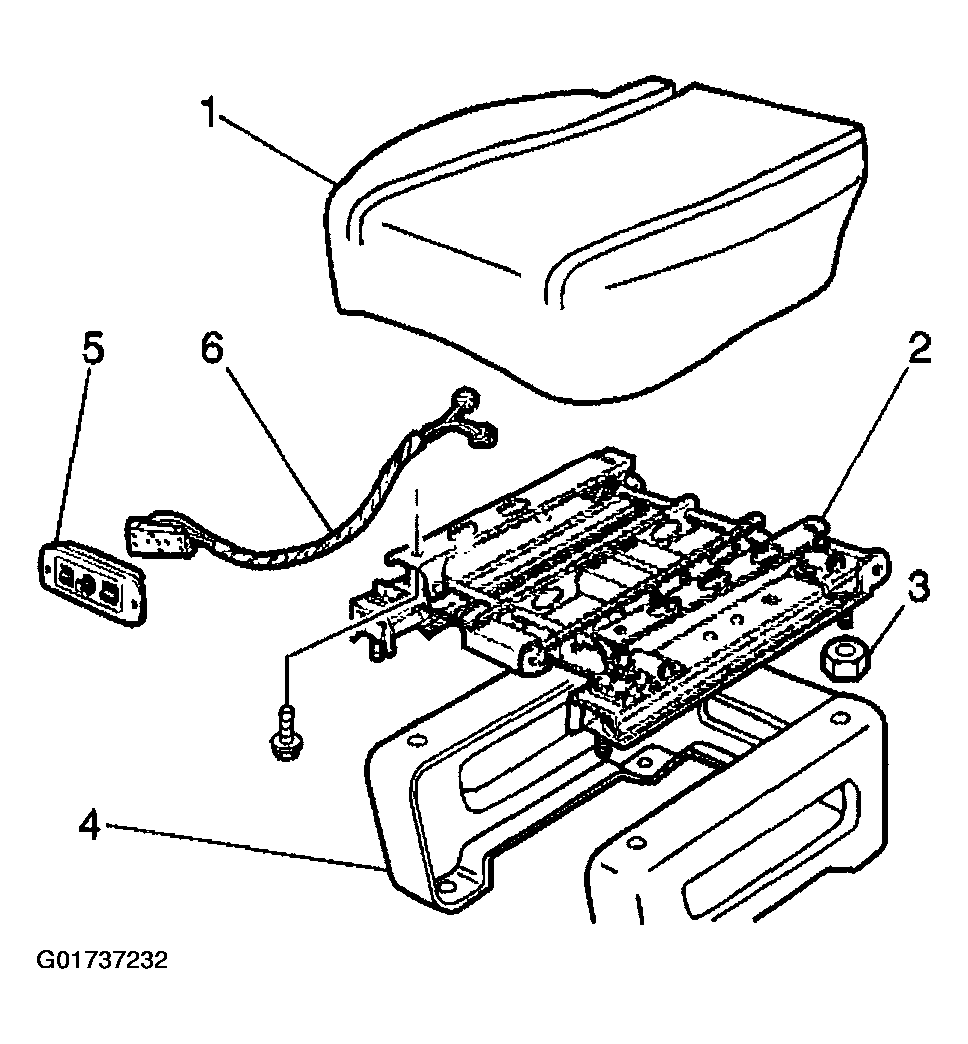

Fig 1: Removing Seat Switch - Power
G01737232Courtesy of GENERAL MOTORS CORP.
