Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear passenger seat (1) from the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury)  or Seat Replacement - Rear Bench (Luxury Y91)  .

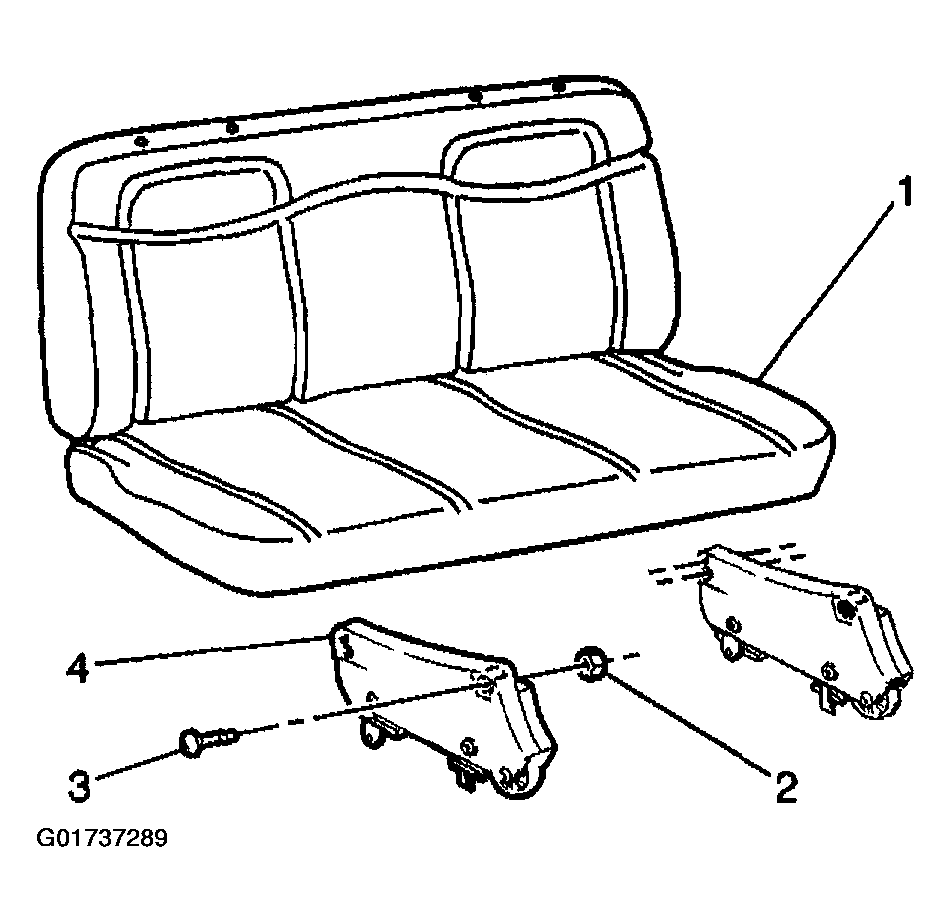

    Fig 1: Removing Rear Seat Riser
    G01737289Courtesy of GENERAL MOTORS CORP.
  2. Remove the nuts and the bolts that retain the seat riser to the seat cushion frame.
  3. Remove the seat riser from the seat cushion frame.
Fig 2: Removing Seat Riser From Seat Cushion Frame
G01737290Courtesy of GENERAL MOTORS CORP.
